Accessory and Brackets

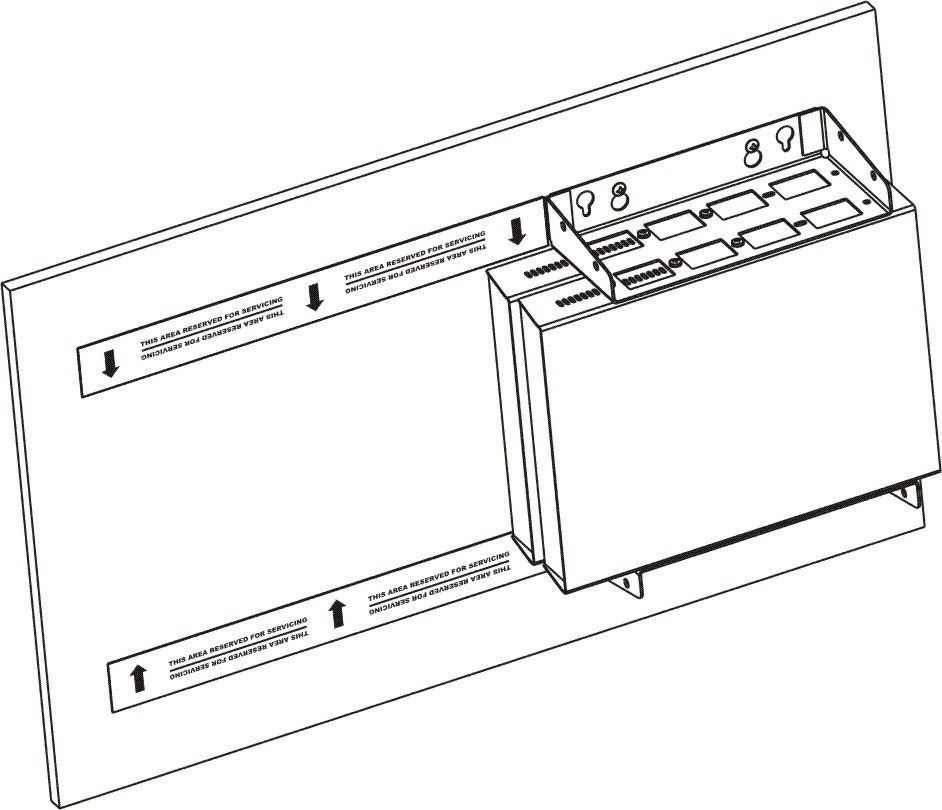

BK-AC02
WALL BRACKET, CANOGA 9145E’S, 2 UNITS
• The BK-AC02 is a kit containing two (2) brackets, hardware and labels for hanging up to two (2) Canoga™ 9145E’s on a wall.
• Powder coated steel designed for carrier class applications and environments.
• Labels supplied to reserve space for servicing.
Canoga® is a registered trademark of Canoga Perkins
spec sheet

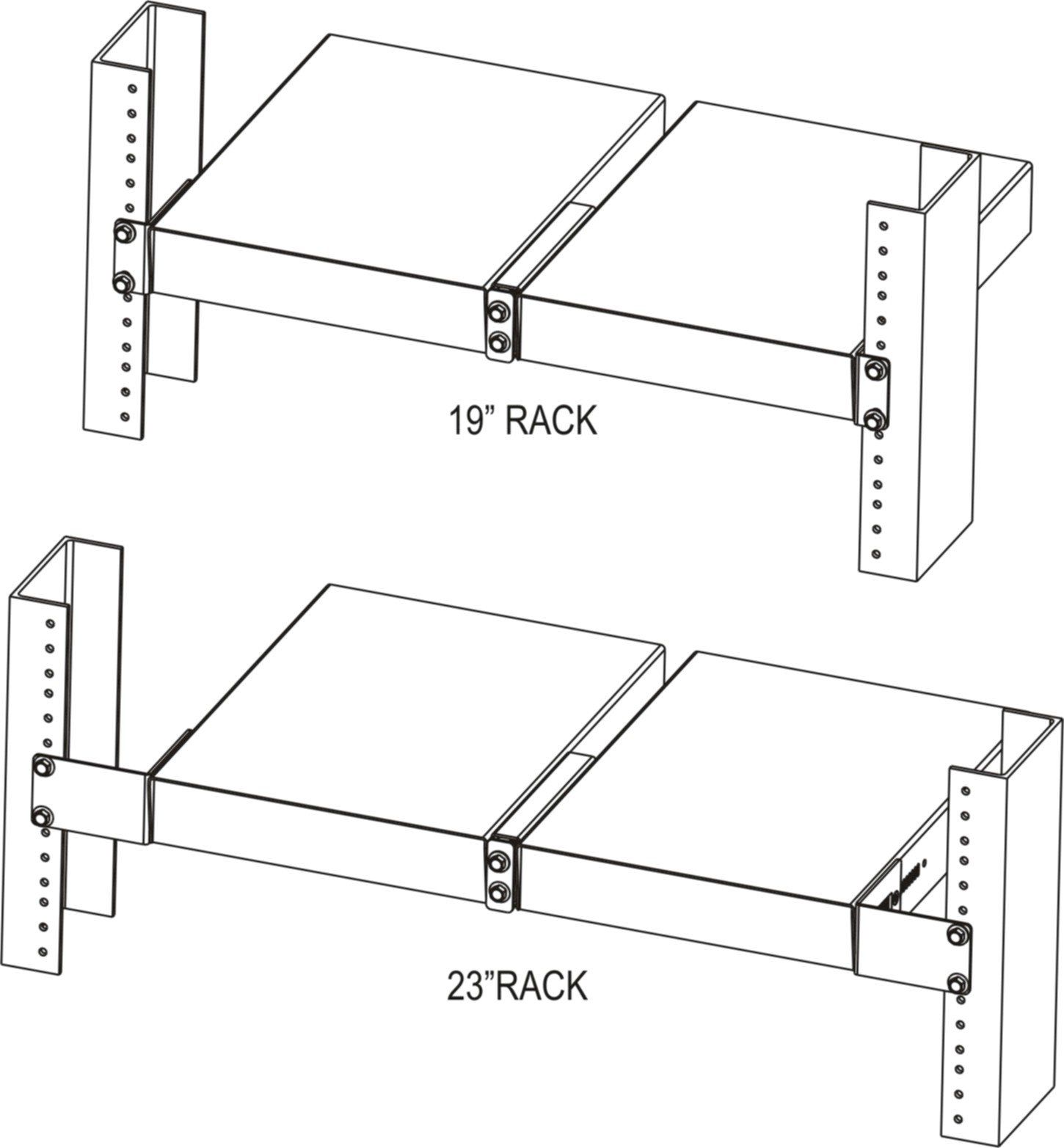

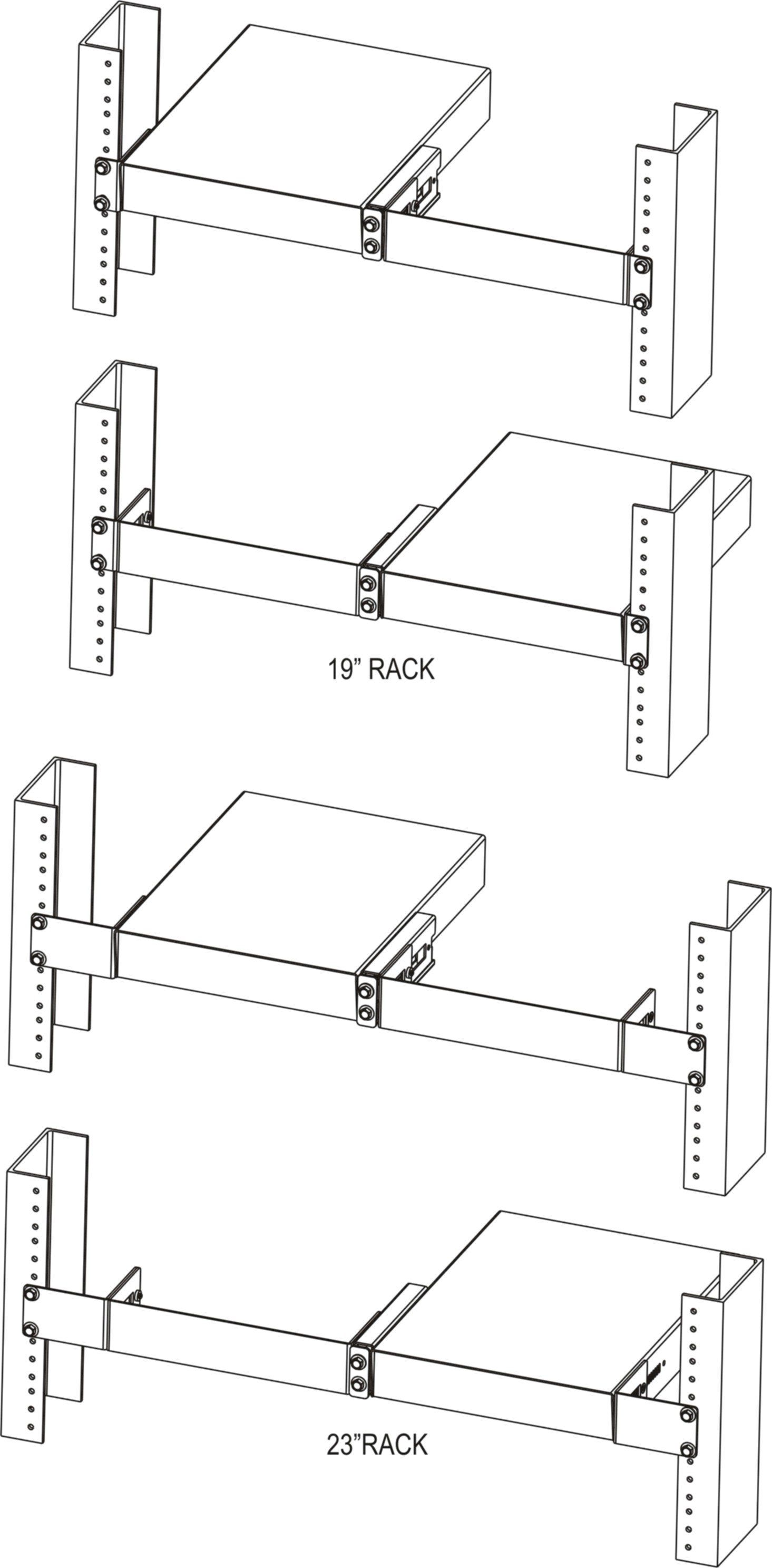

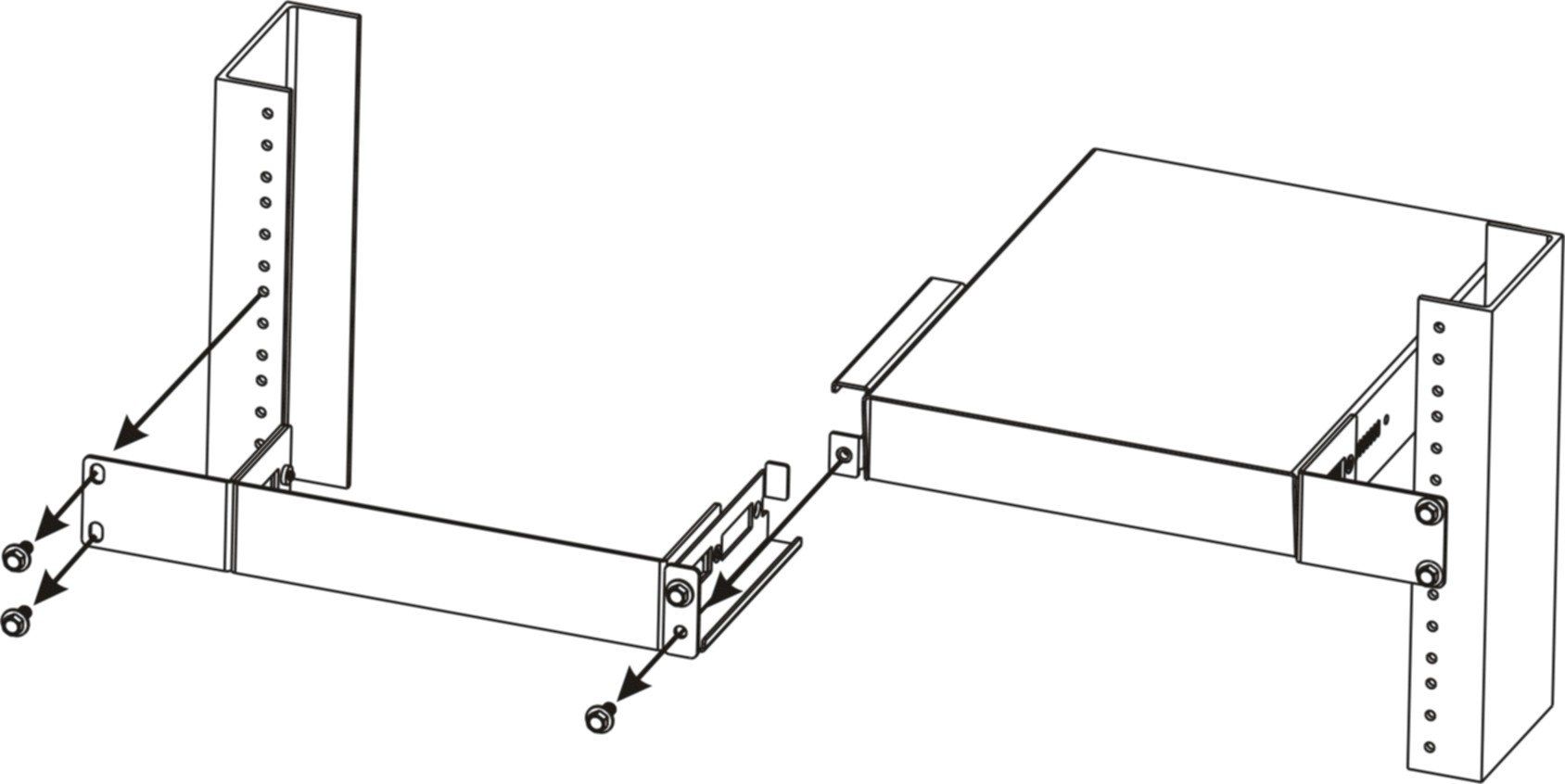

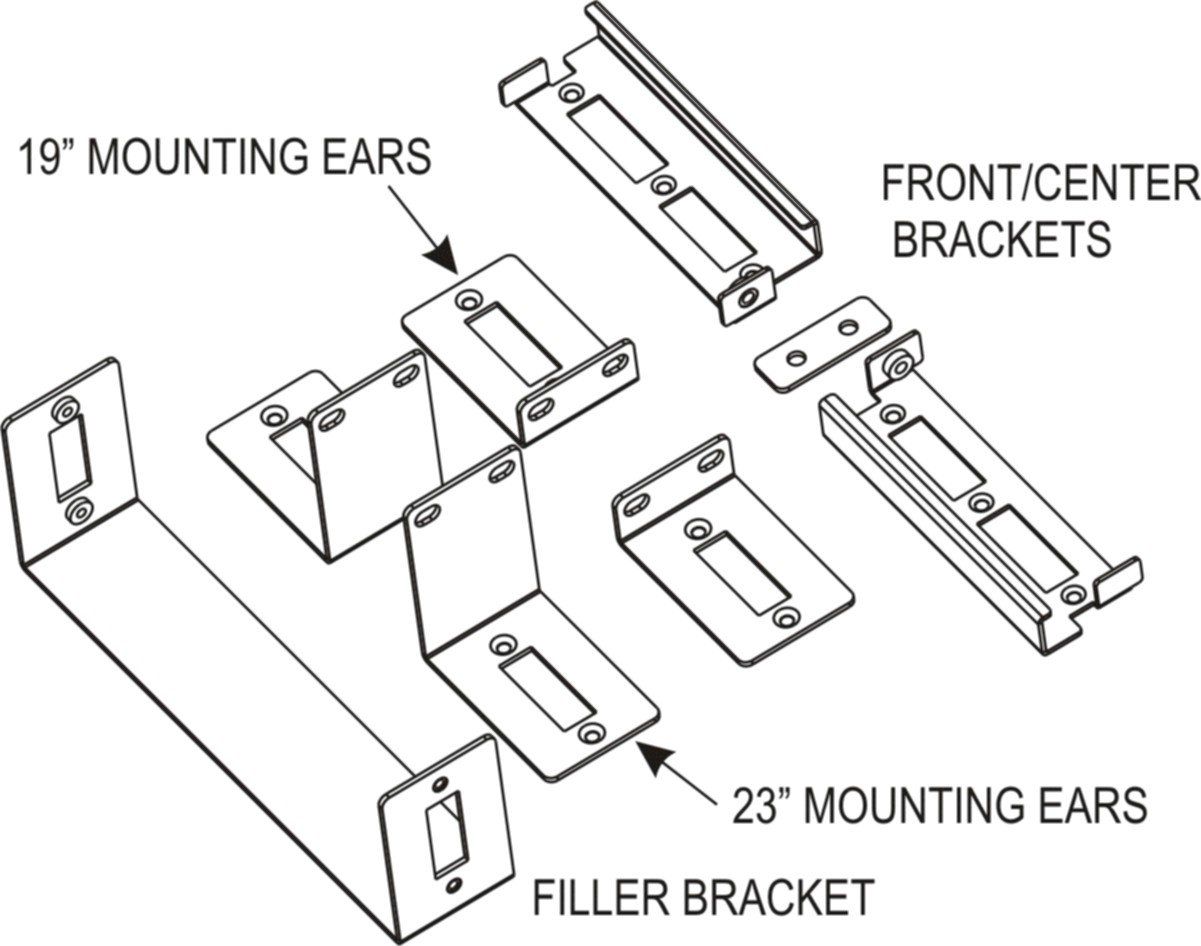

BK-AC03
RACK BRACKET, CANOGA 9145E’S, 1 OR 2 UNITS
• The BK-AC03 is a kit containing brackets and hardware for one (1) ortwo (2) Canoga™ 9145E’s in a 19” or 23” rack.
• Stainless steel designed for carrier class applications and environments.
• Several ways to install to meet each application.
• Easy to install second unit later without removing first unit.
Canoga® is a registered trademark of Canoga Perkins
spec sheet

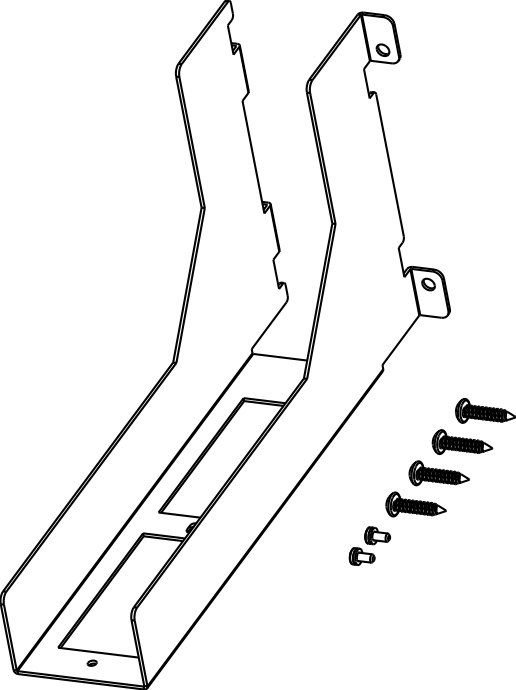

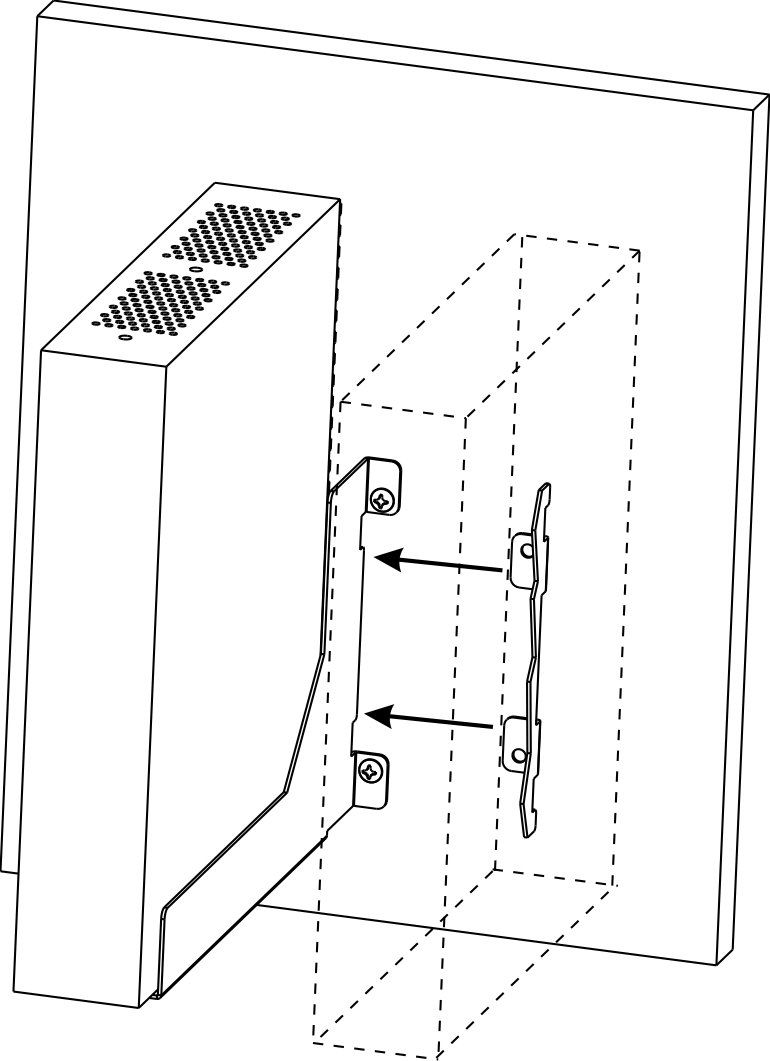

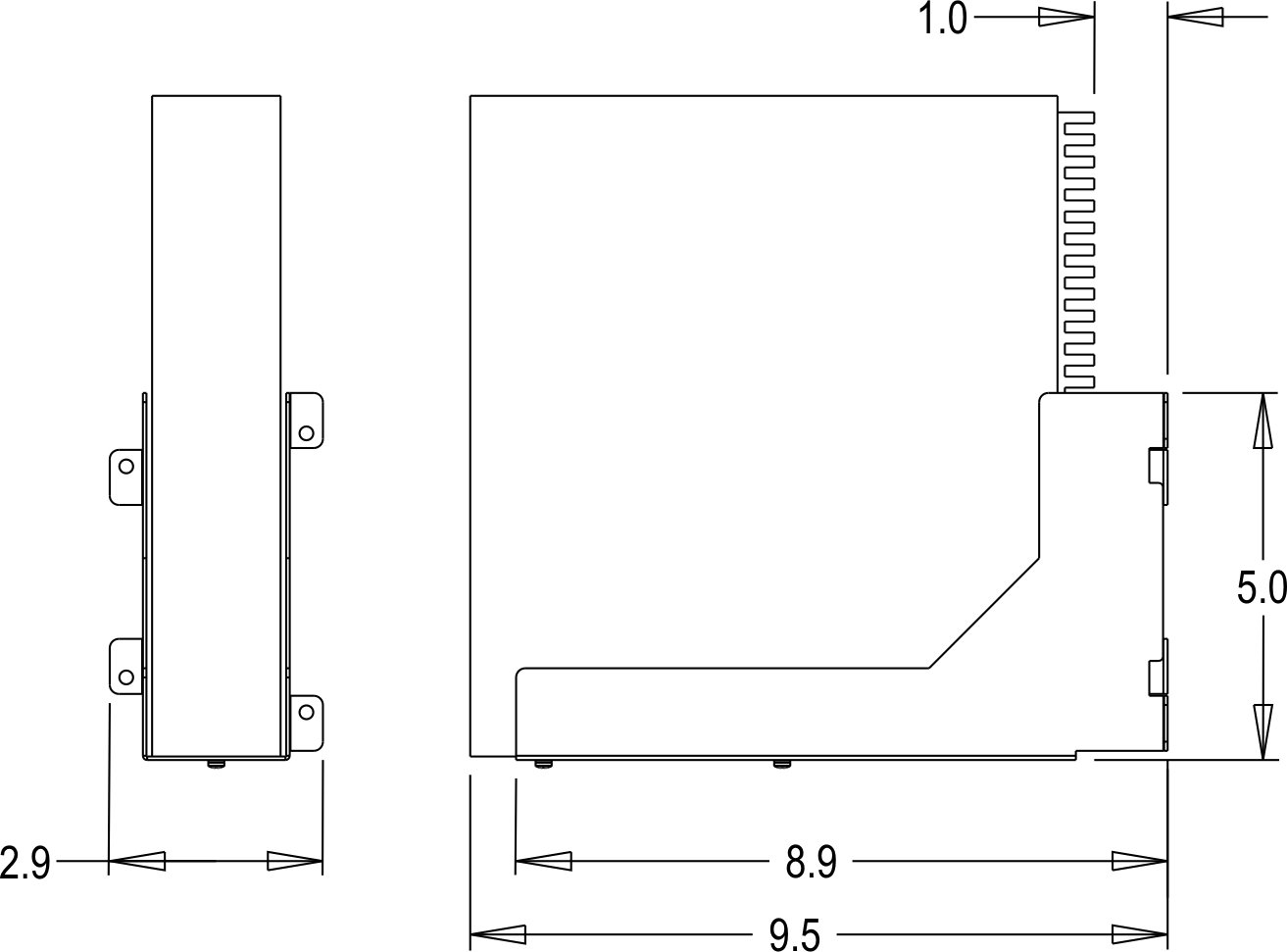

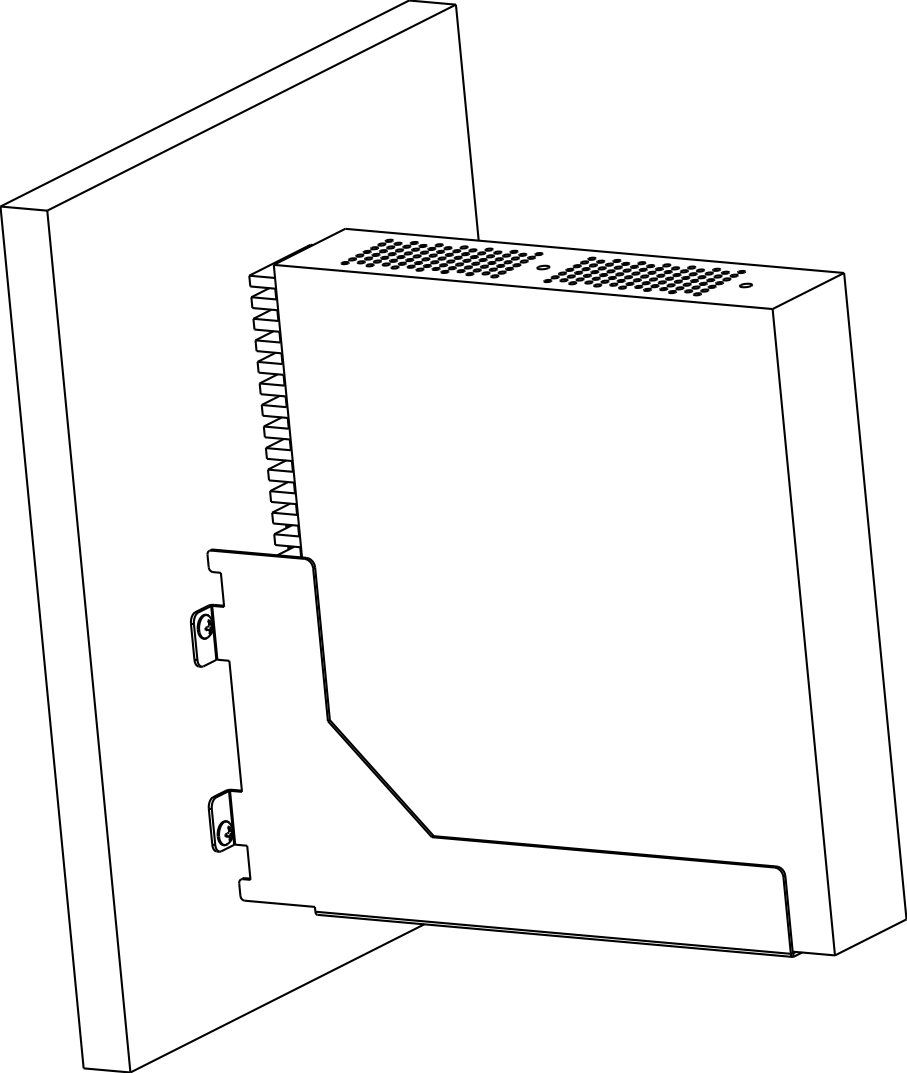

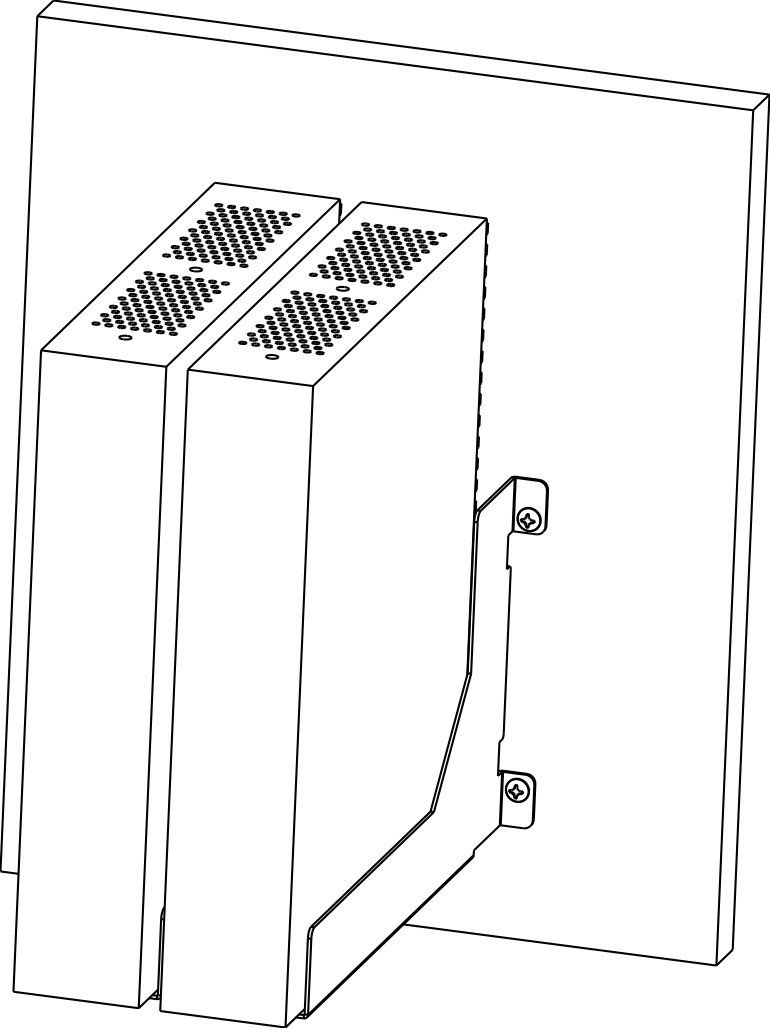

BK-AV01
WALL BRACKET, ADVA™ FSP150-GE114PRO, 1 UNIT VERTICAL
• The BK-AV01 is a kit containing a bracket and hardware for one (1) ADVA™ FSP150-GE114PRO vertically on a wall.
• Zinc plated steel designed for carrier class applications and environments.
• Easy to install second unit using less space with interlocking the brackets.
ADVA® is a registered trademark of ADVA Optical Networking
spec sheet

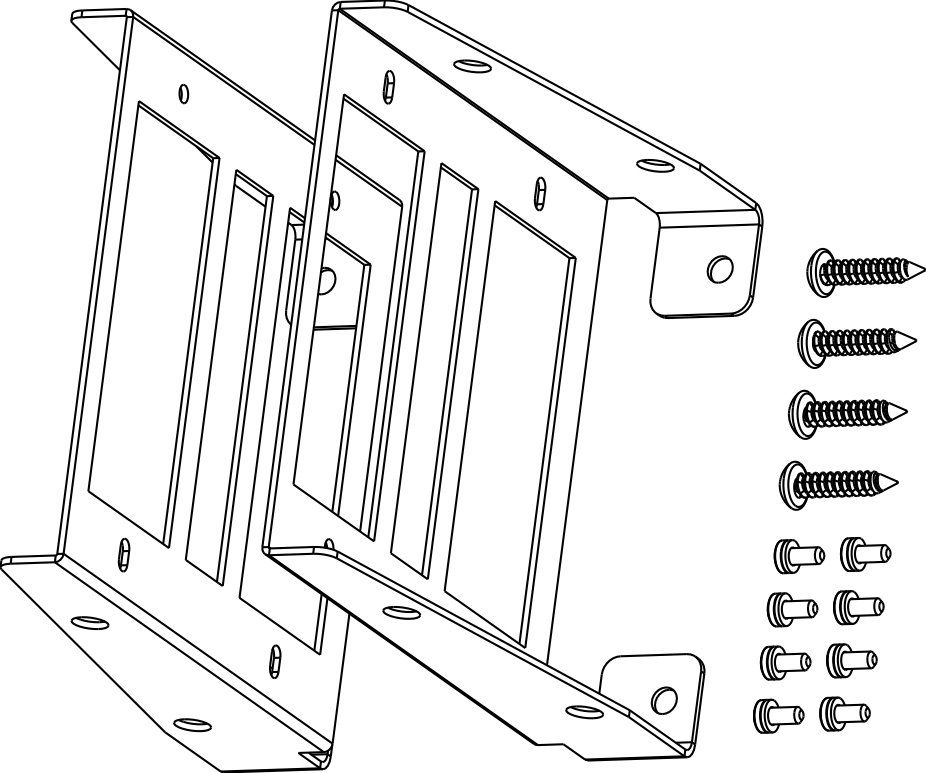

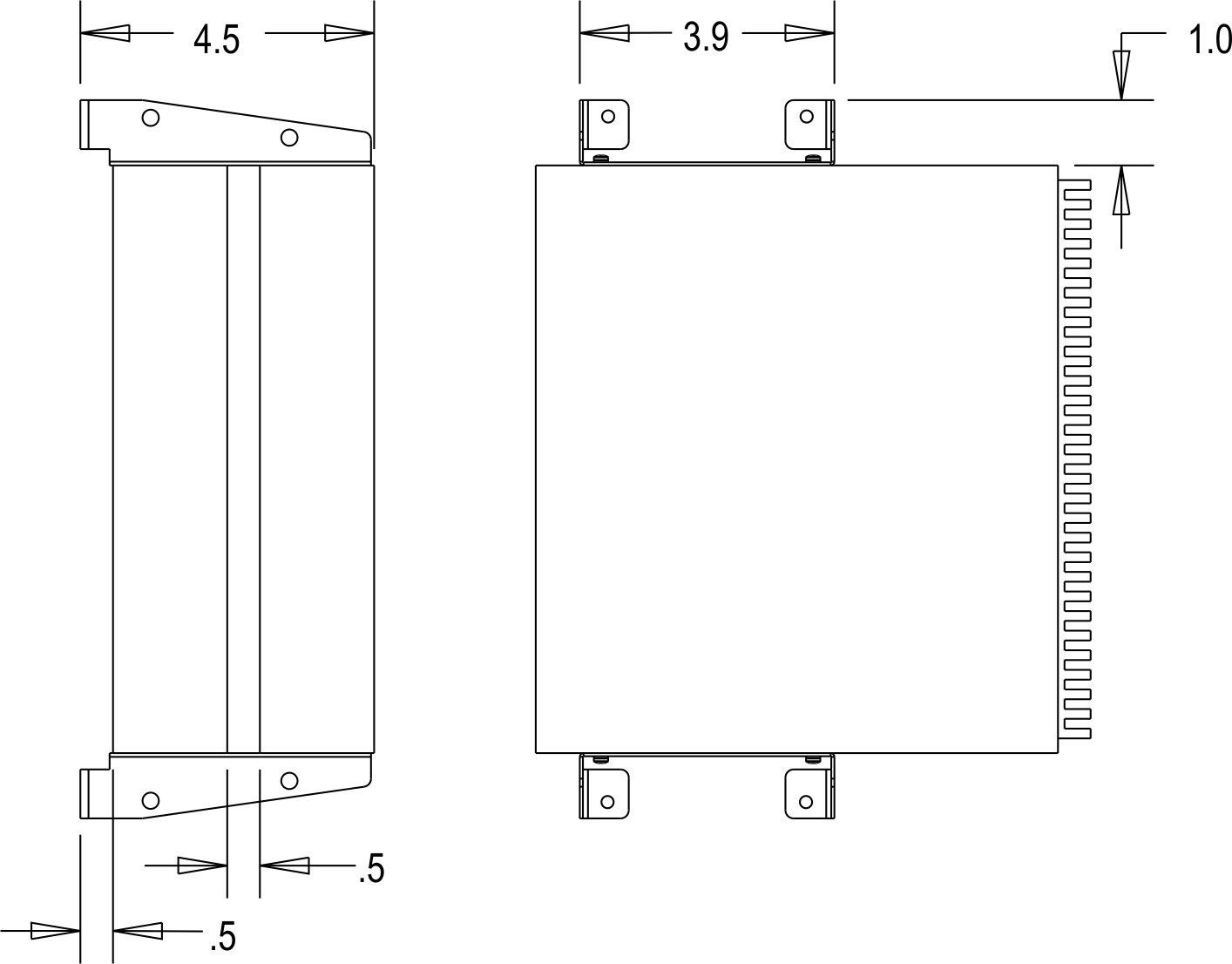

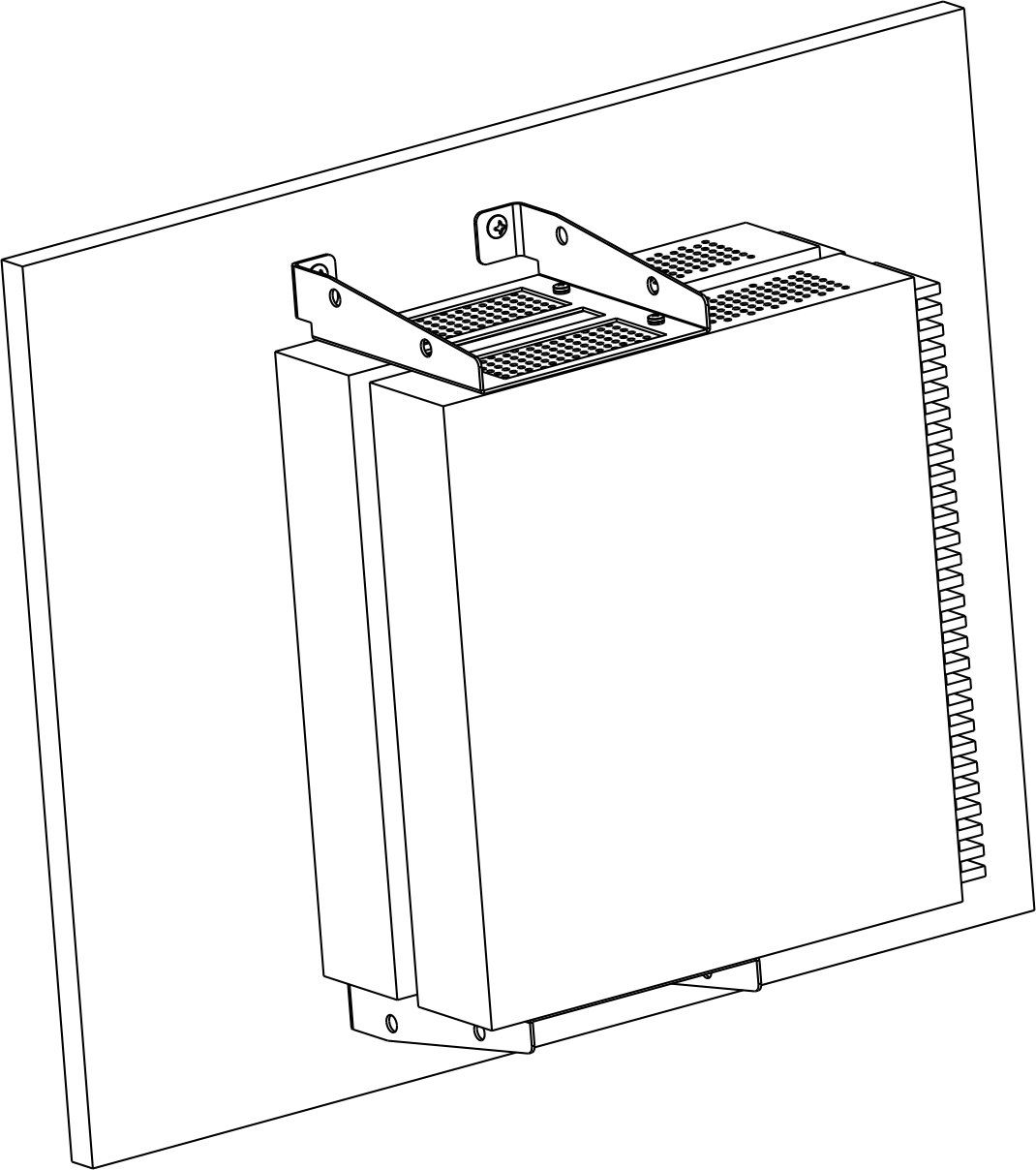

BK-AV02
WALL BRACKET, ADVA™ FSP150-GE114PRO, 2 UNITS
• The BK-AV02 is a kit containing two (2) brackets and hardware for hanging up to two (2) ADVA™ FSP150-GE114PROon a wall.
• Zinc plated steel designed for carrier class applications and environments.
• Compact size conserves wall space.
ADVA® is a registered trademark of ADVA Optical Networking
spec sheet

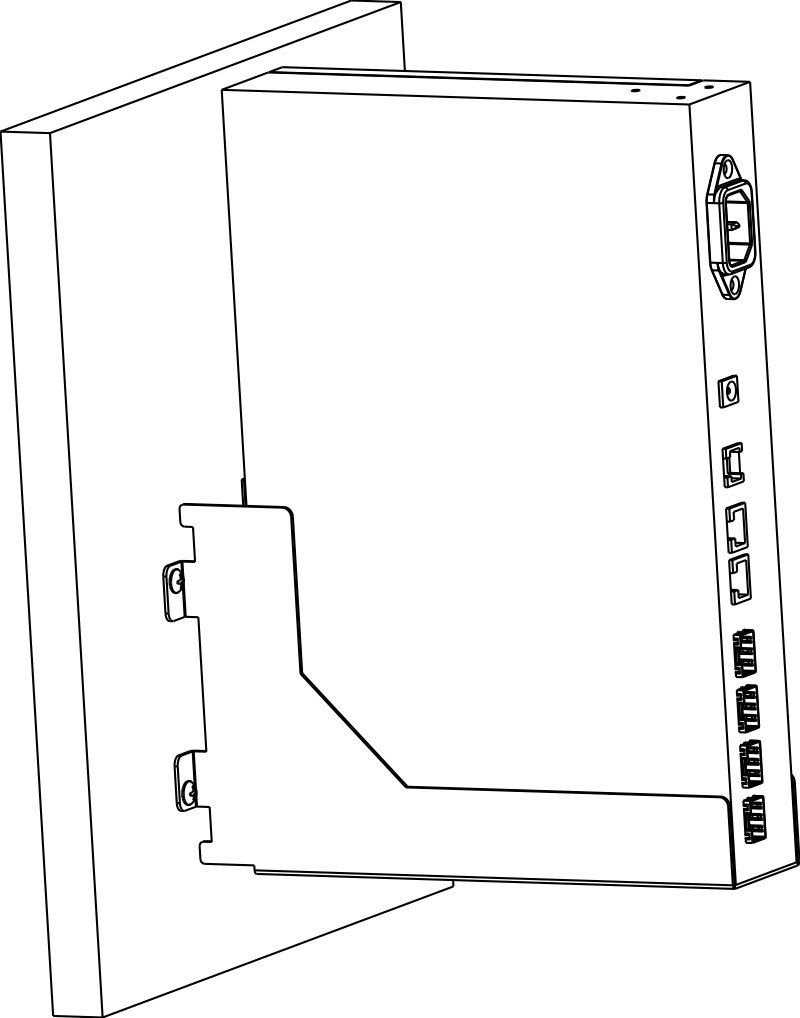

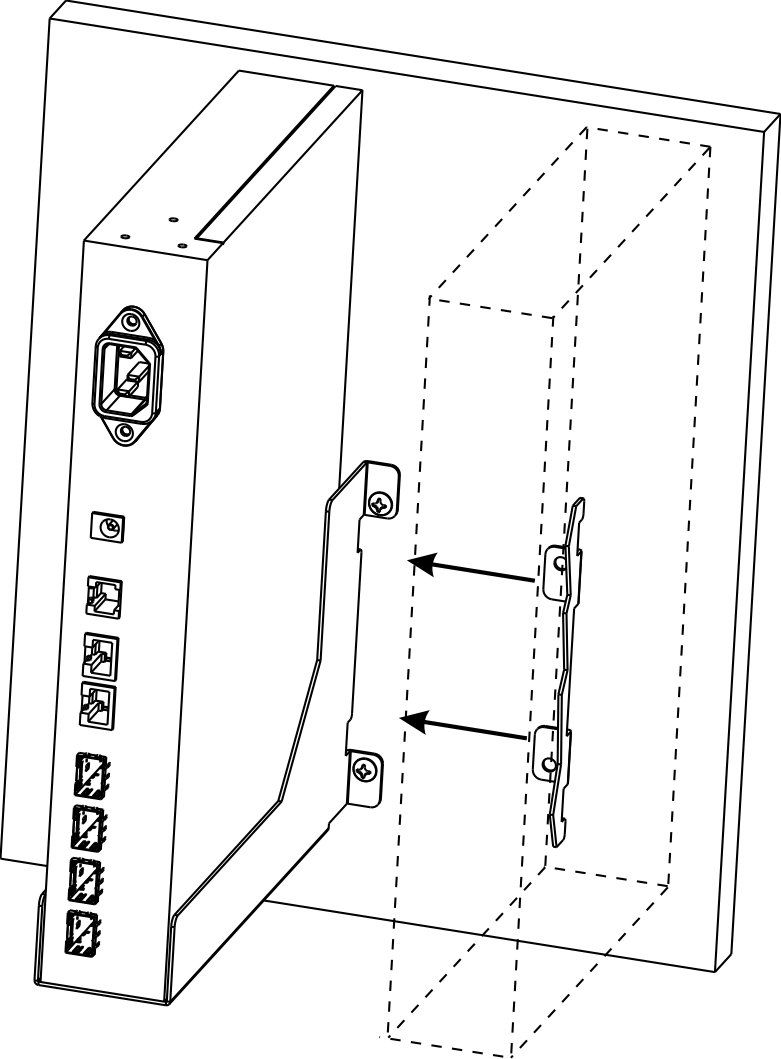

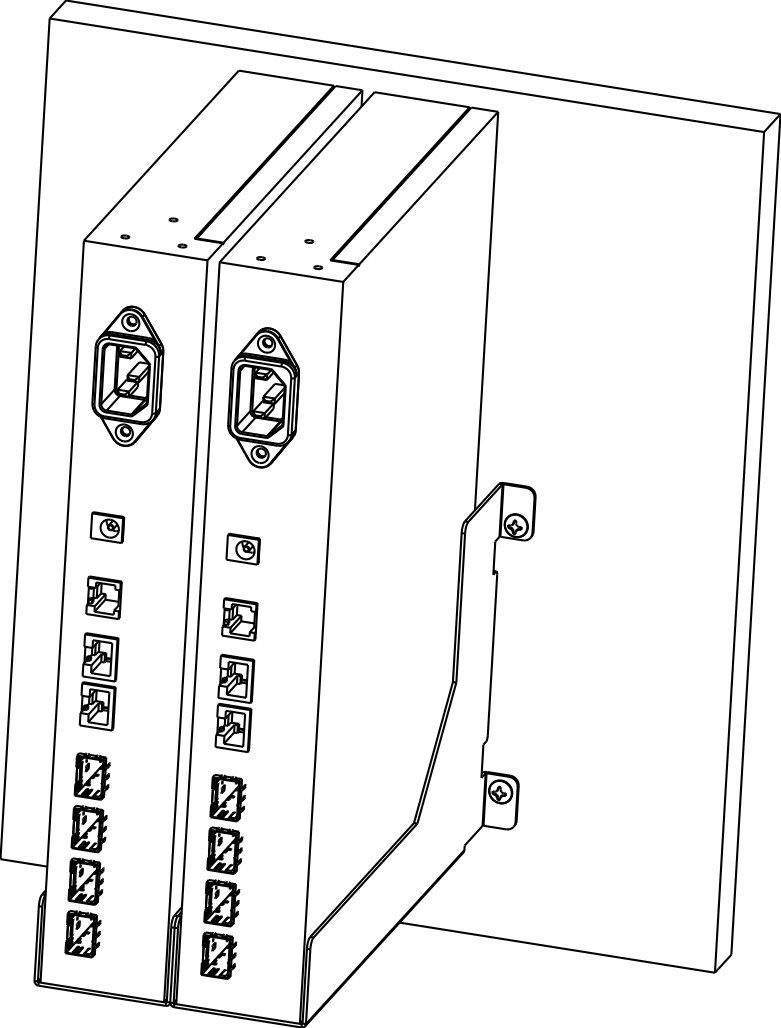

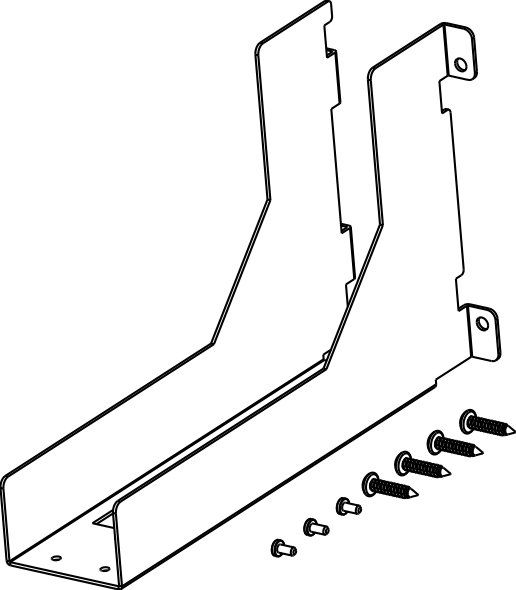

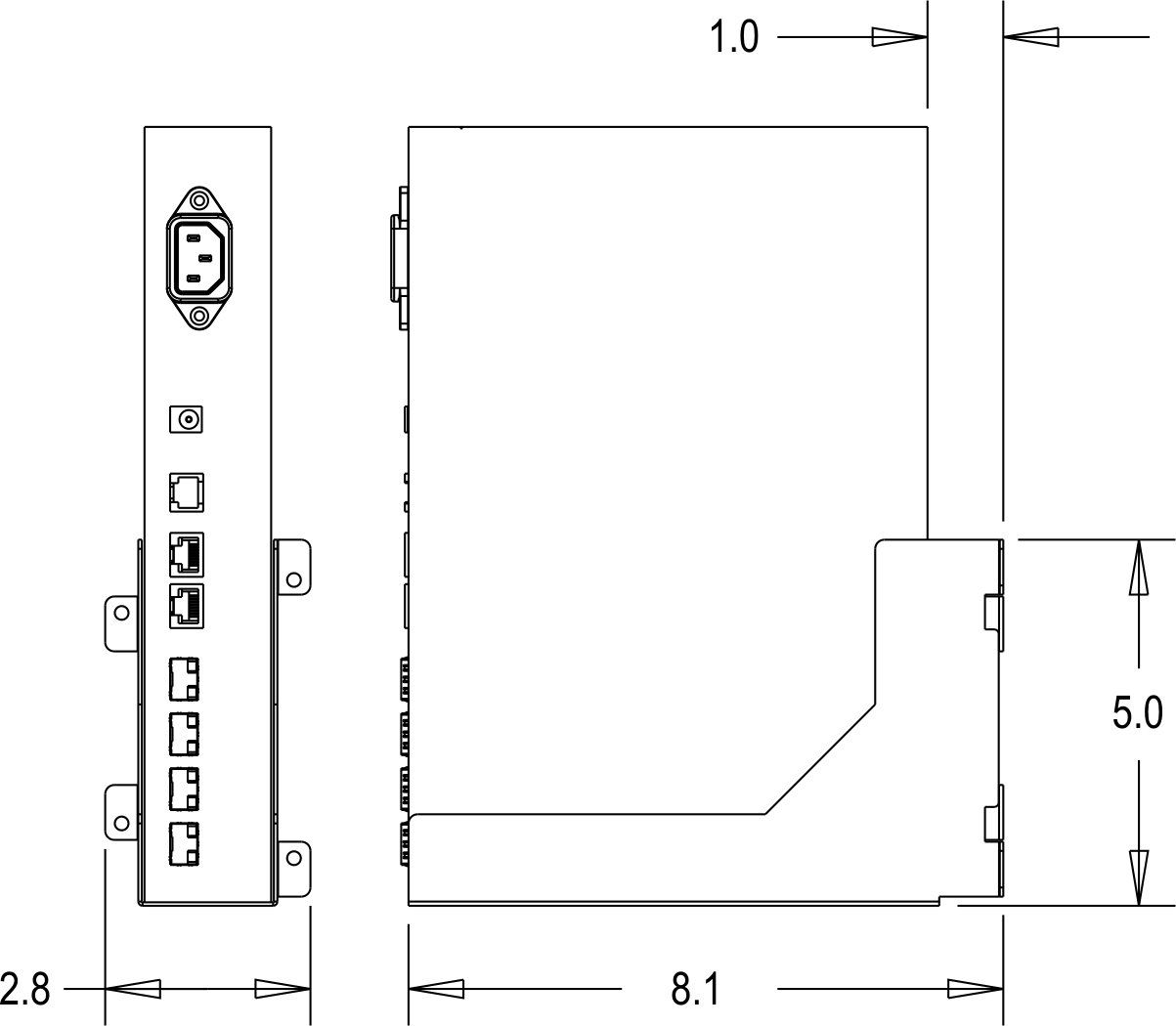

BK-ME01
WALL BRACKET, CISCO ME1200, 1 UNIT
• The BK-ME01 is a kit containing a bracket and hardware for one (1) CISCO™ ME1200 vertically on a wall.
• Zinc plated steel designed for carrier class applications and environments.
• Easy to install second unit using less space with interlocking the brackets.
Cisco® is a registered trademark of Cisco Systems
spec sheet

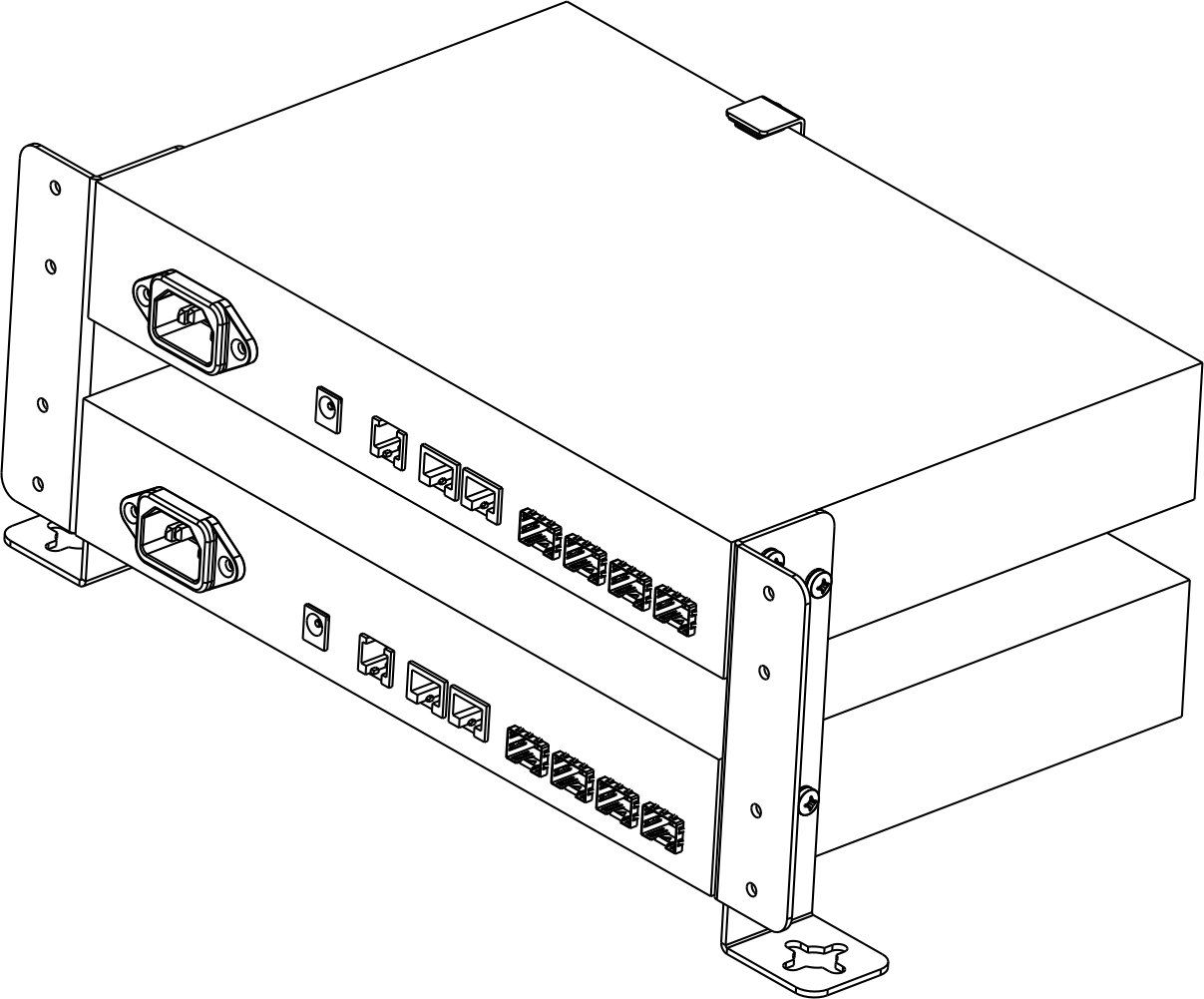

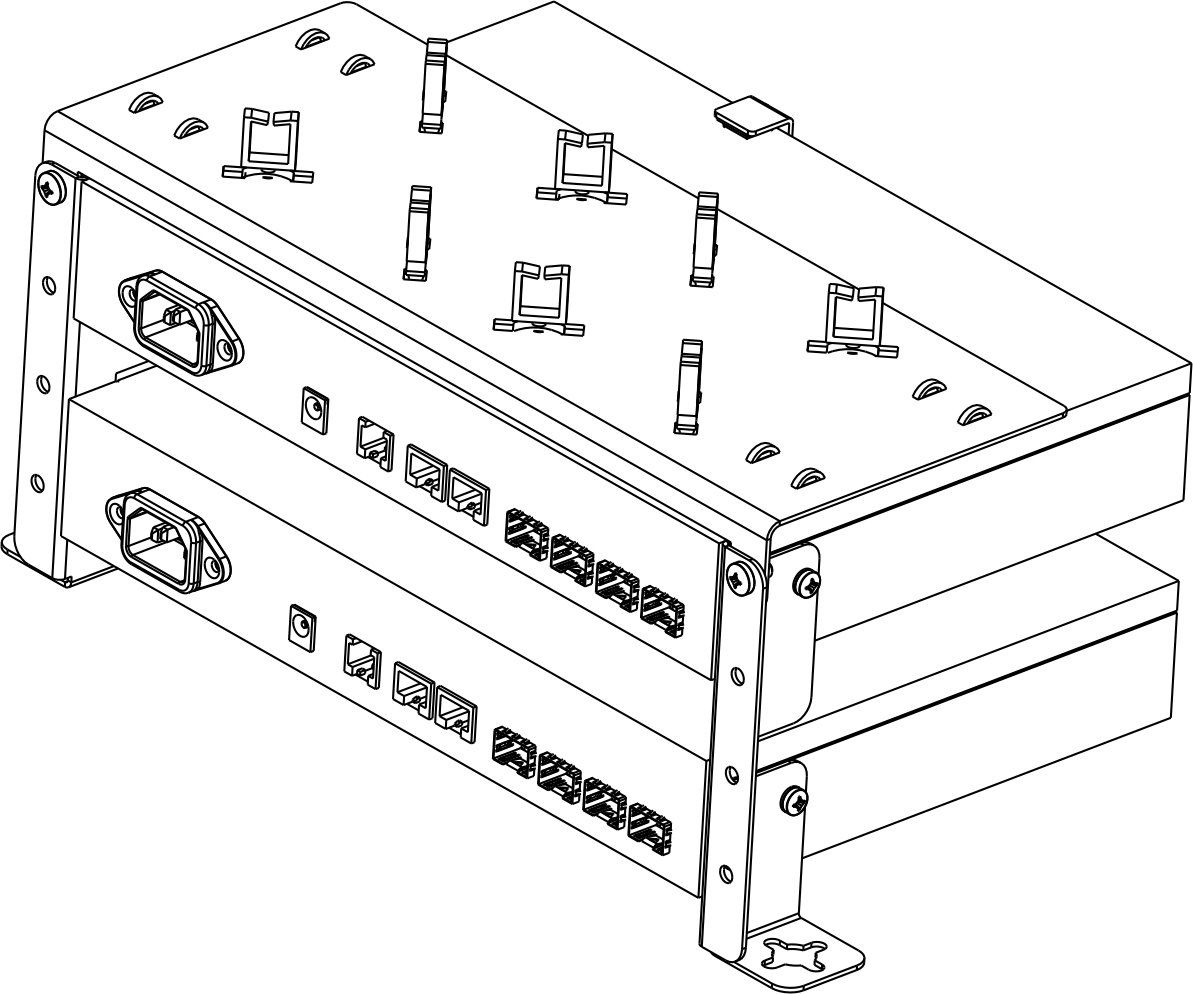

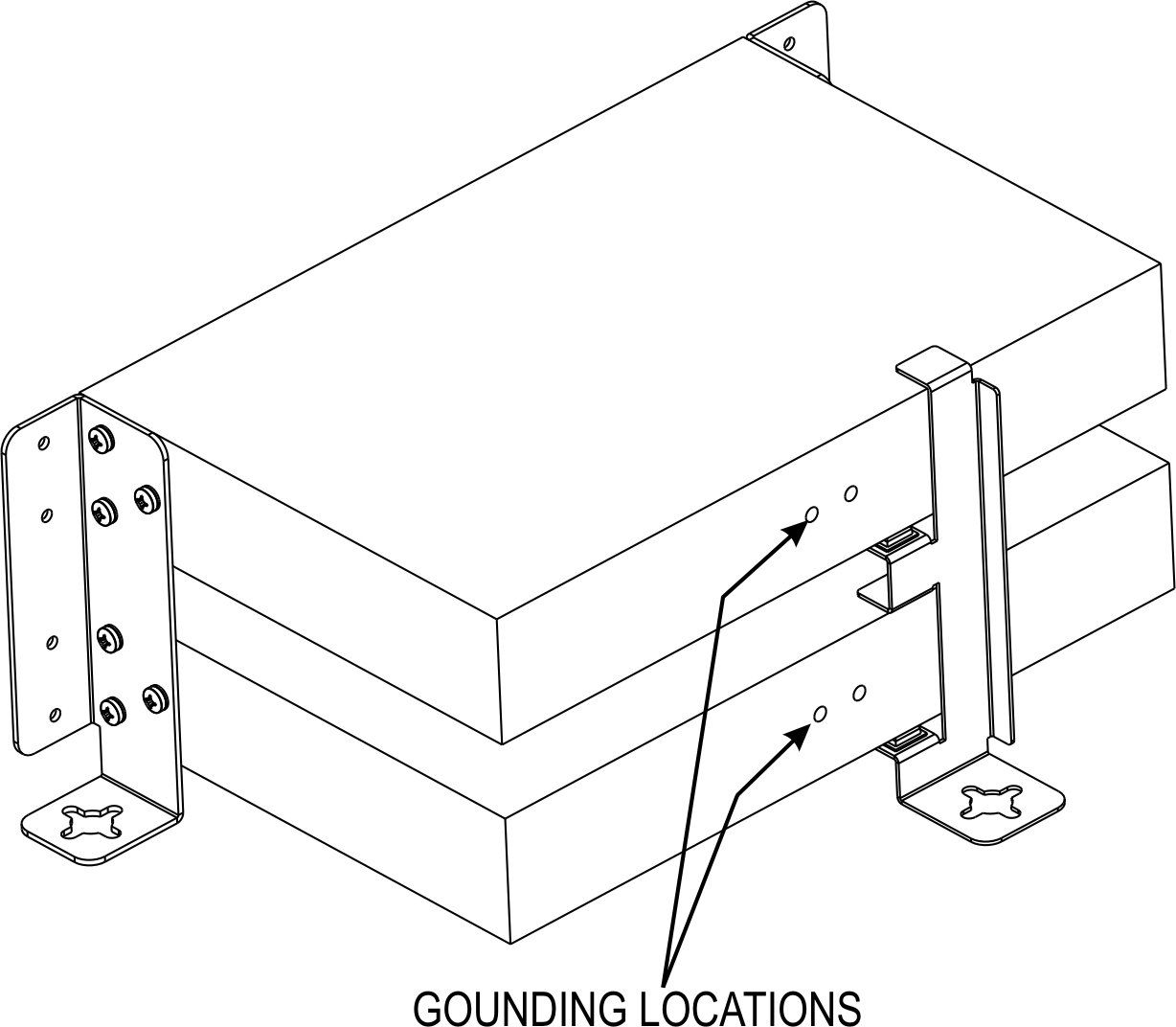

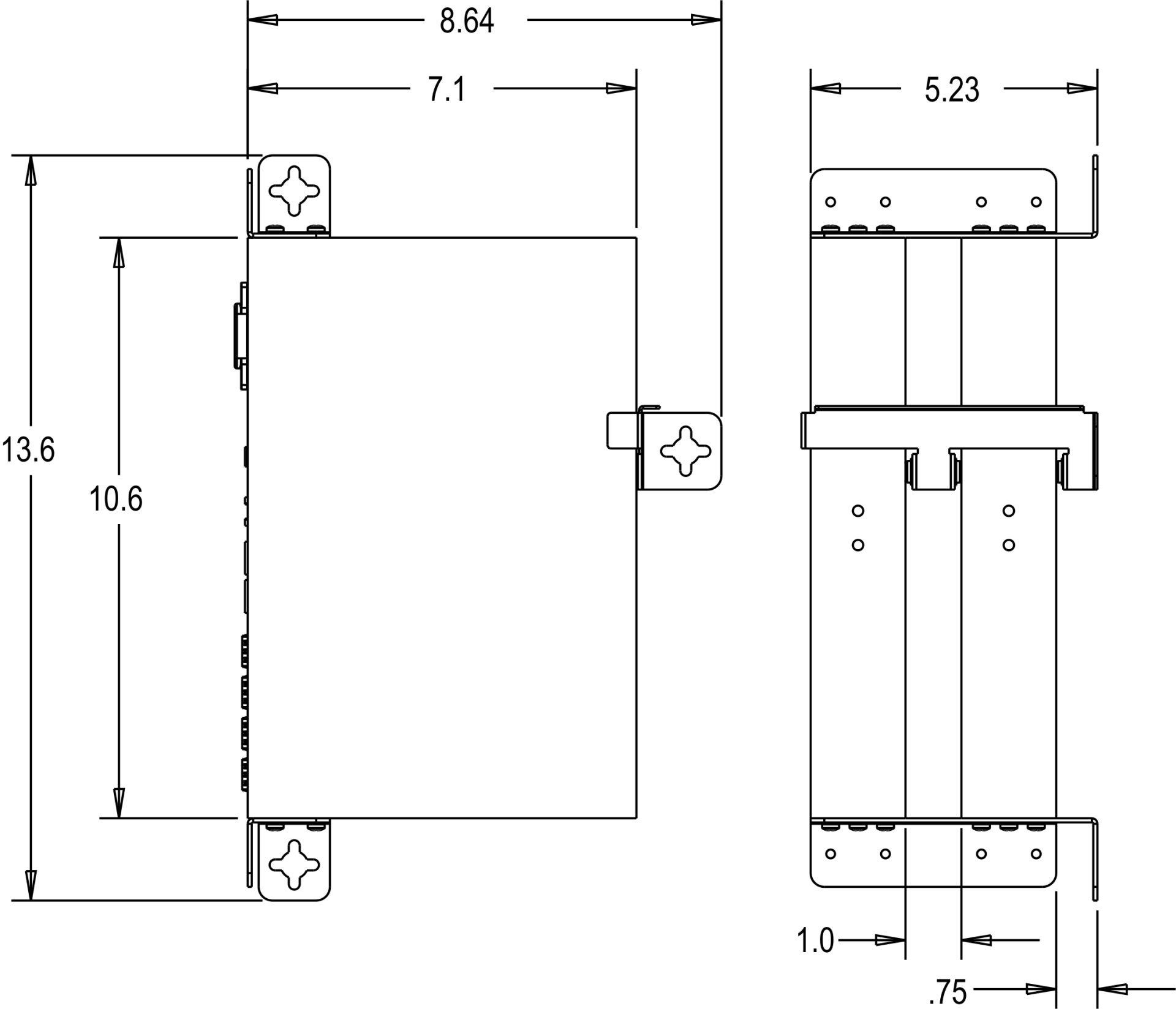

BK-ME02
WALL BRACKET, CISCO ME1200, 2 UNITS
• The BK-ME02 is a kit containing two (2) brackets and hardware for hanging up to two (2) CISCO™ ME1200’s on a wall.
• Powder coated steel designed for carrier class applications and environments.
• Compact size conserves wall space.
• Optional cable manager tray (ME-02CM) available.
Cisco® is a registered trademark of Cisco Systems
spec sheet

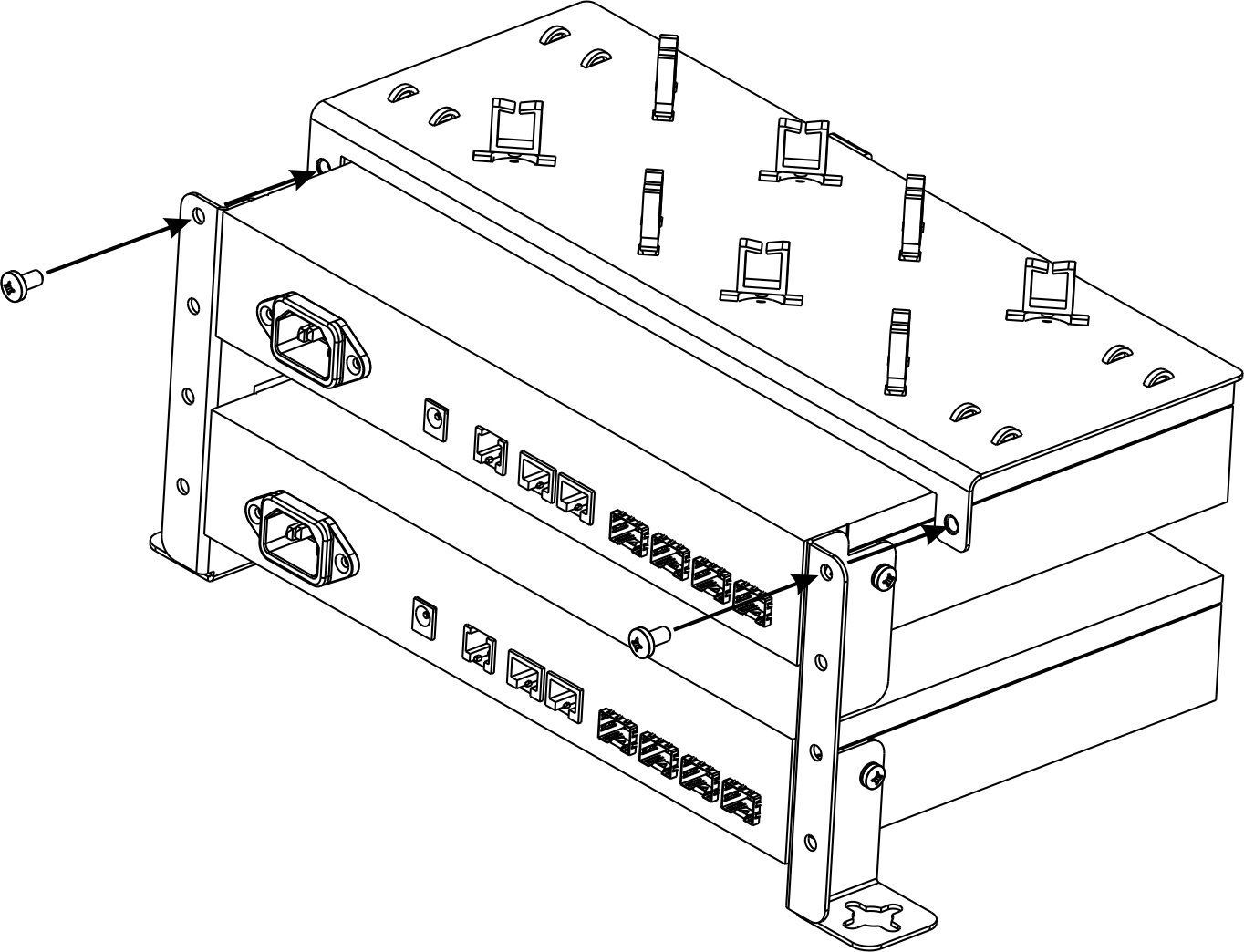

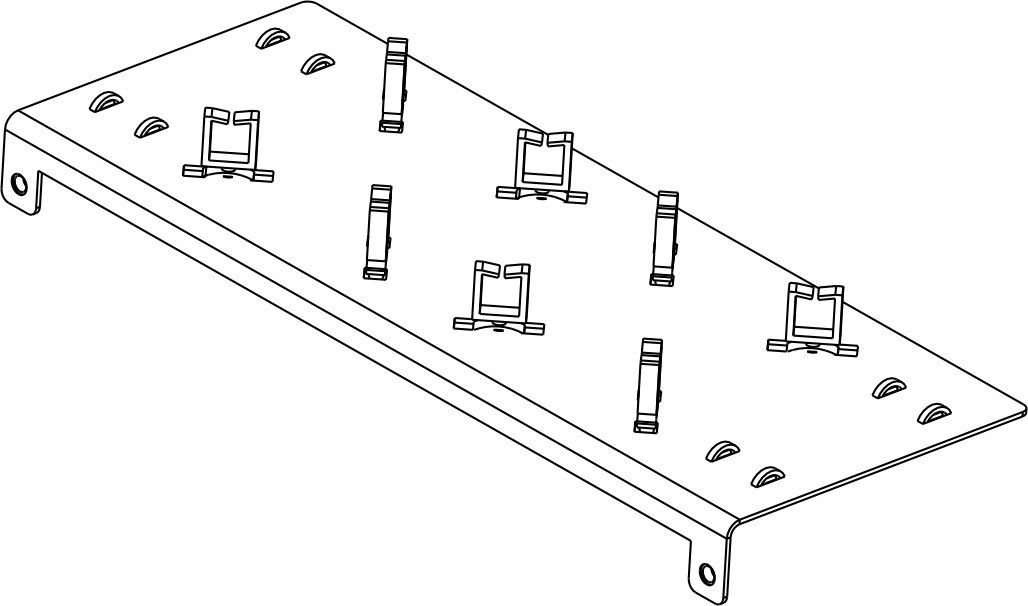

BK-ME02CM
CABLE MANAGER PLATE, BK-ME02
• The BK-ME02CM is a kit to be used with the BK-ME02 for cable management.
• Powder coated steel designed for carrier class applications and environments.
• Provides both fiber guides and locations for cable ties.
spec sheet

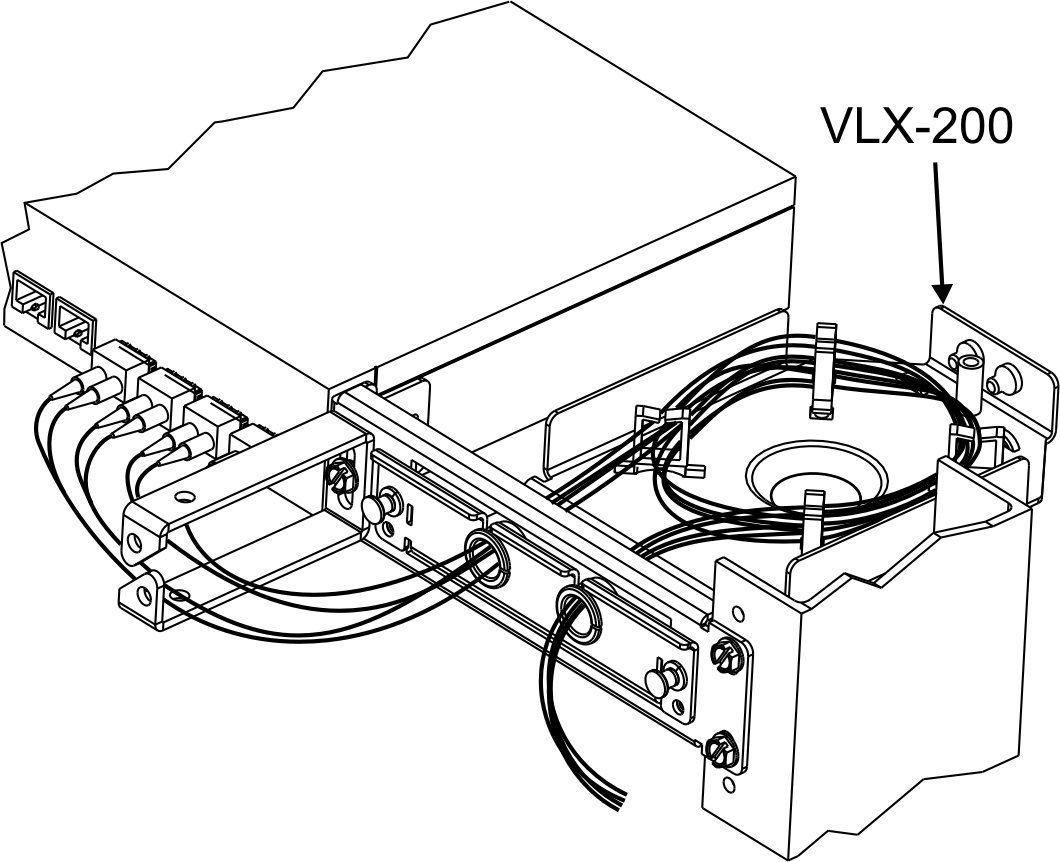

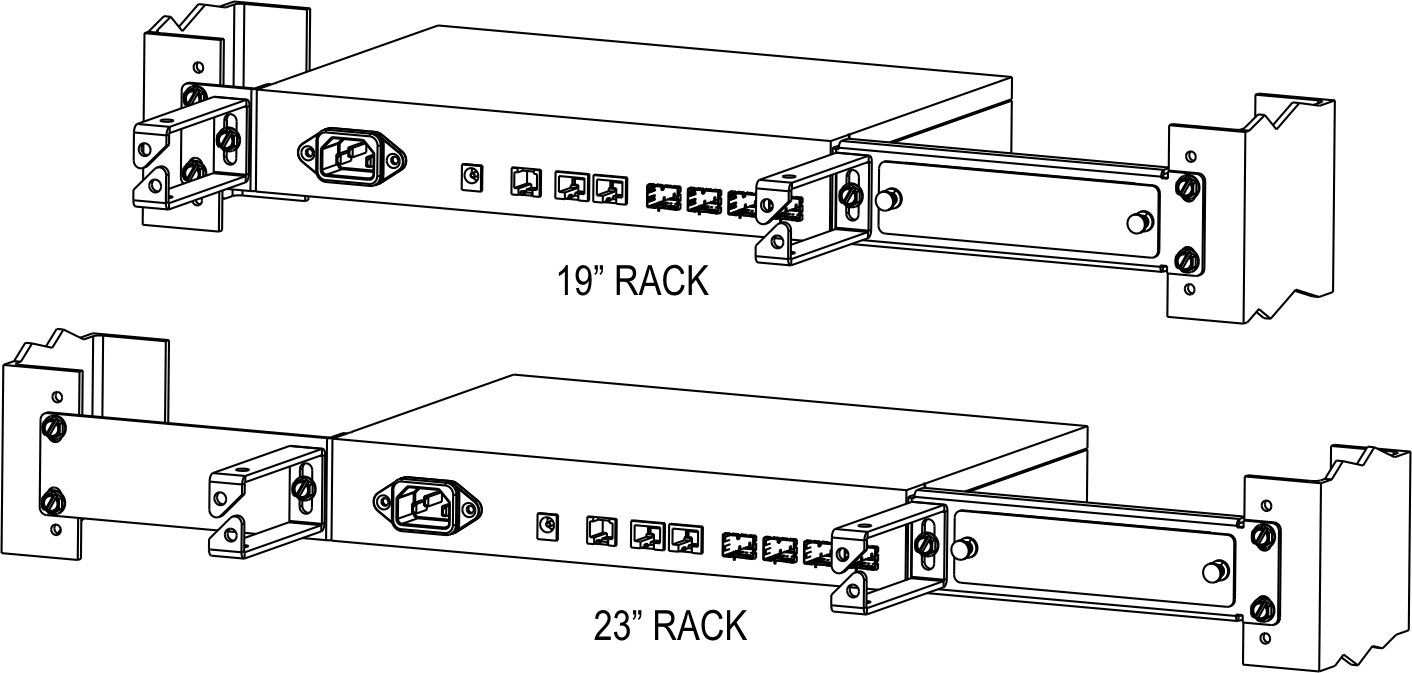

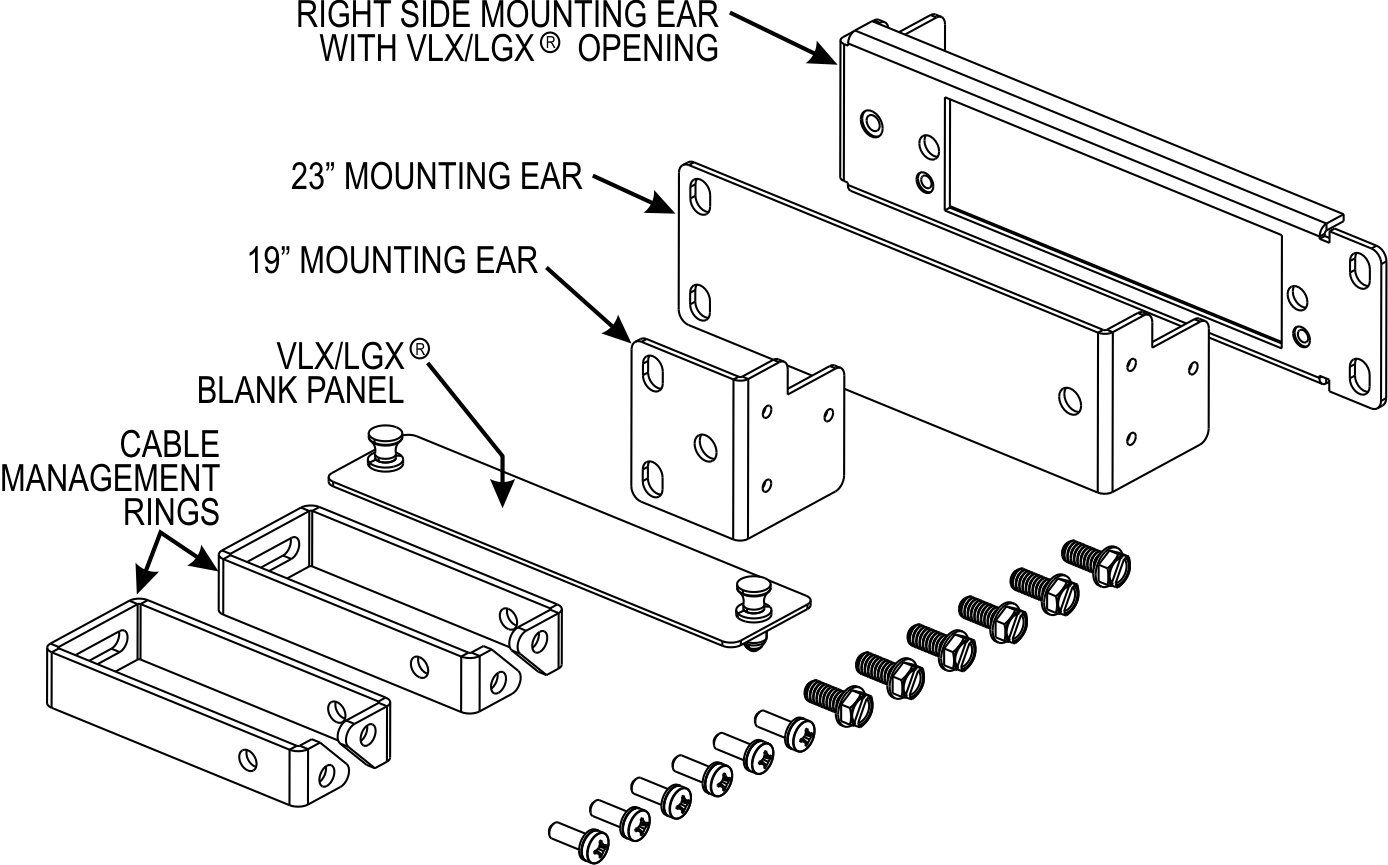

BK-ME03
RACK BRACKET, CISCO ME1200, 1 UNIT
• The BK-ME03 is a kit containing brackets and hardware for one (1) CISCO™ ME1200’s in a 19” or 23” rack.
• Stainless steel designed for carrier class applications and environments.
• Bracket has an opening for a VLX or LGX™ panel or cassette.
• An NAC VLX-200 is a good example for a cassette to use for spooling cable.
Cisco® is a registered trademark of Cisco Systems
LGX® is a registered trademark of OFS FITEL, LLC
spec sheet

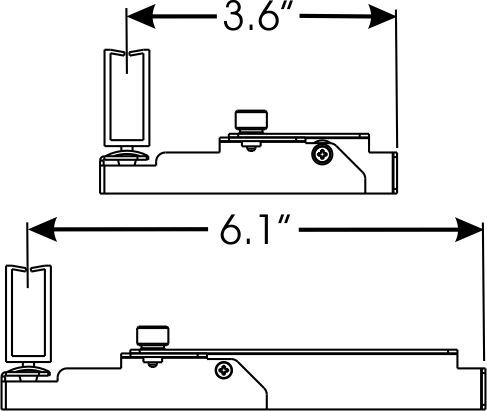

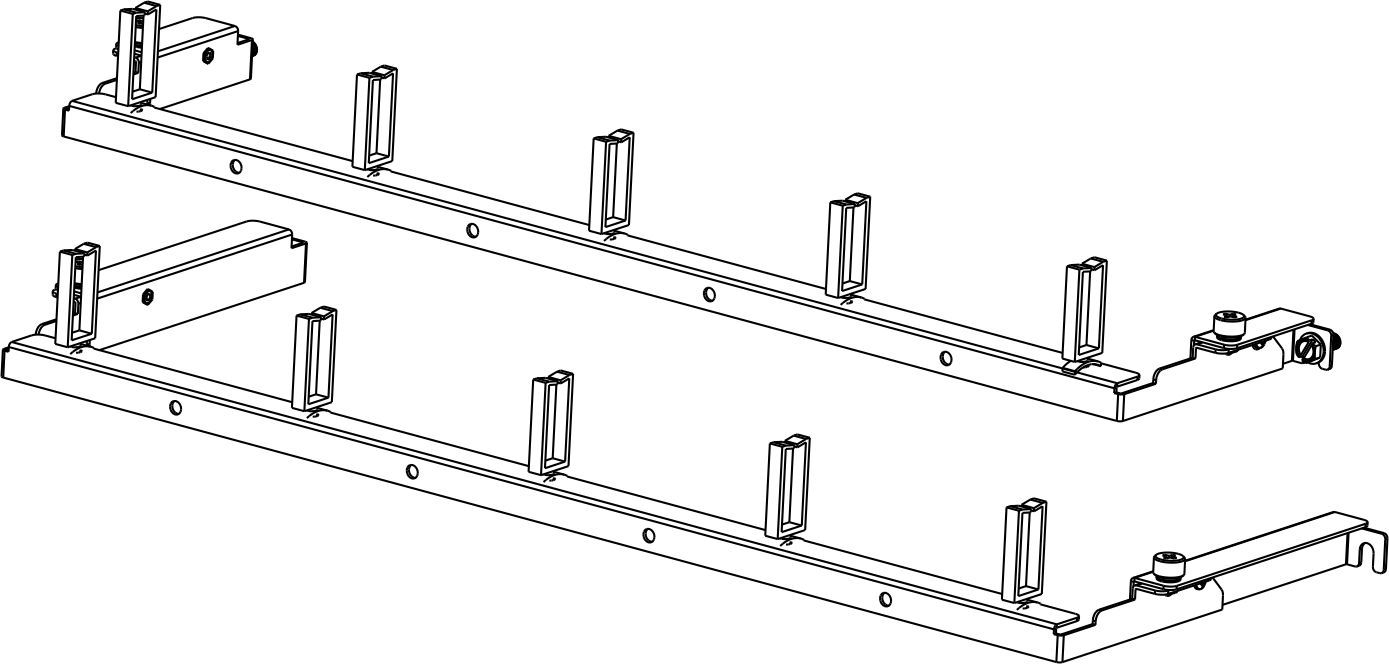

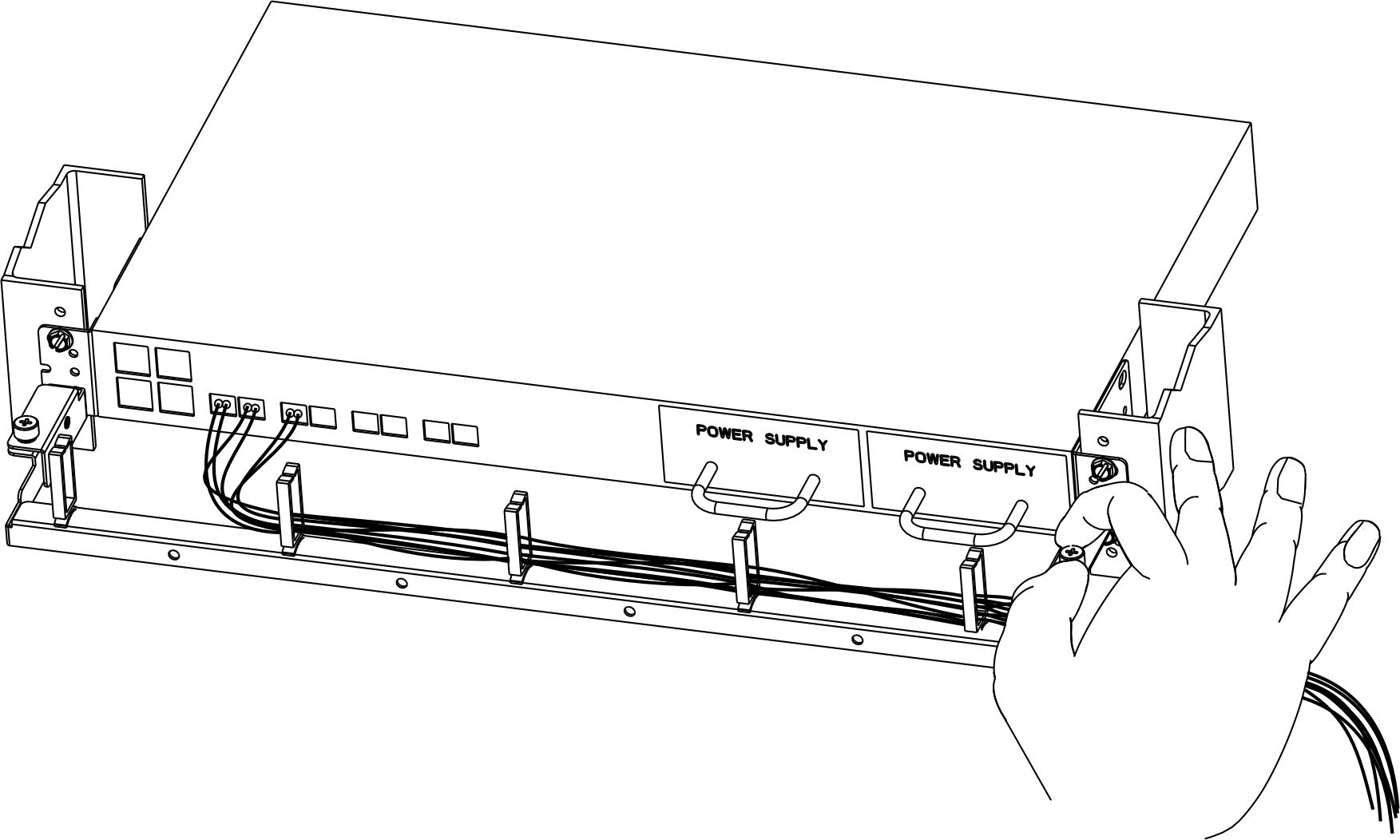

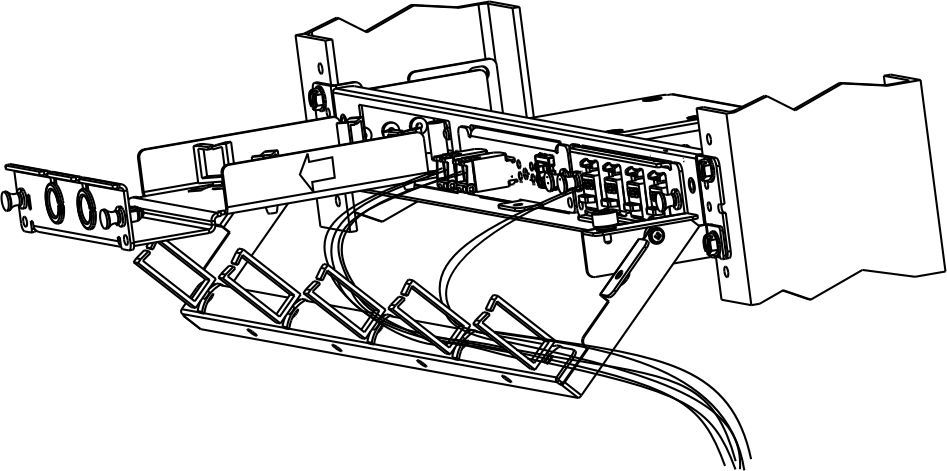

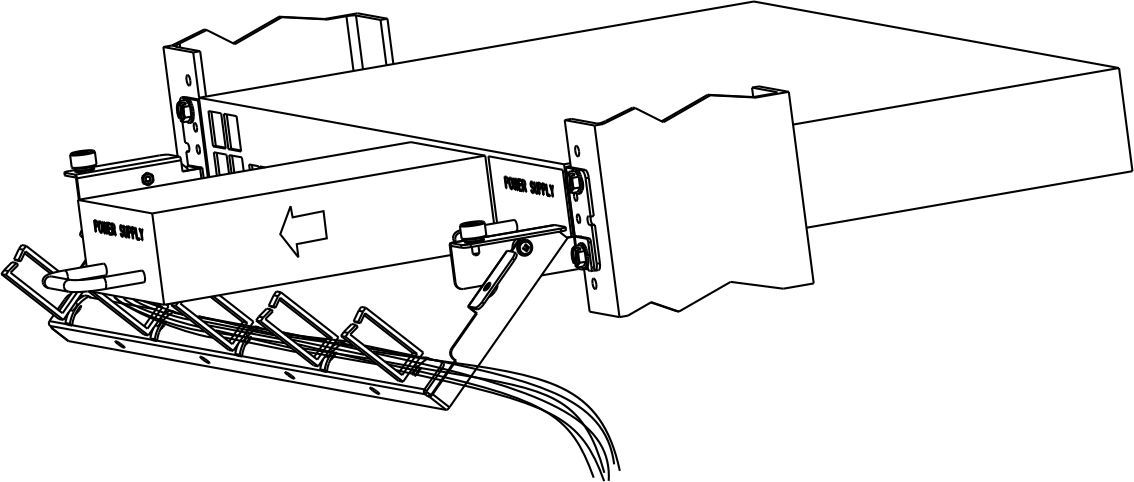

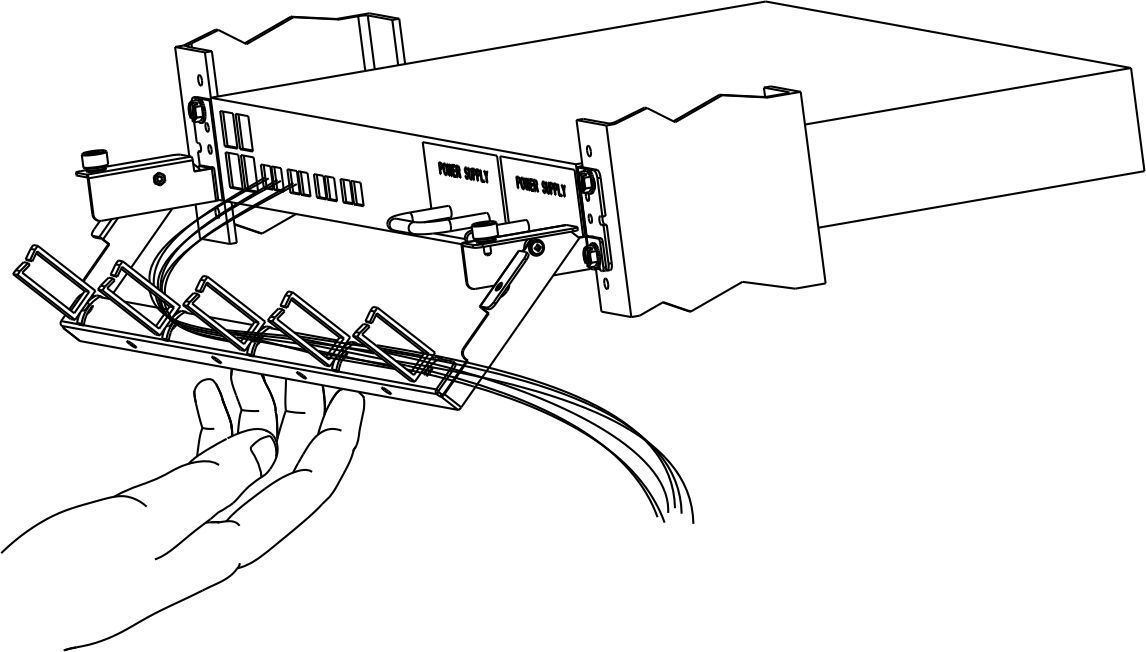

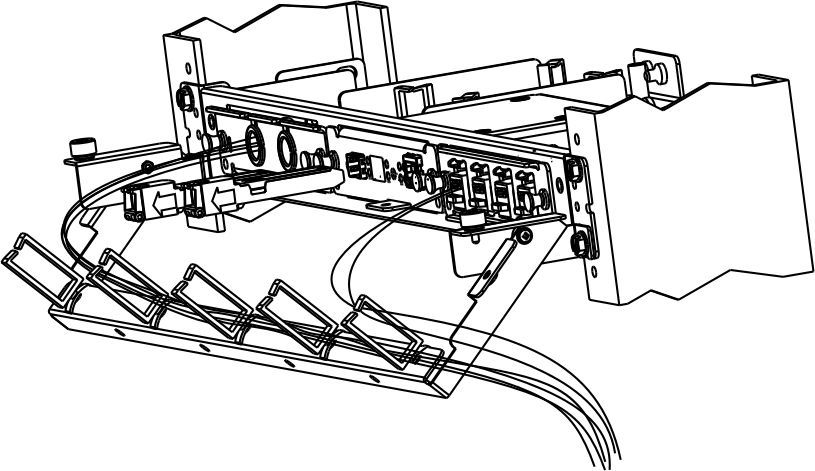

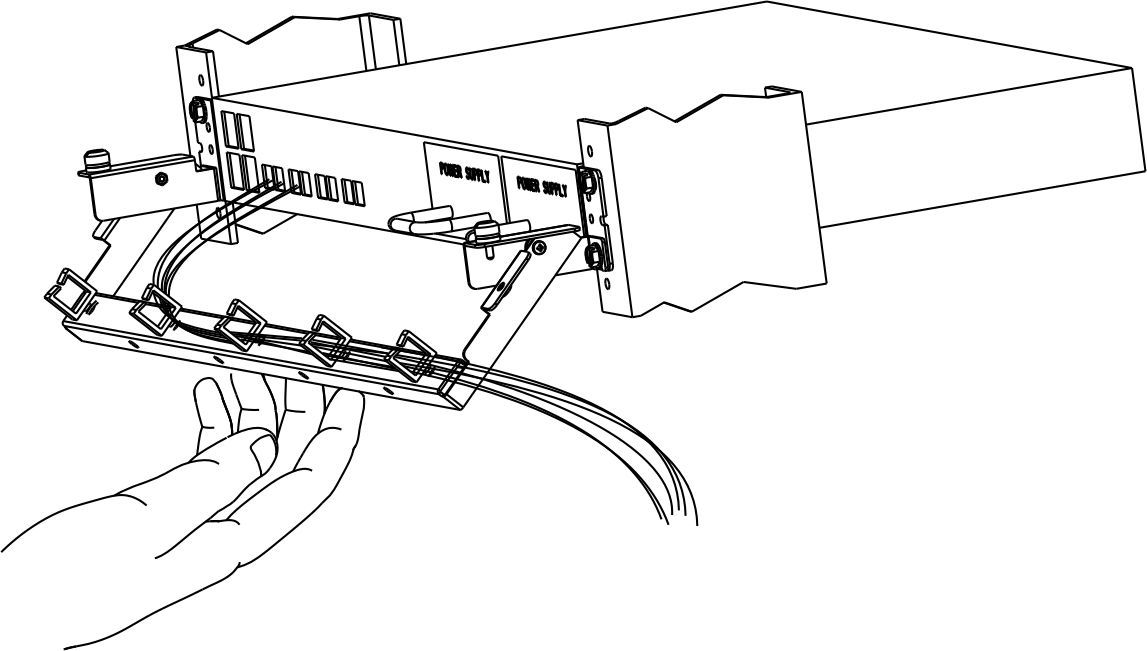

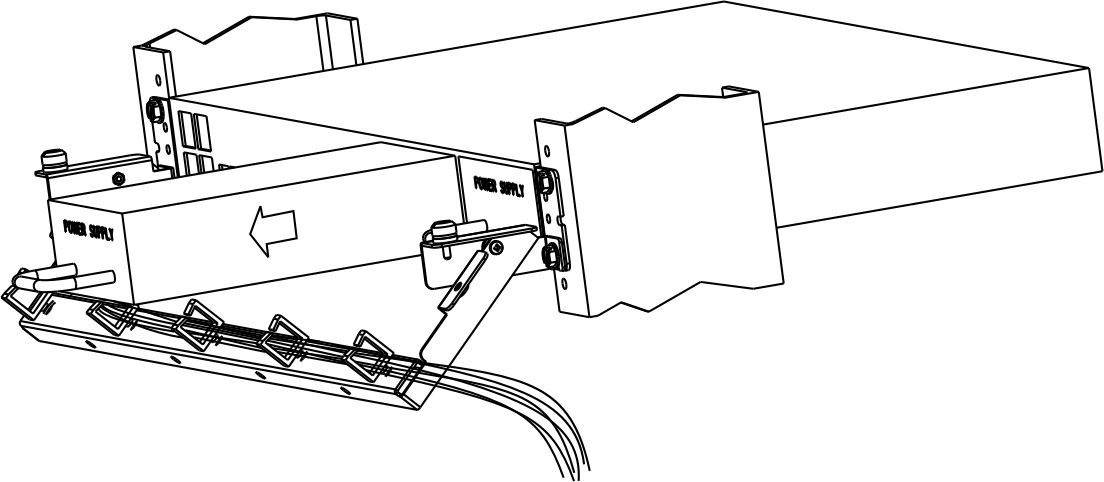

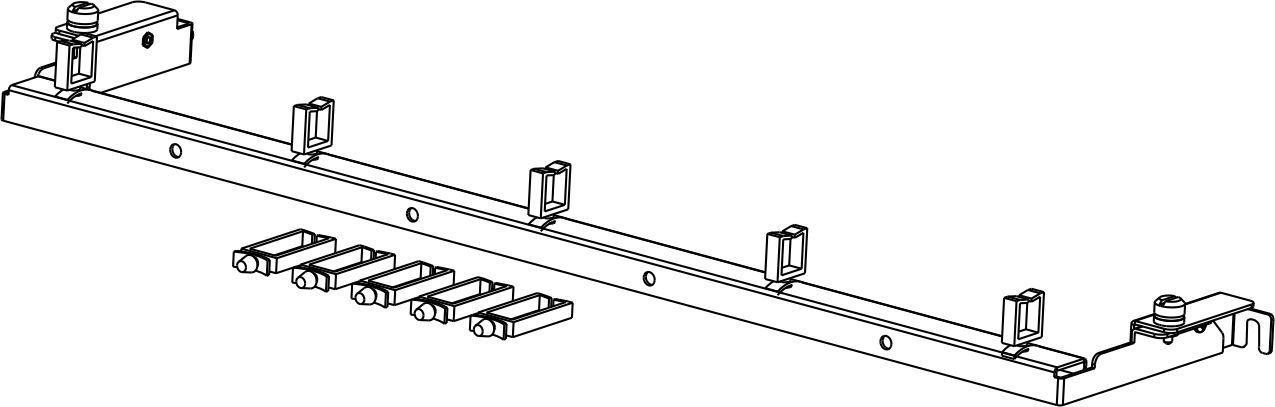

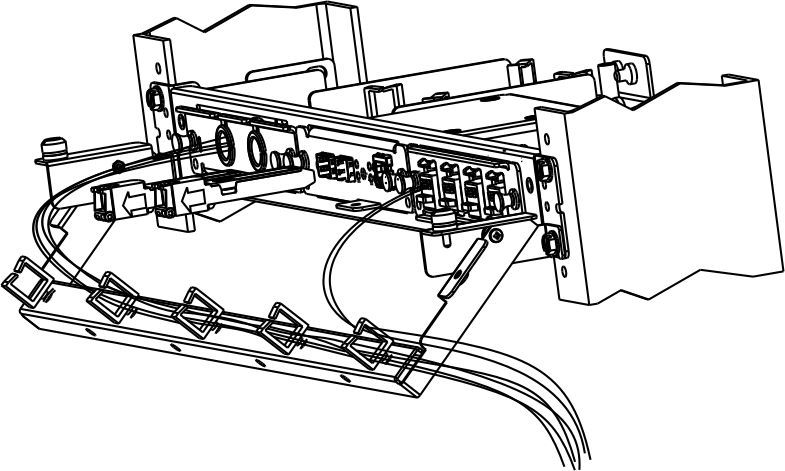

CBS-100

CABLE MANAGEMENT BAR, 19”, 3.6" DEEP, SWING DOWN

• The CBS-100 is a unique cable management bar for 19” racks.

• Zinc plated steel designed for carrier class applications and environments.

• Unique swing down bar for easy access to equipment.

• CBS-100 is 3.6" deep, CBS-200 is 5.6" deep

• Standard size Fiber Clips and larger Fiber Clips are included.

•  Easy install for new or existing equipment.

spec sheet

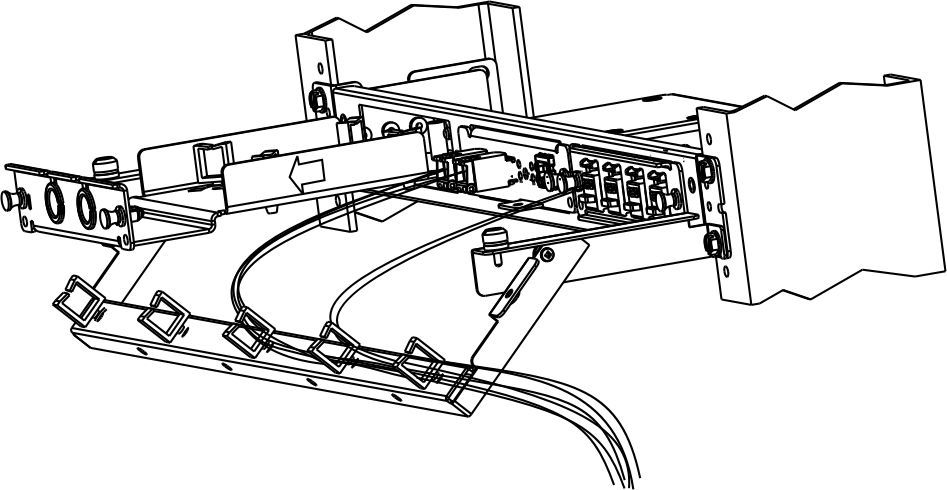

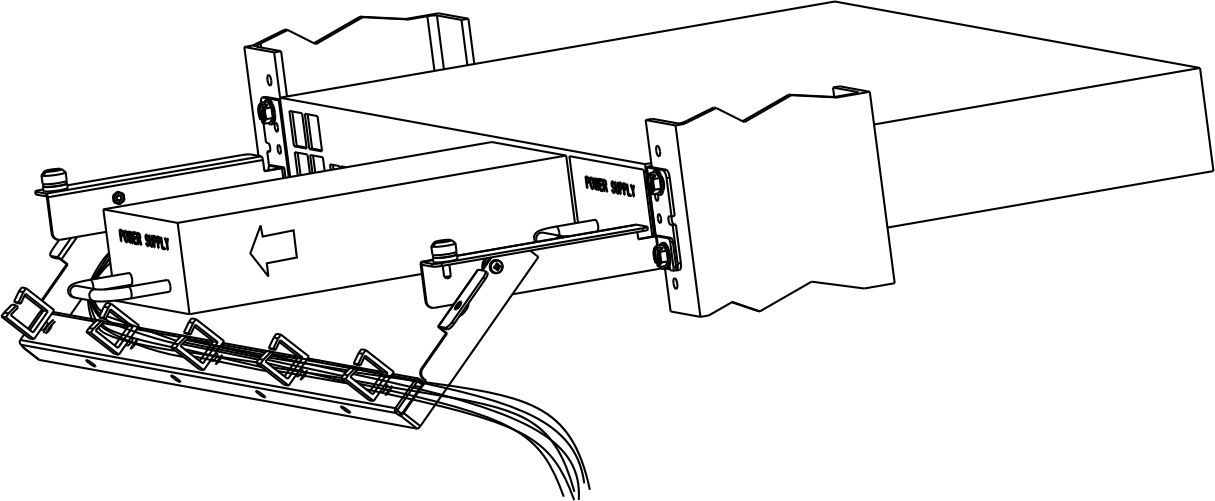

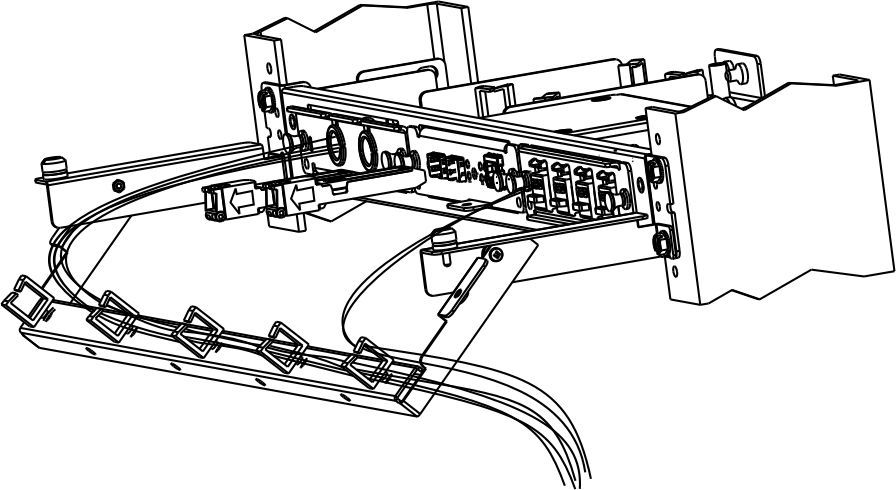

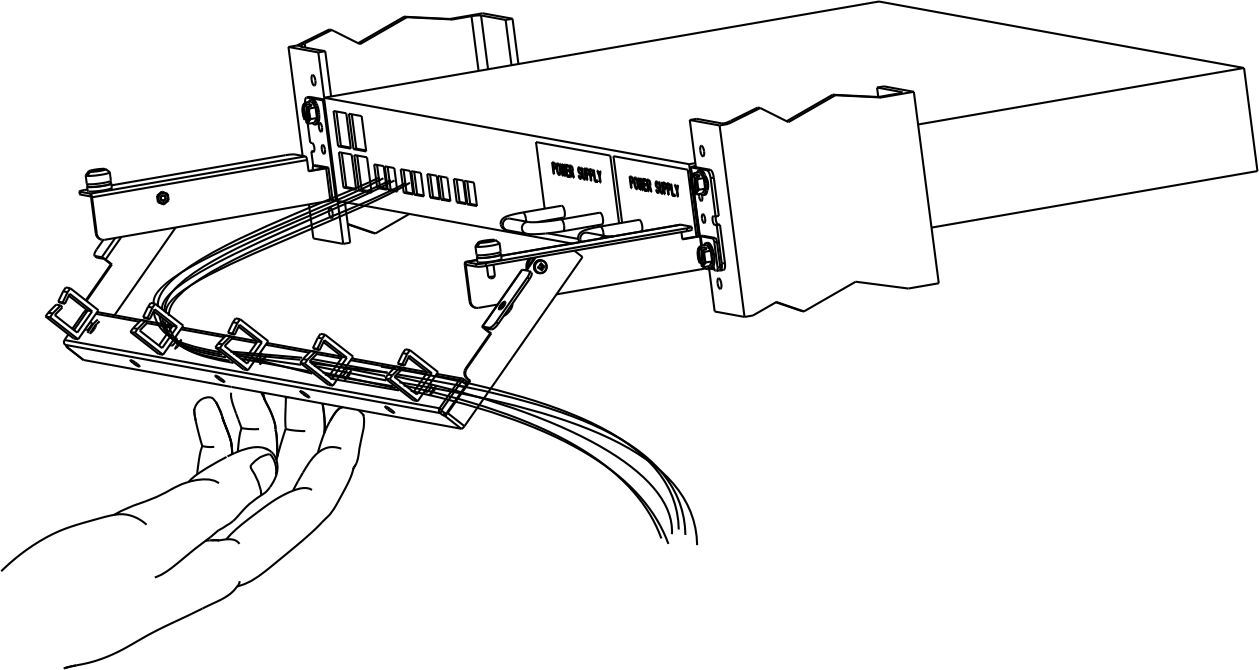

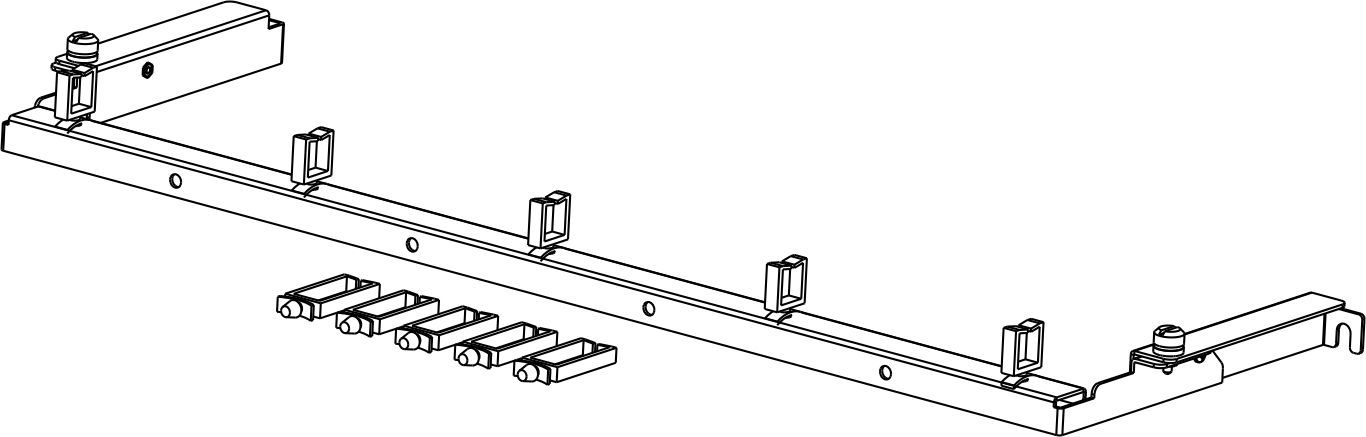

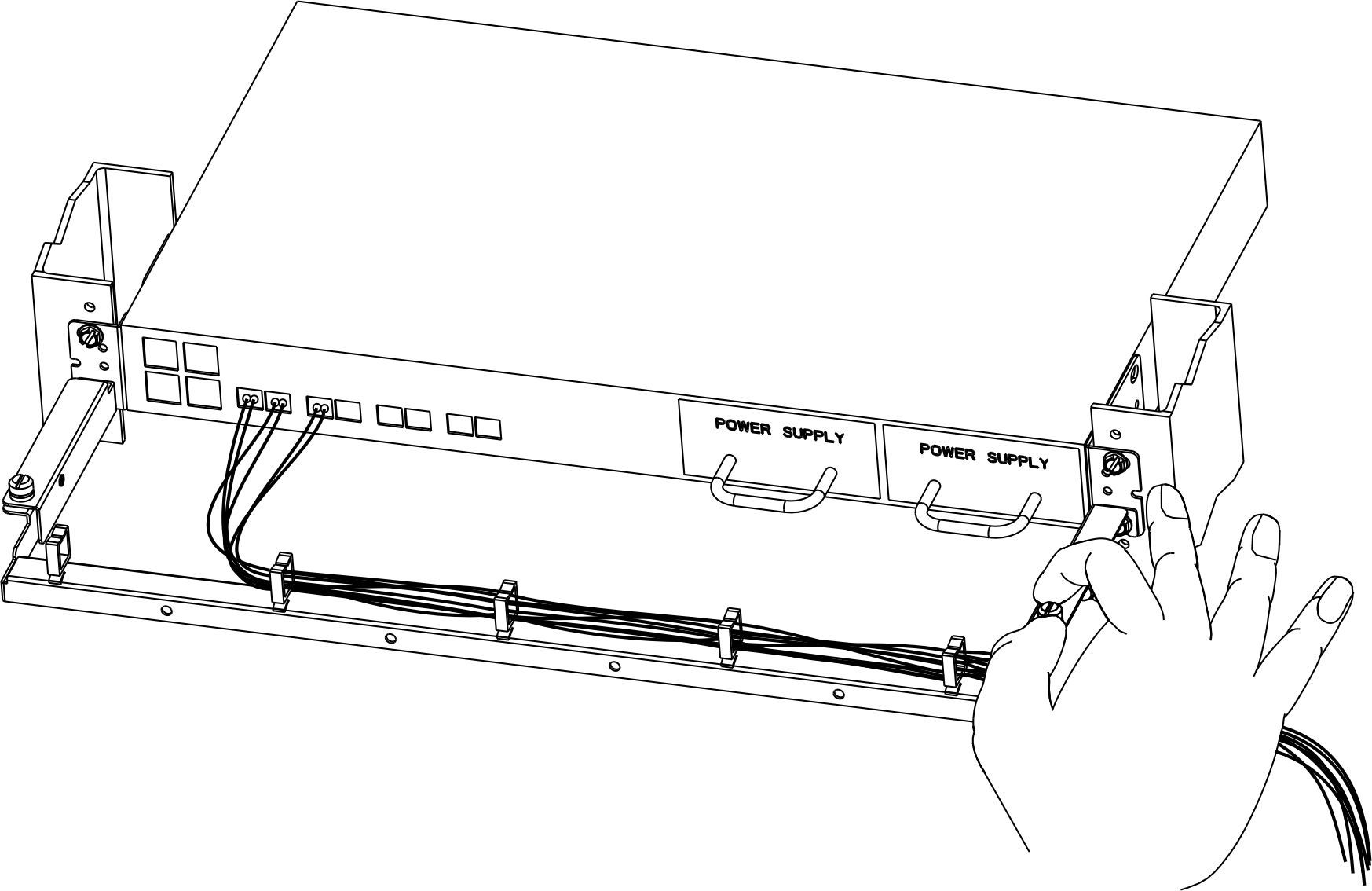

CBS-200

CABLE MANAGEMENT BAR, 19”, 5.6" DEEP, SWING DOWN

• The CBS-200 is a unique cable management bar for 19” racks.

• Zinc plated steel designed for carrier class applications and environments.

• Unique swing down bar for easy access to equipment.

• CBS-100 is 3.6" deep, CBS-200 is 5.6" deep

• Standard size Fiber Clips and larger Fiber Clips are included.

•  Easy install for new or existing equipment.

spec sheet

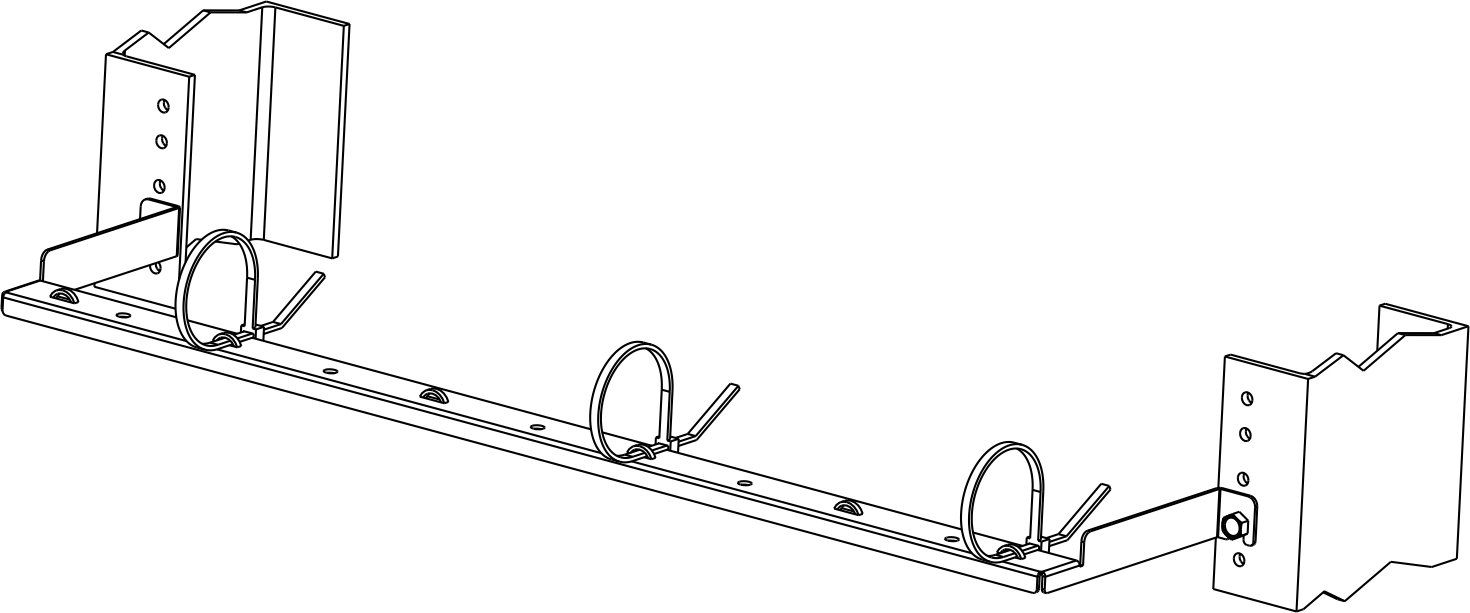

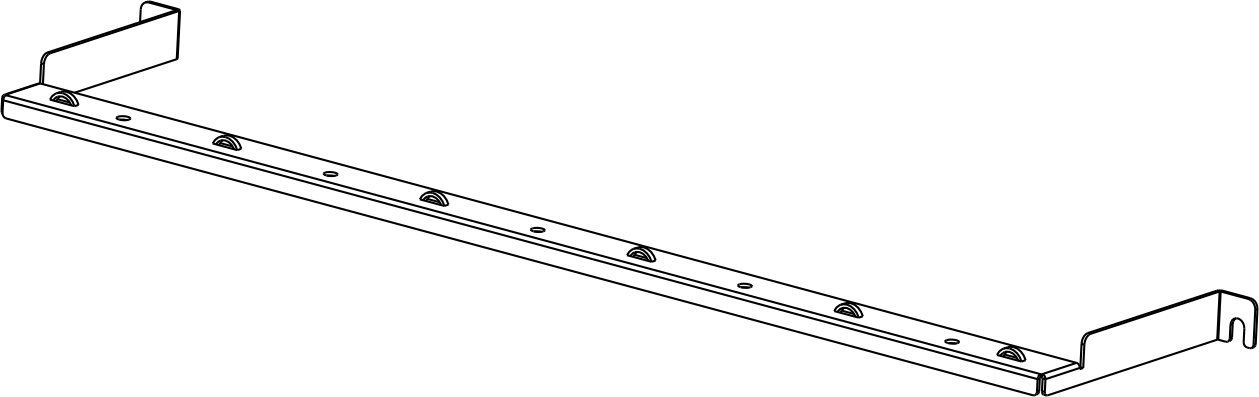

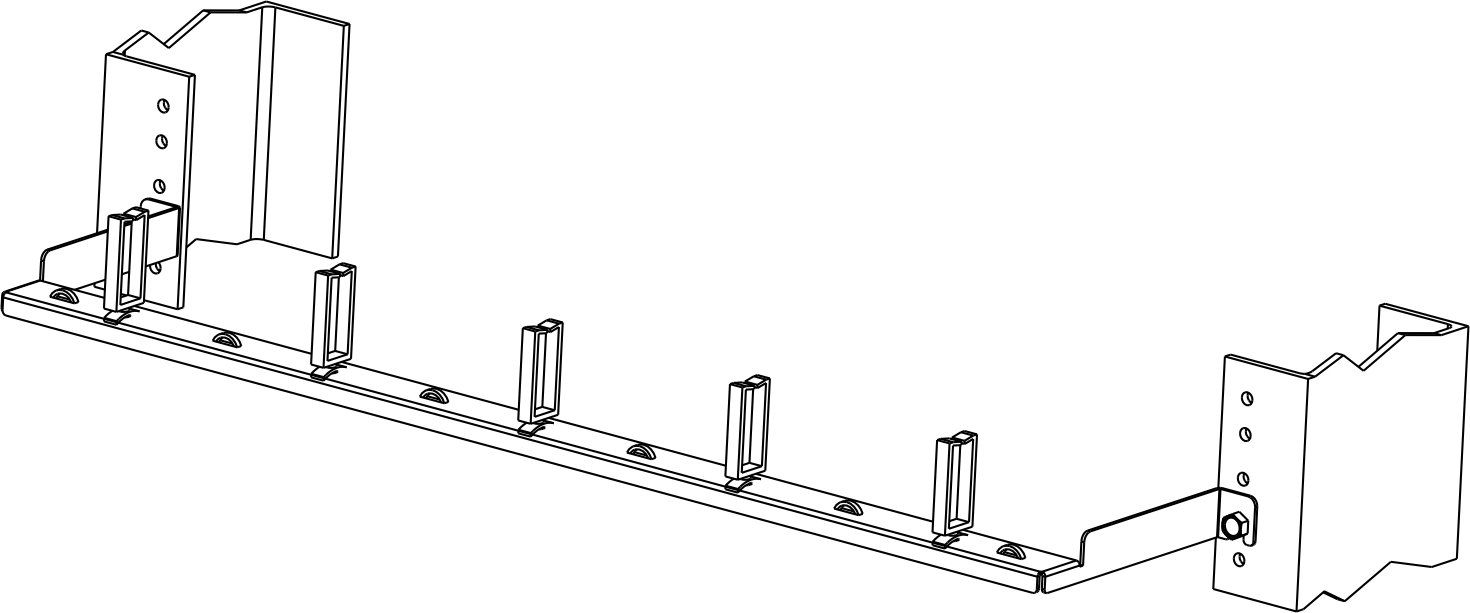

CBF-100
CABLE MANAGEMENT BAR, 19”, FIXED
• The CBF-100 is a cable management bar for 19” racks.
• Zinc plated steel designed for carrier class applications and environments.
• A fixed inexpensive cable bar.
• Easy install for new or existing equipment.

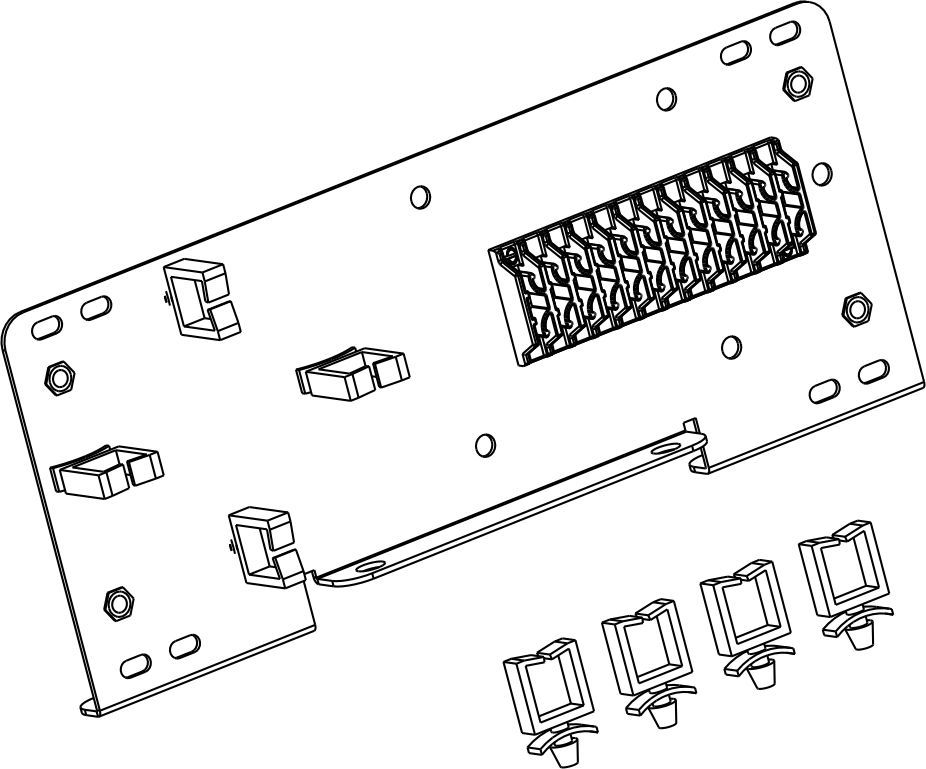

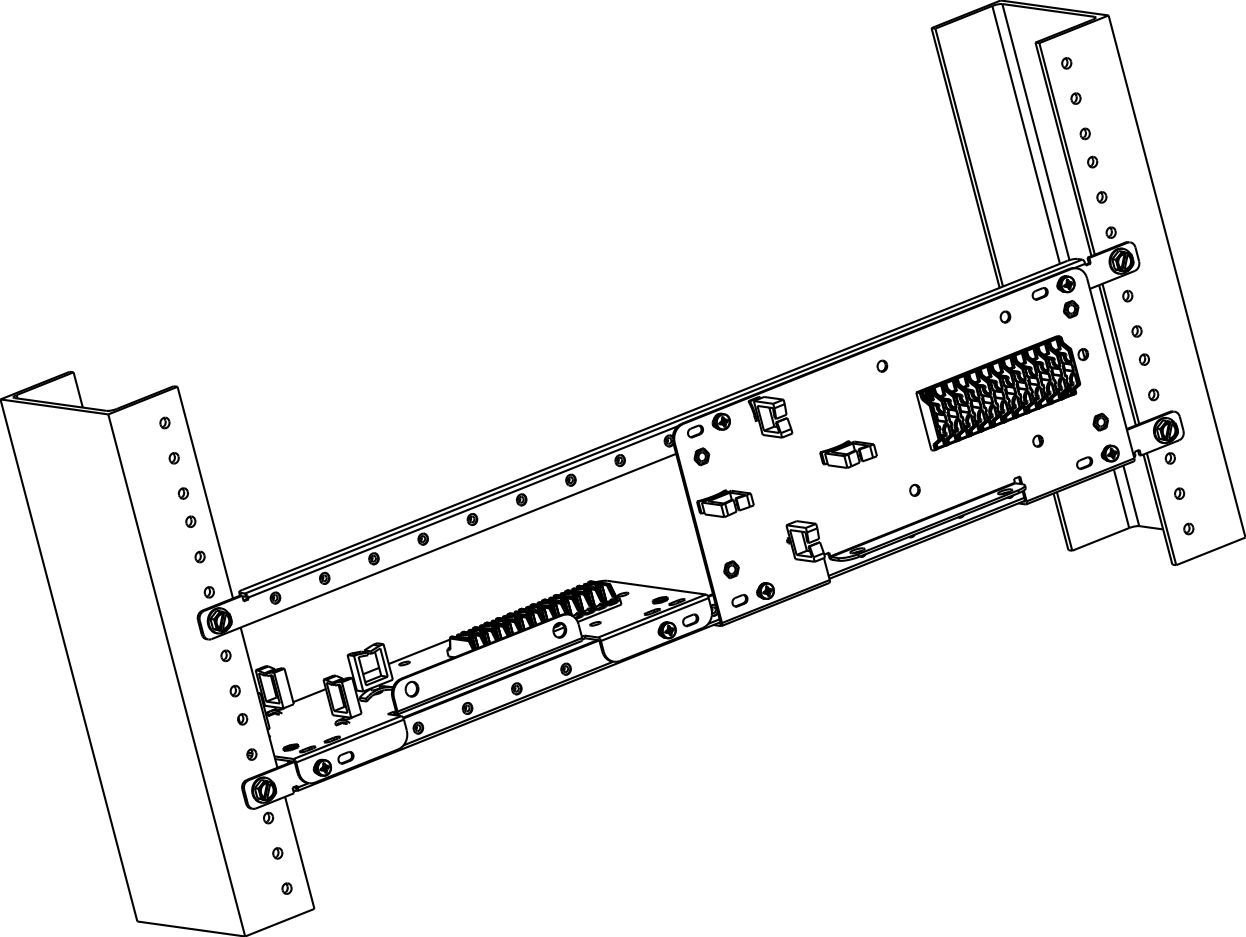

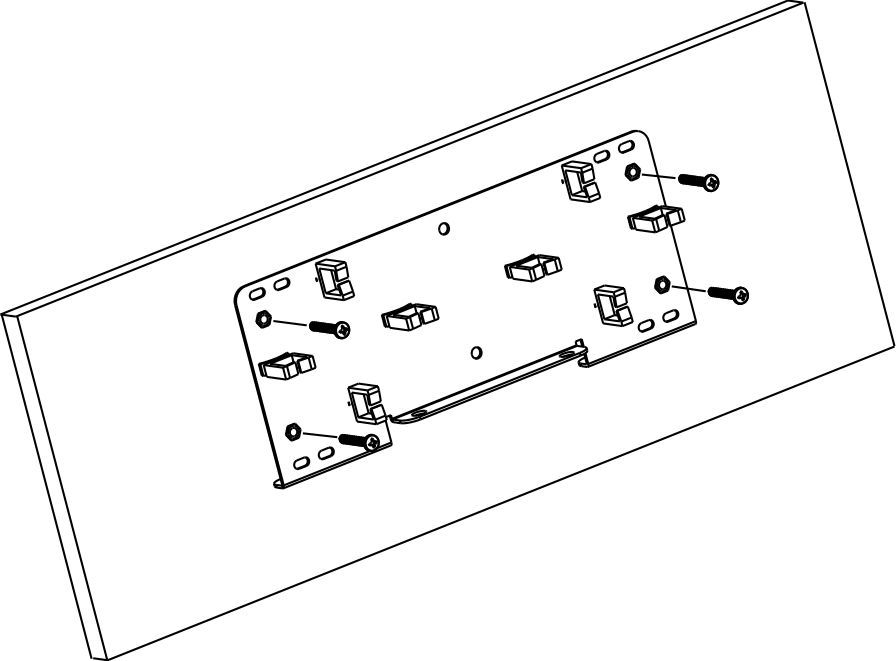

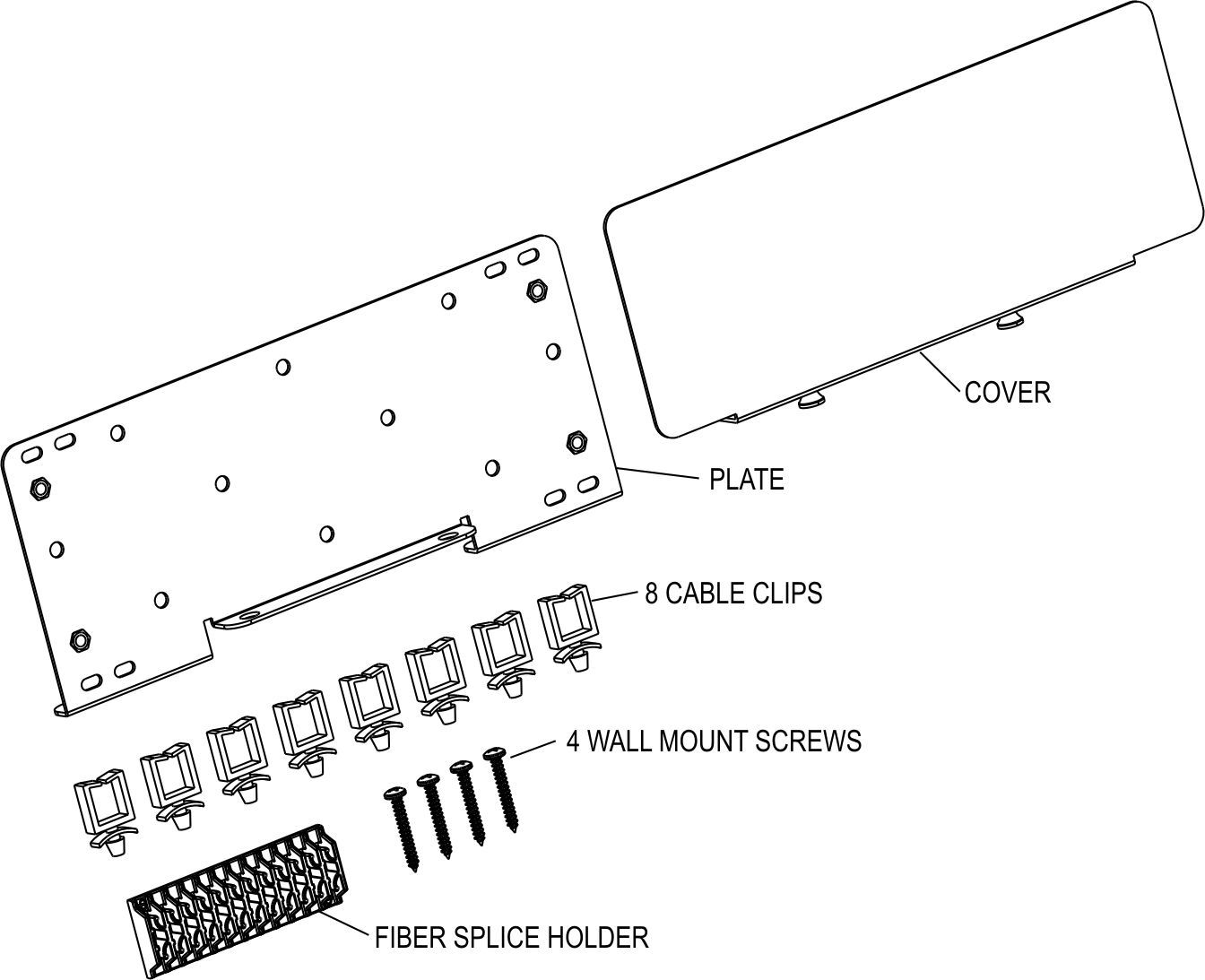

 CMP-200
CABLE MANAGEMENT PANEL, 2RU TALL
• Comes with 8 cable guides and 24 position spice tray.
• Includes cover.
• Panel can be wall mounted or 19" rack mounted using the RMB19-000 bars.
spec sheet

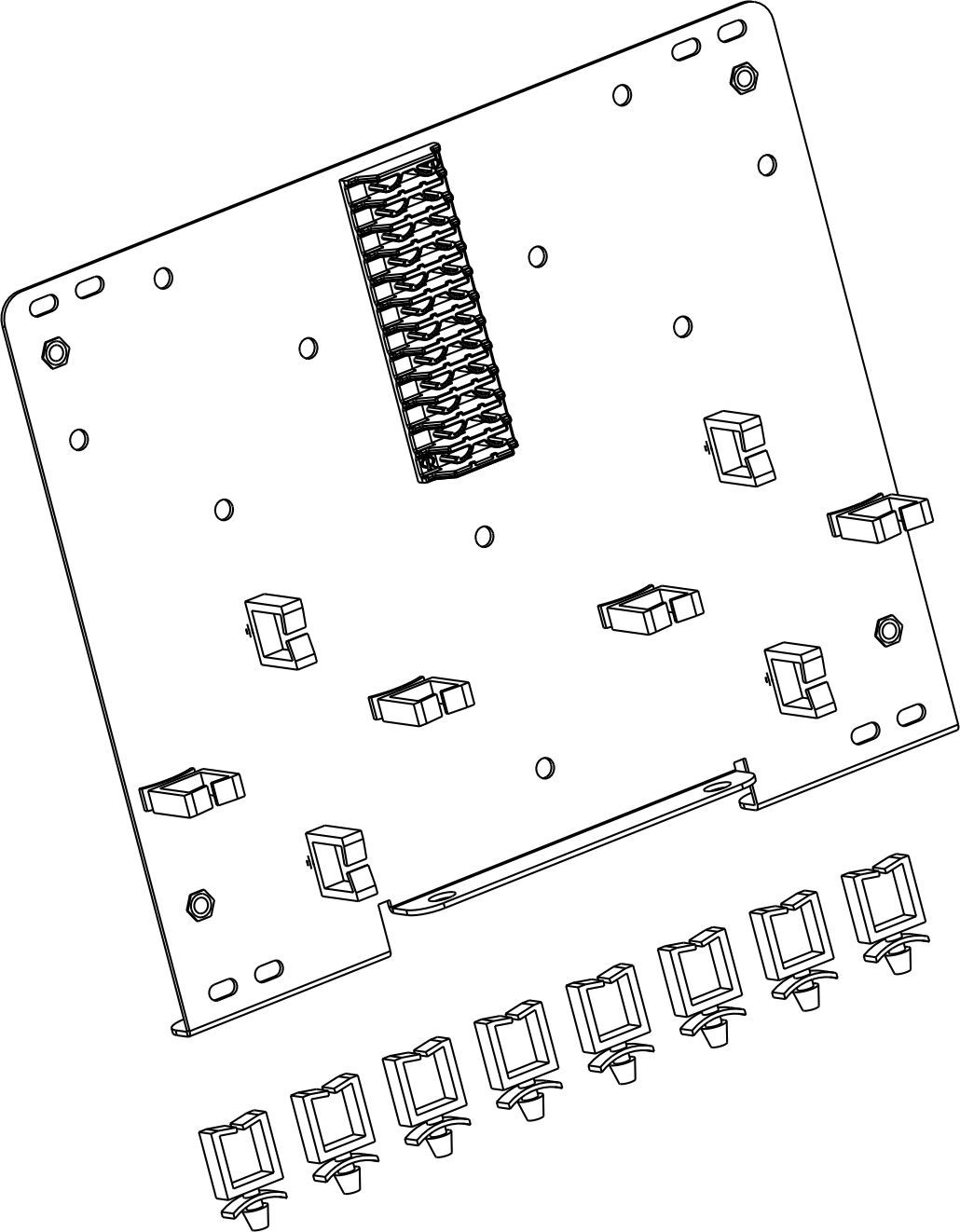

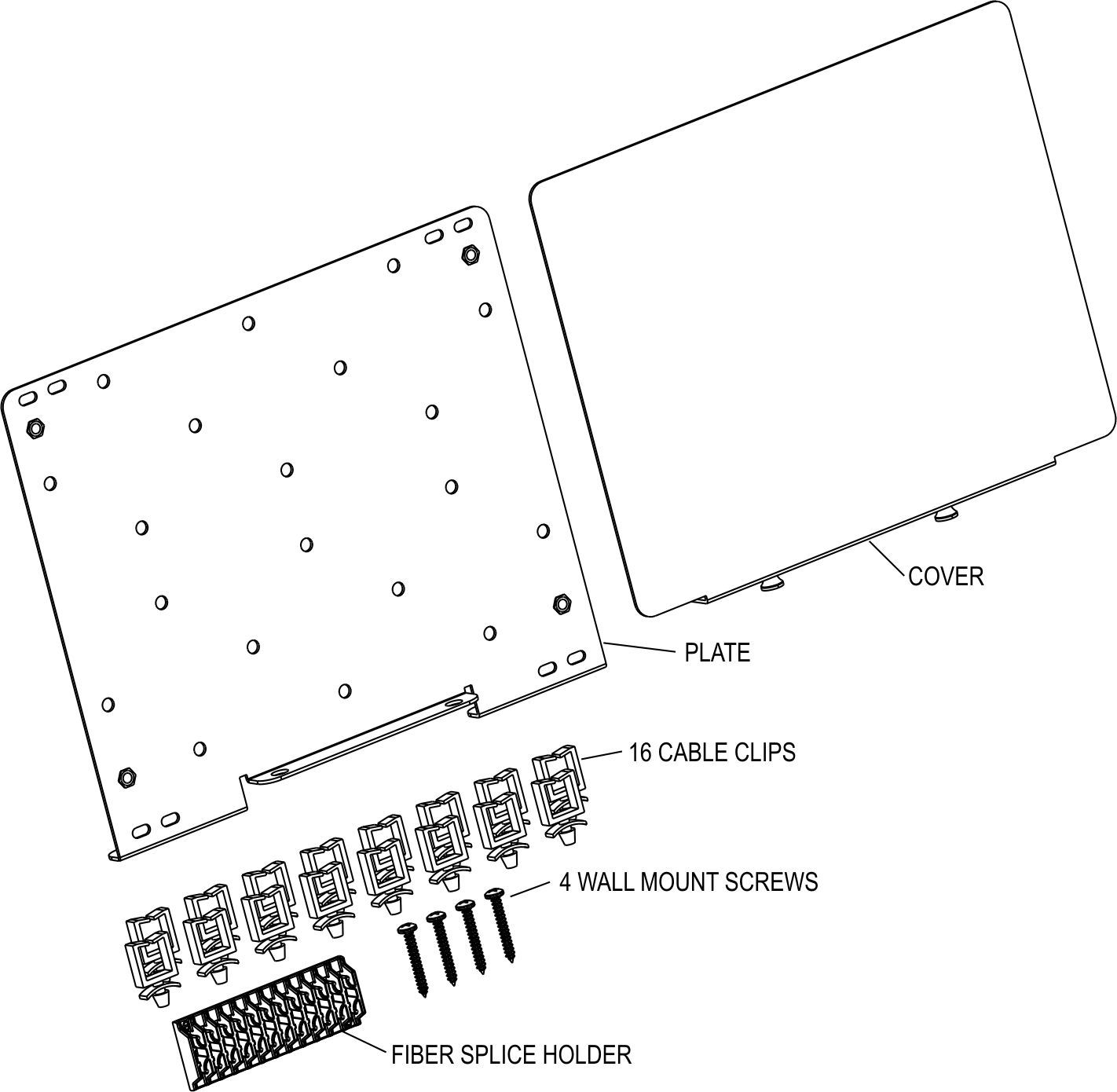

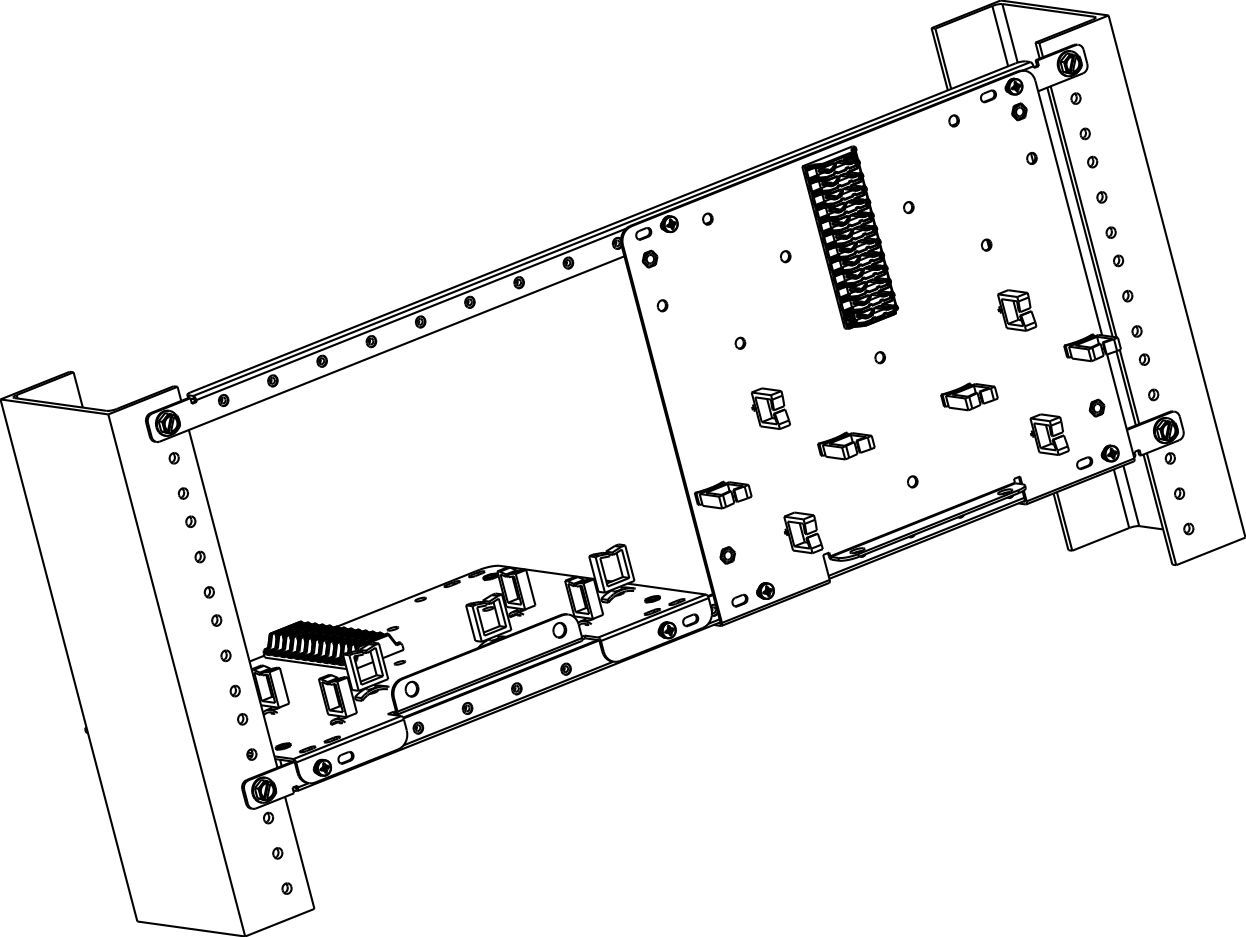

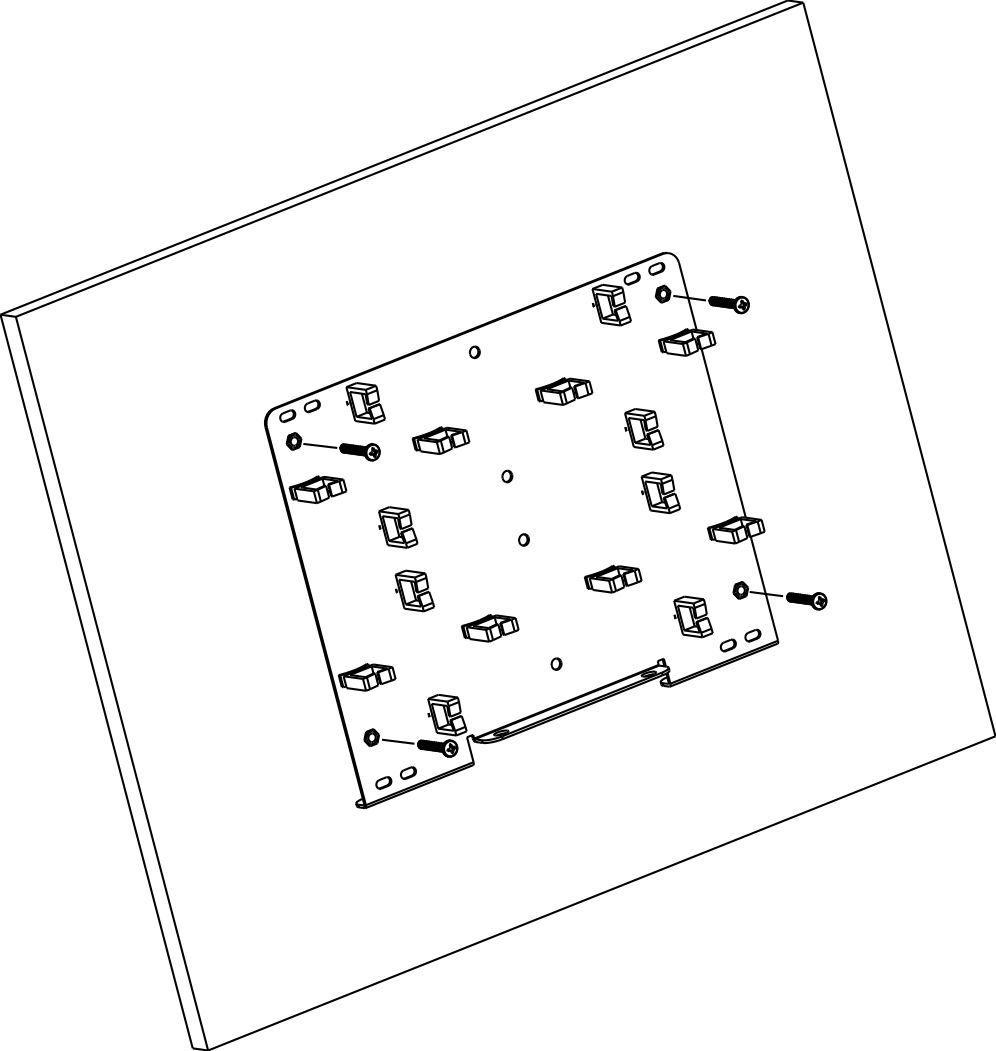

 CMP-400
CABLE MANAGEMENT PANEL, 4RU TALL
• Comes with 16 cable guides and 24 position spice tray.
• Includes cover.
• Panel can be wall mounted or 19" rack mounted using the RMB19-000 bars.
spec sheet

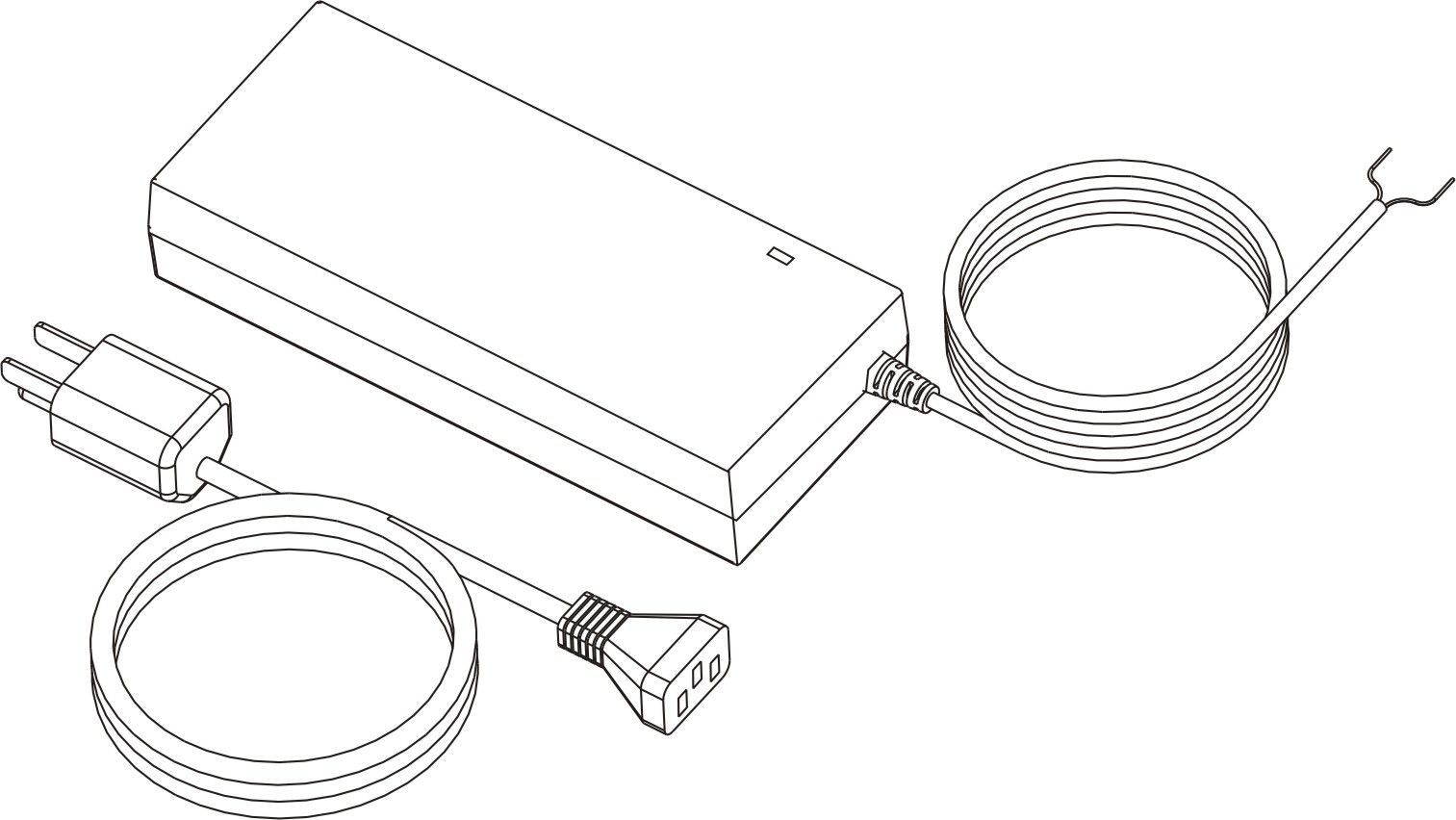

PS01 REV-02
48 VOLT, 1.35 AMP POWER SUPPLY
• The PS01 is a 48 Volt, 1.35 Amp power supply.
• The PS01 output can perform as +48V or -45V,.
• 7 foot AC power cord.
• 5 foot, 2-conductor powering cord with color coded tinned leads
• Impact resistant polycarbonate case.
• ETL listed.

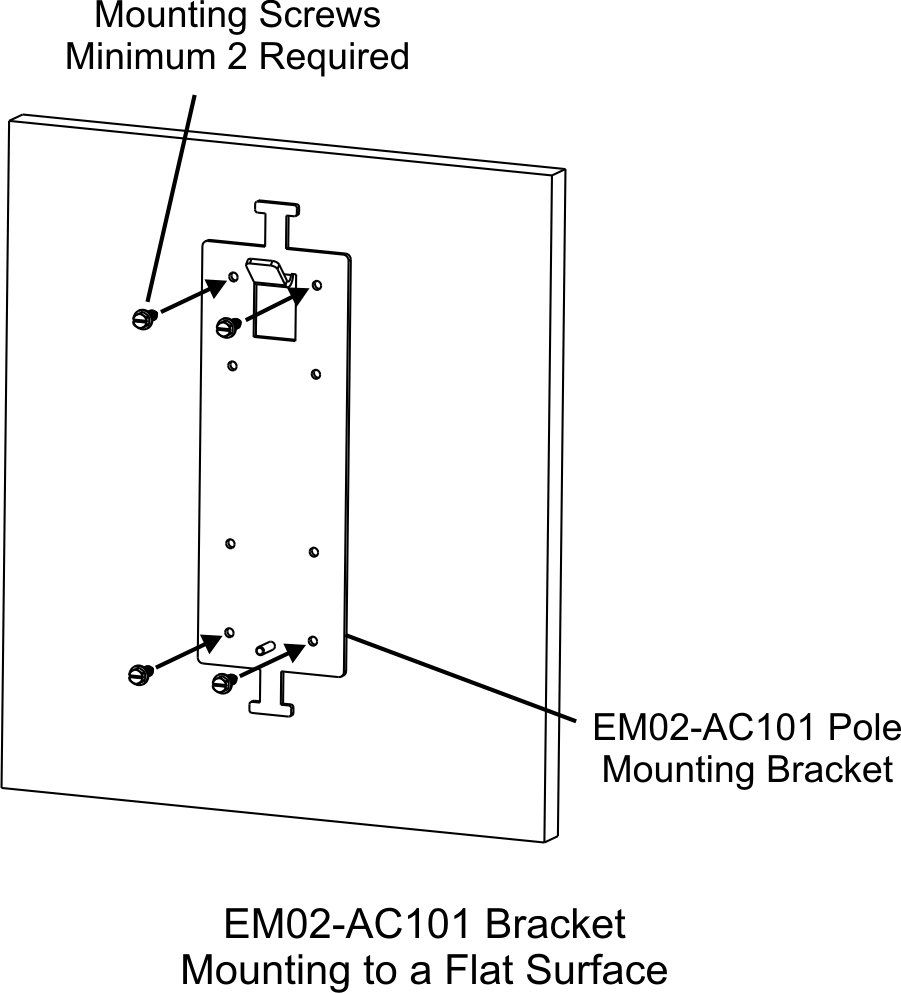

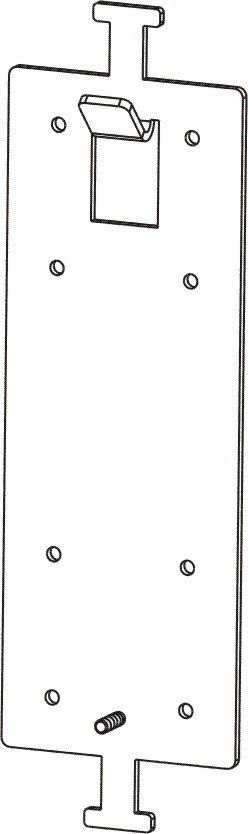

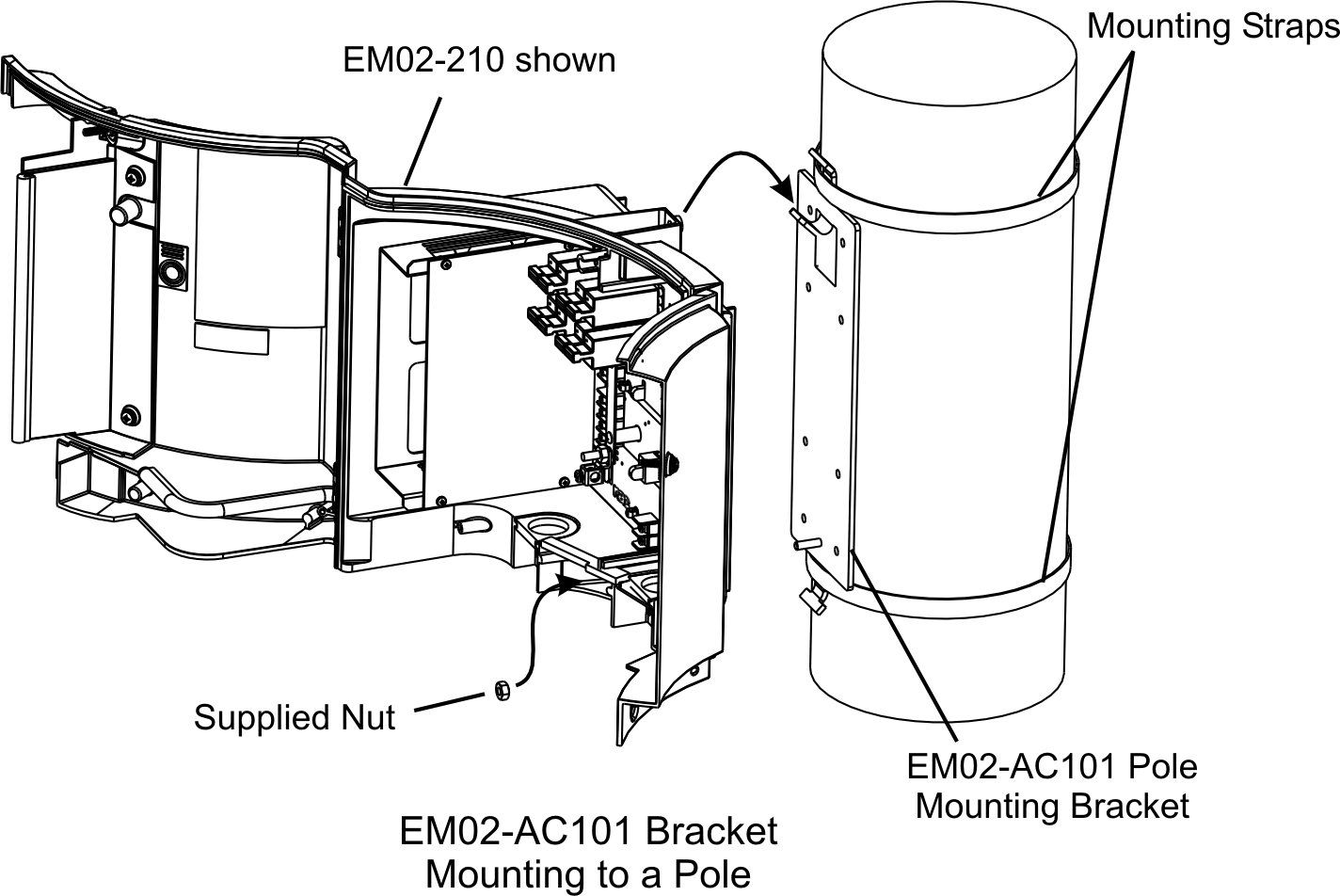

EM02-AC101
BACKET FOR POLE MOUNTING AN EM02-XXX
• A bracket used on the EM02 series to allow pole mounting with straps.
• Made of aluminum for extreme environments.
• flexible for either wall or pole mount.

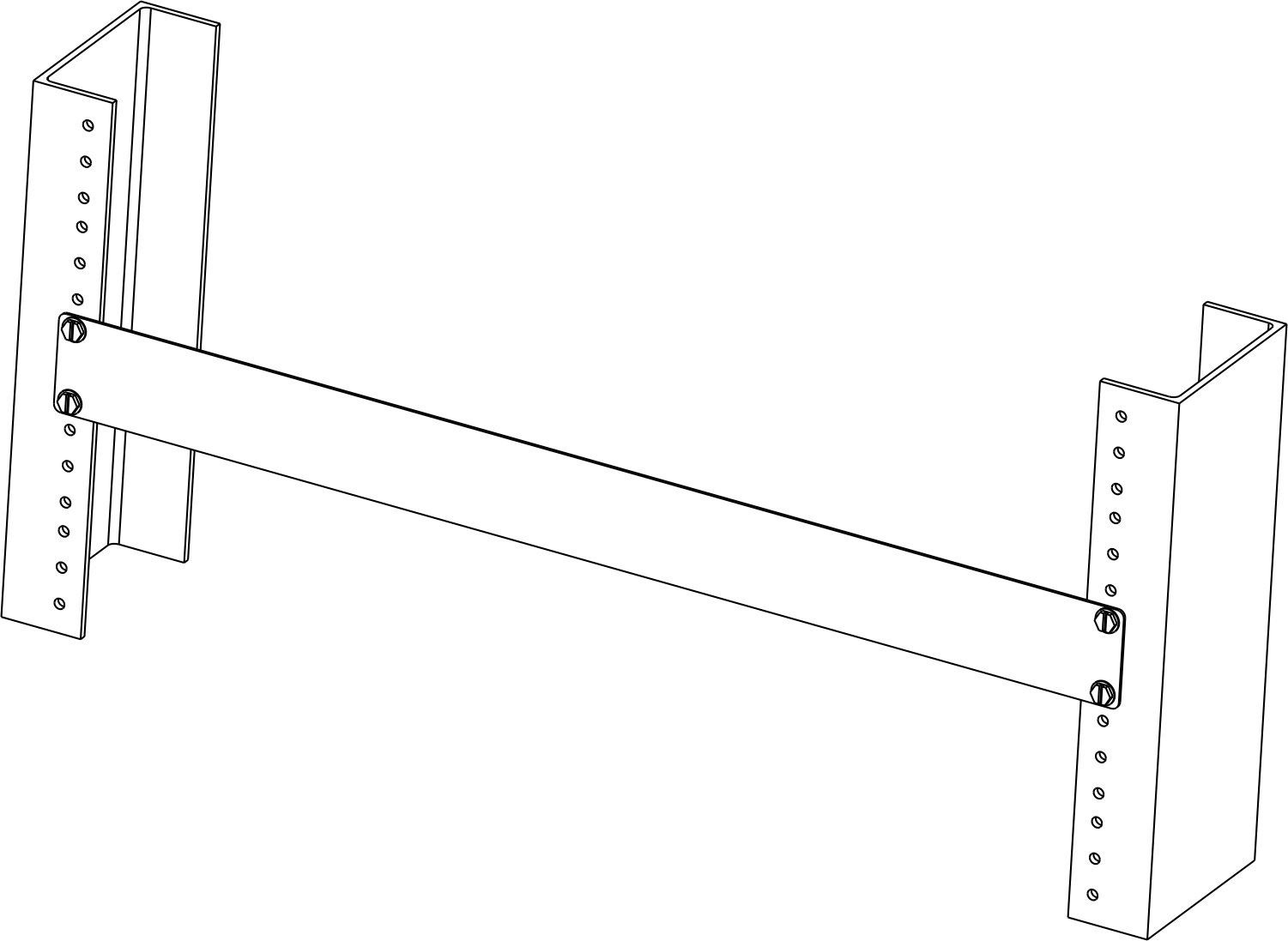

FL19-1U-100
FILLER PLATE, 1RU, 19”
• A blank 1U filler plate for a 19” rack

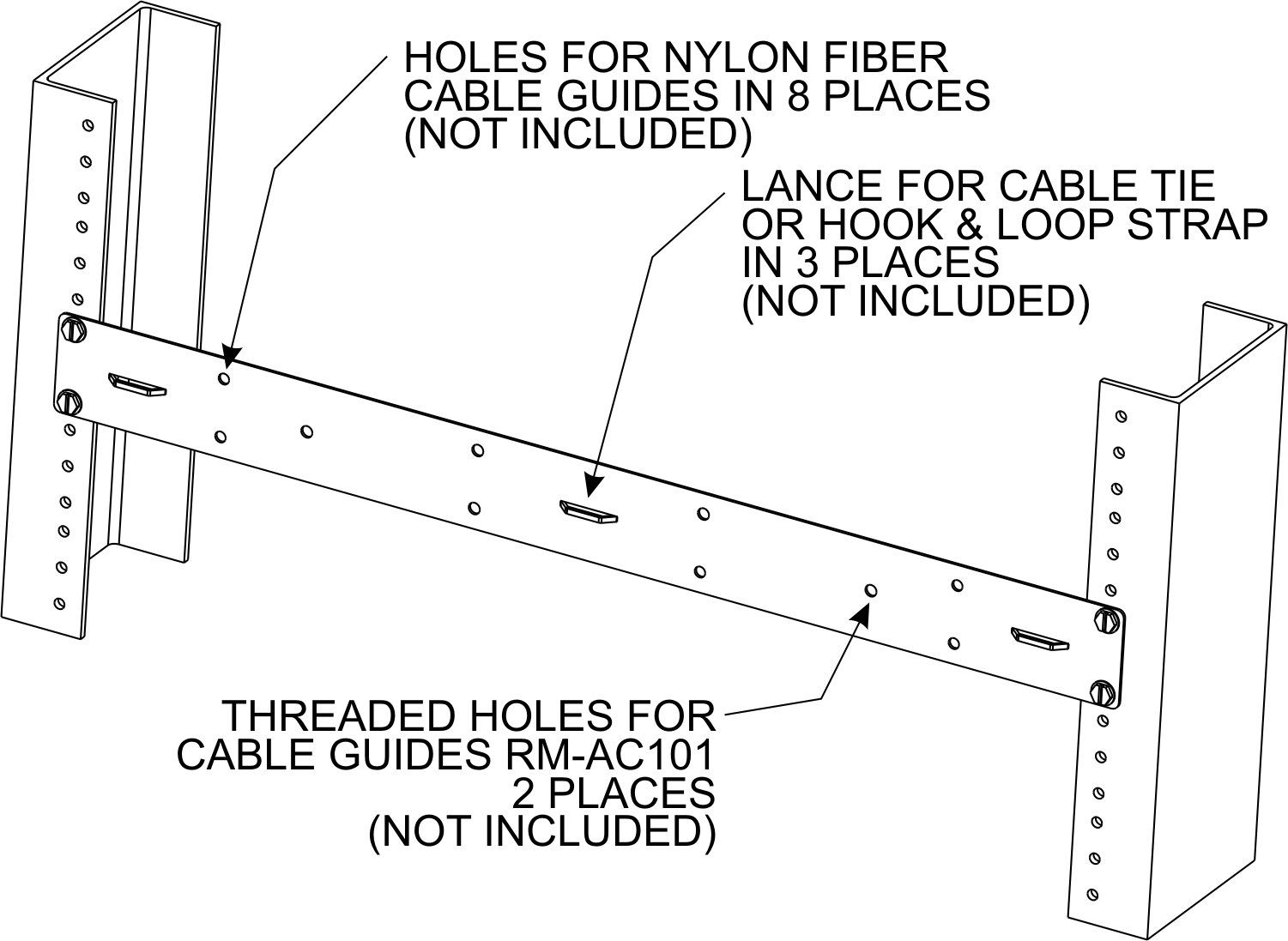

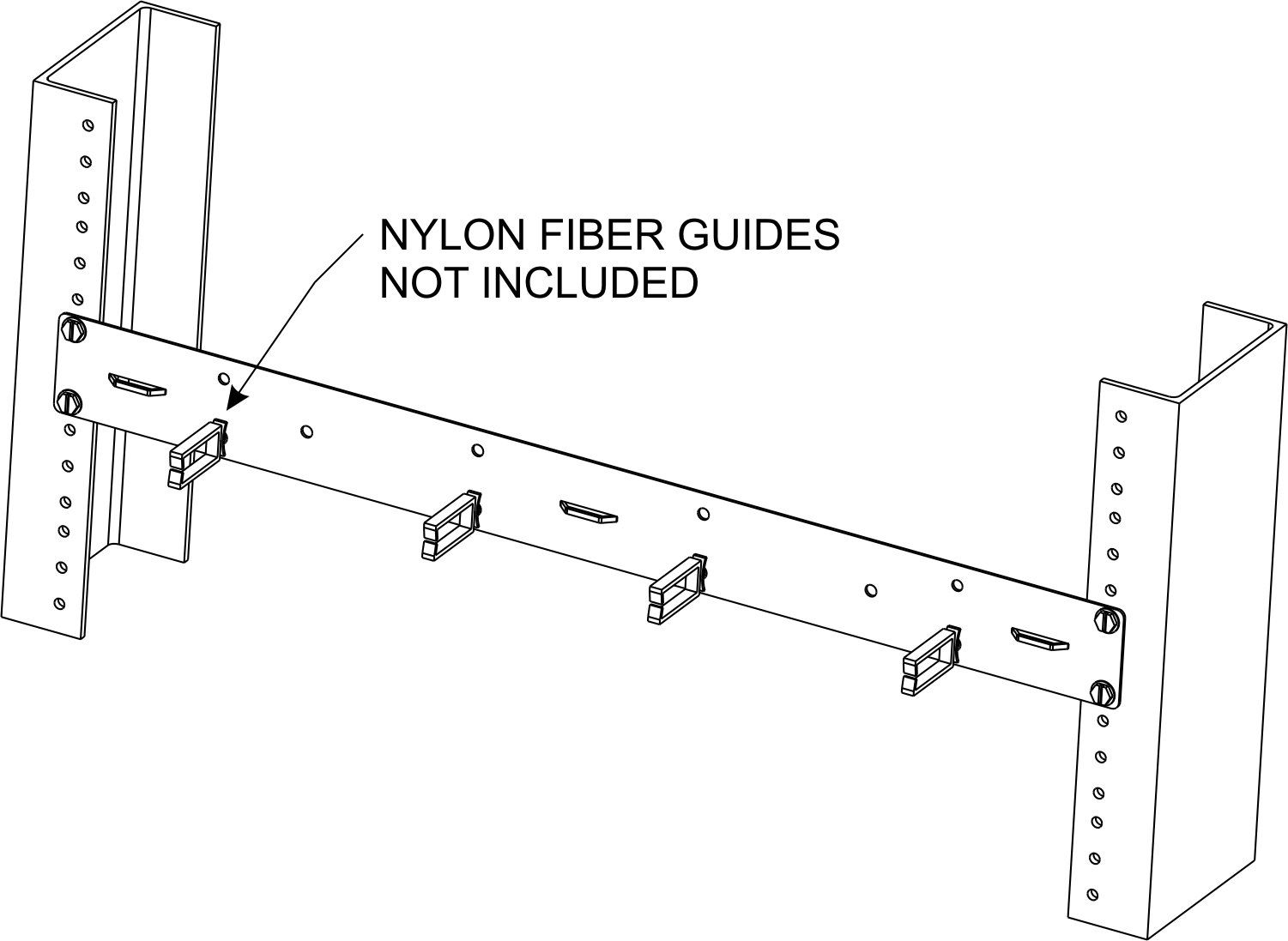

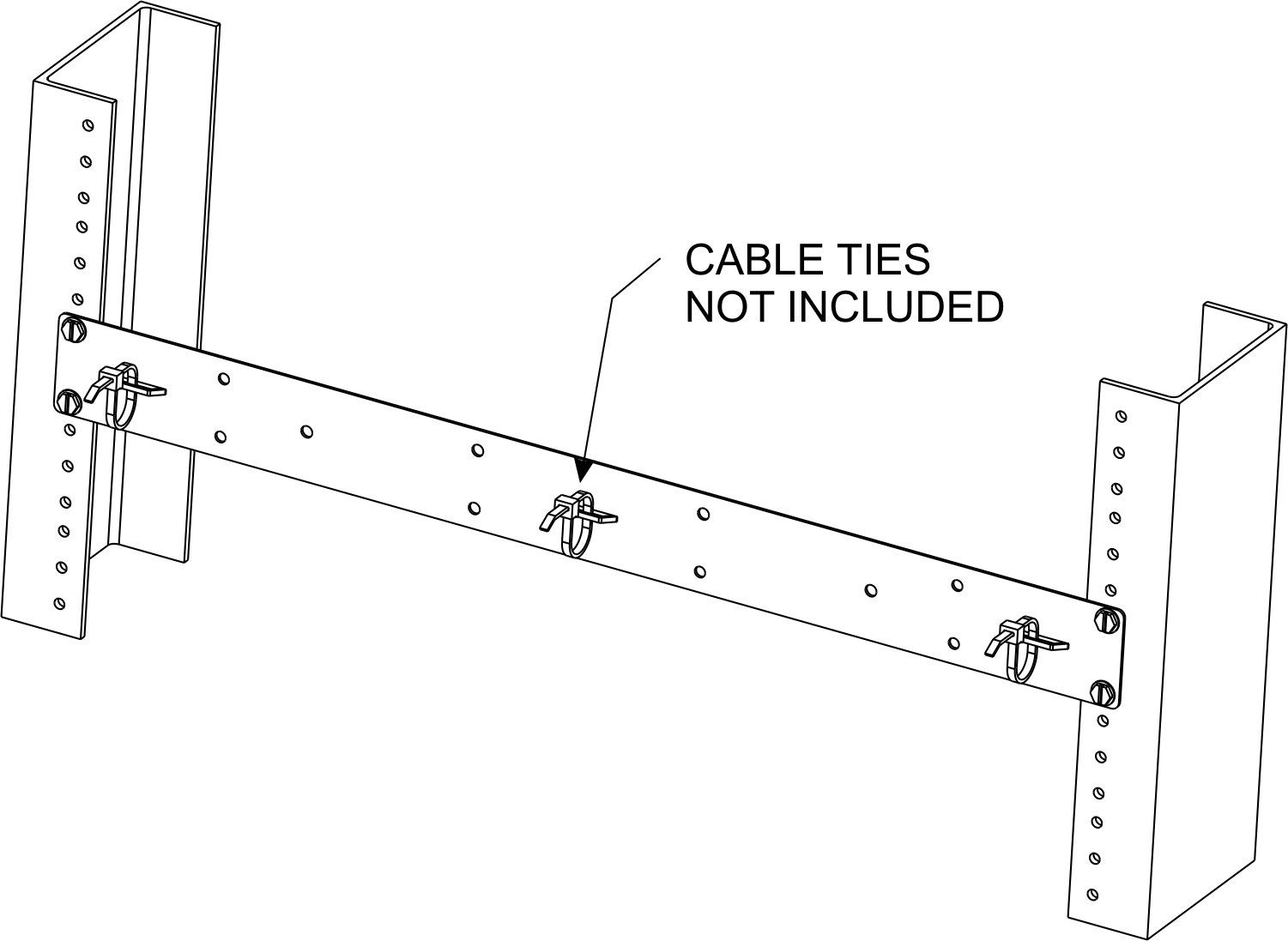

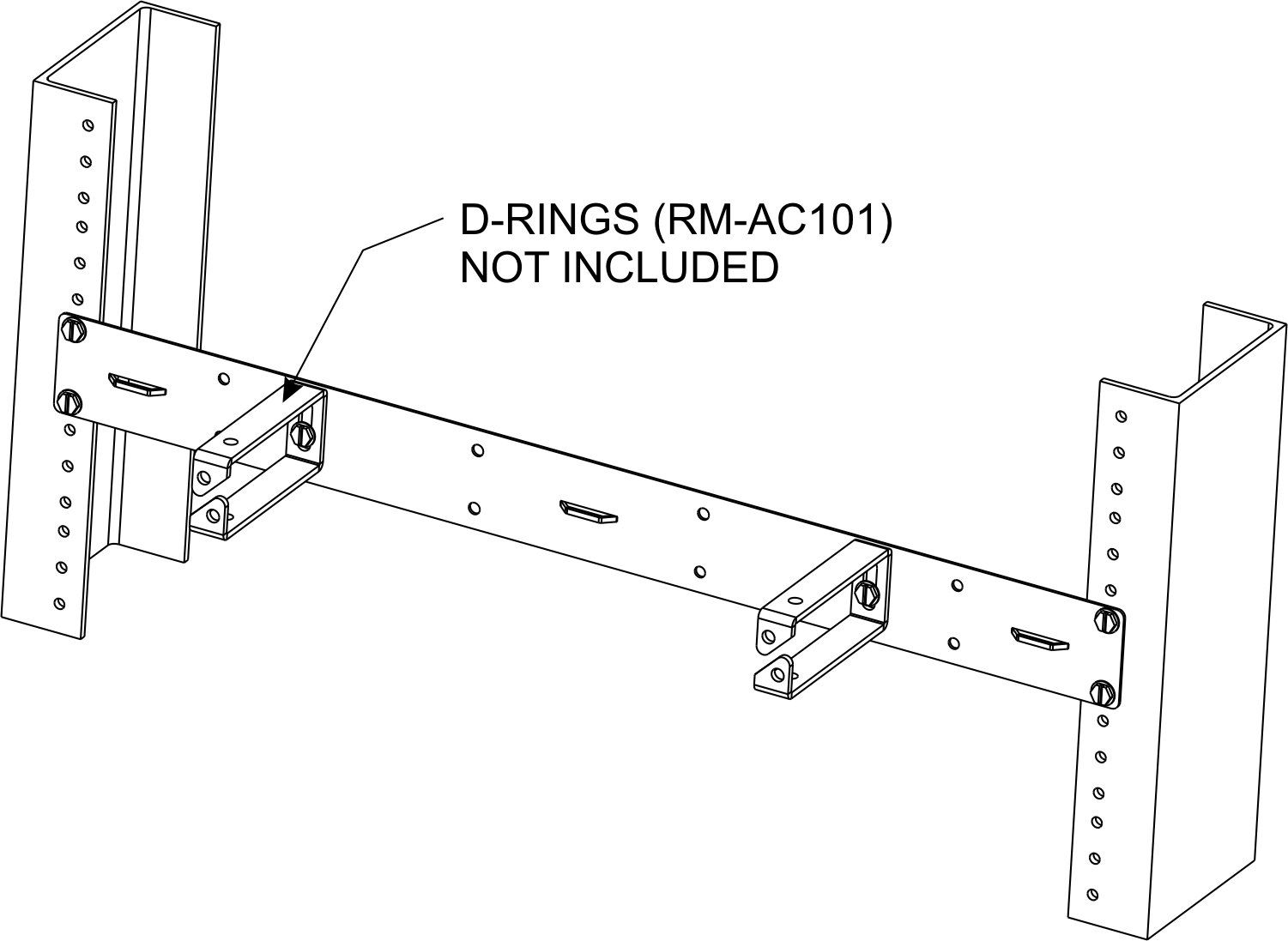

FL19-1U-200
FILLER PLATE, 1RU, 19” WITH CABLE MANAGEMENT OPTIONS
• A 1U filler plate for a 19” rack with cable management options.
• Includes 8 holes for nylon fiber guides, not included.
• Includes 3 locations for cable ties or hook and loop straps, not included.
• Includes 2 threaded holes for D-rings (RM-AC101), not included.

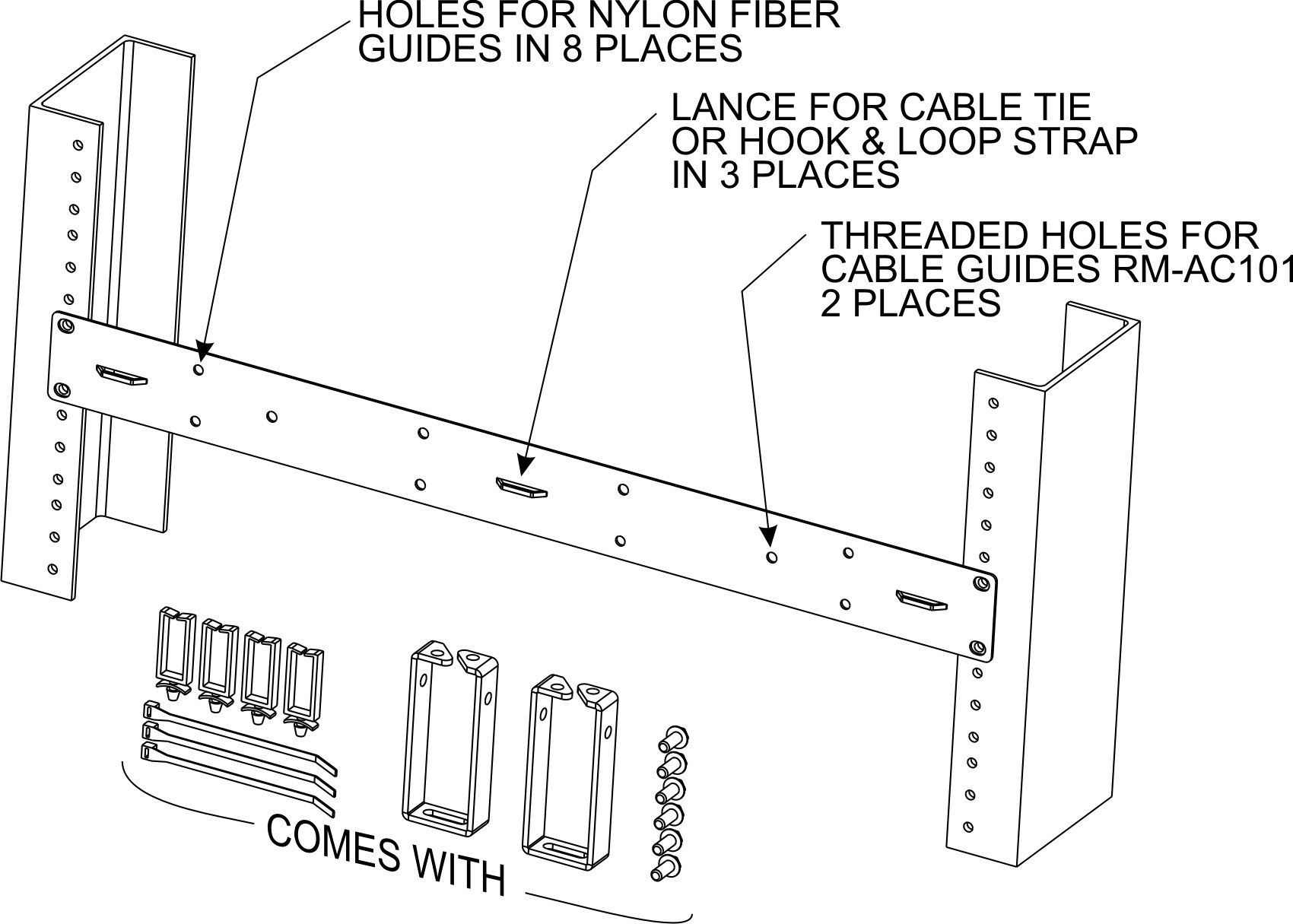

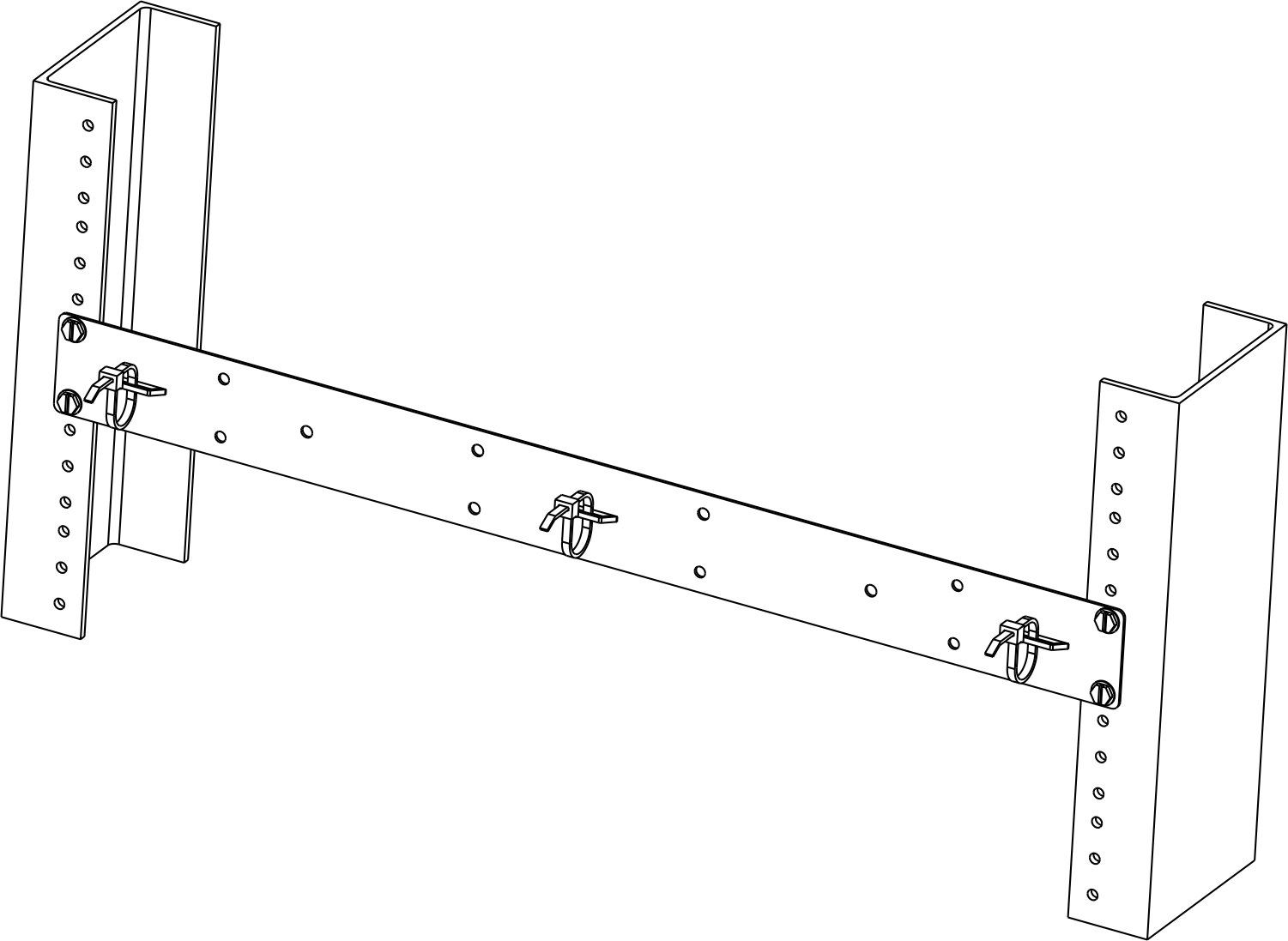

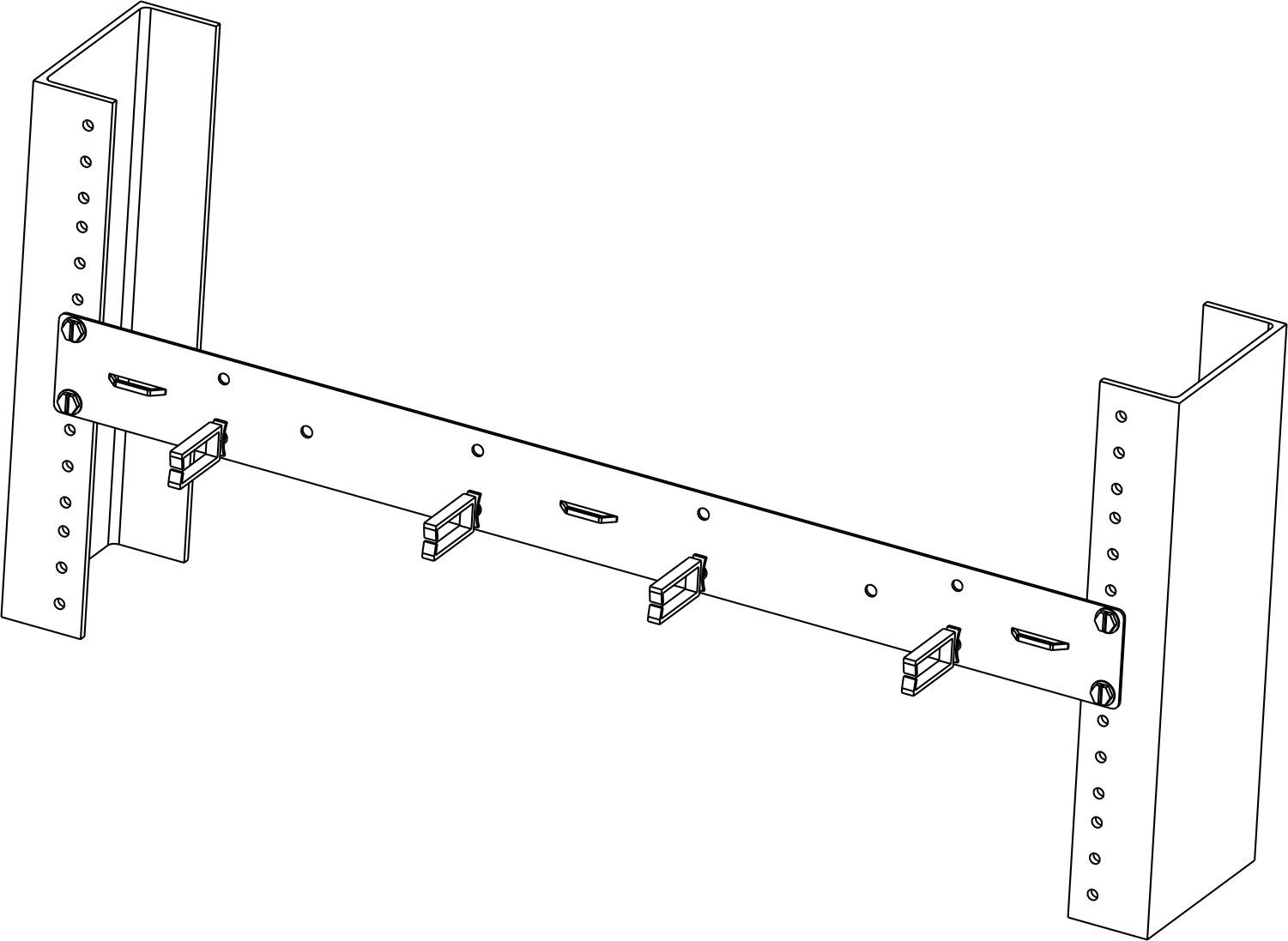

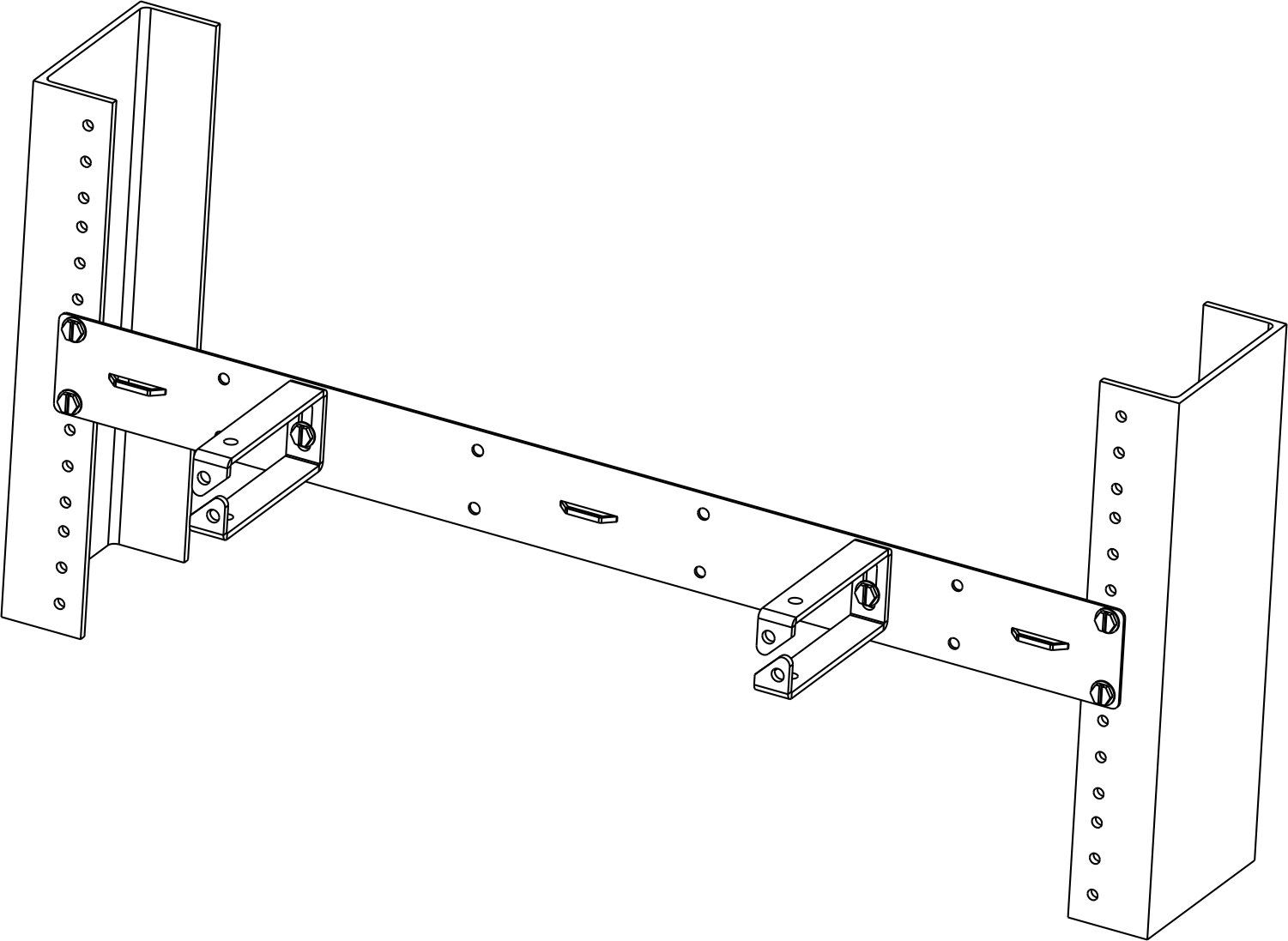

FL19-1U-210
FILLER PLATE, 1RU, 19” WITH CABLE MANAGEMENT OPTIONS AND FIBER GUIDES AND D-RINGS
• A 1U filler plate for a 19” rack with cable management components included.
• Includes 8 holes for nylon fiber guides and 4 nylon fiber guides.
• Includes 3 locations for cable ties or hook and loop straps and 3 cable ties.
• Includes 2 threaded holes D-rings (RM-AC101) and 2 RM-AC101’s.

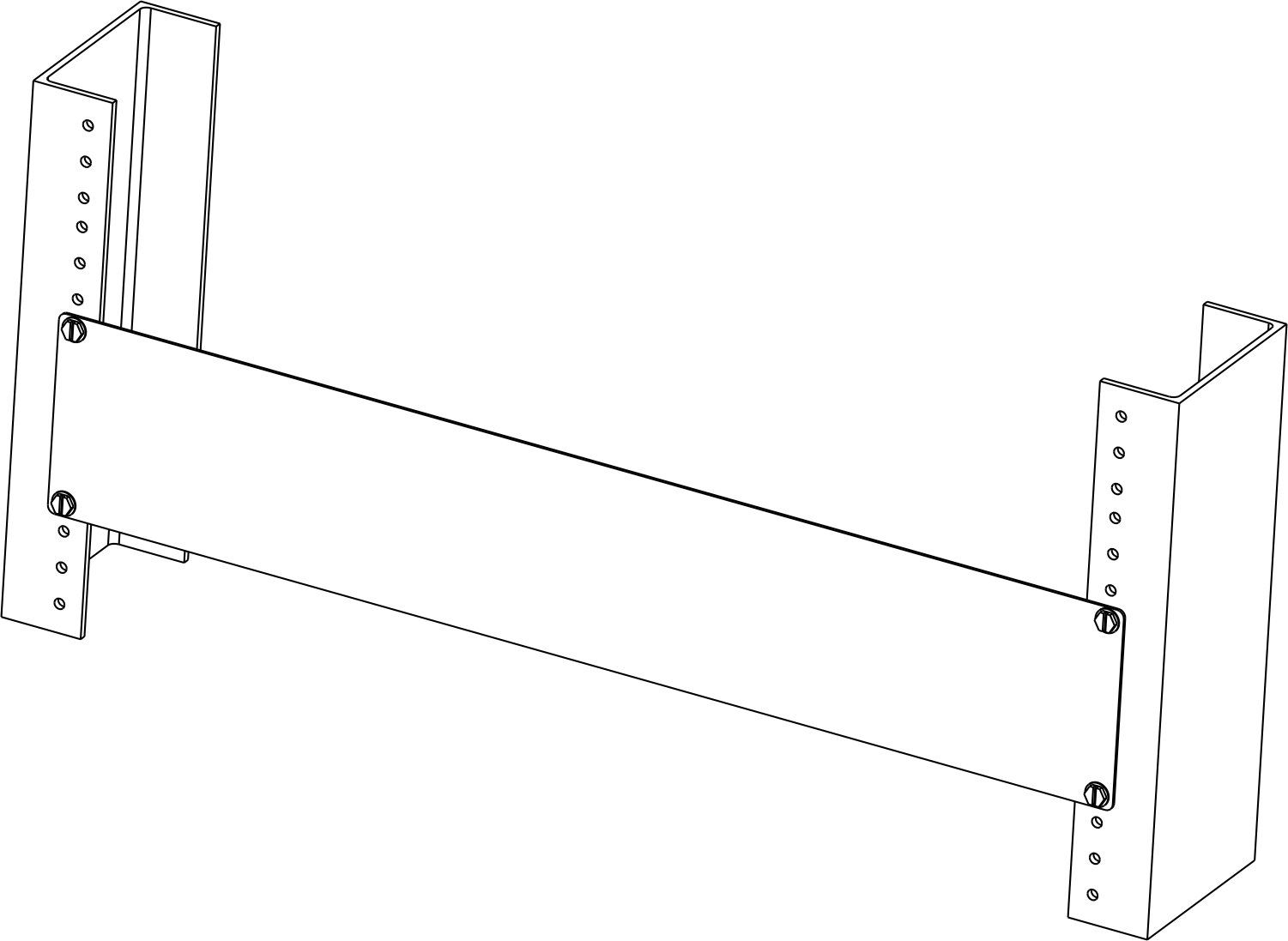

FL19-2U-100
FILLER PLATE, 2RU, 19”
• A blank 2U filler plate for a 19” rack

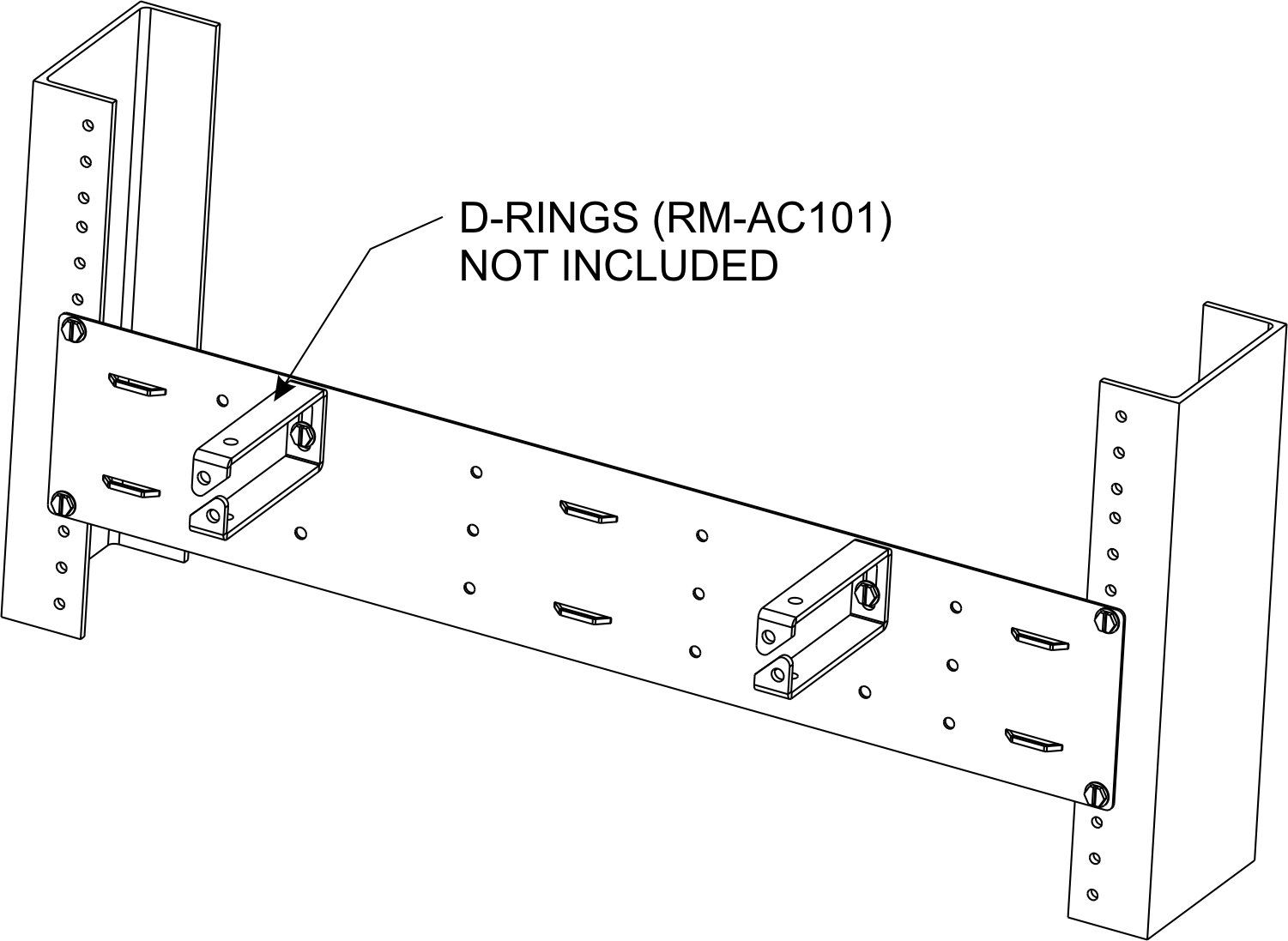

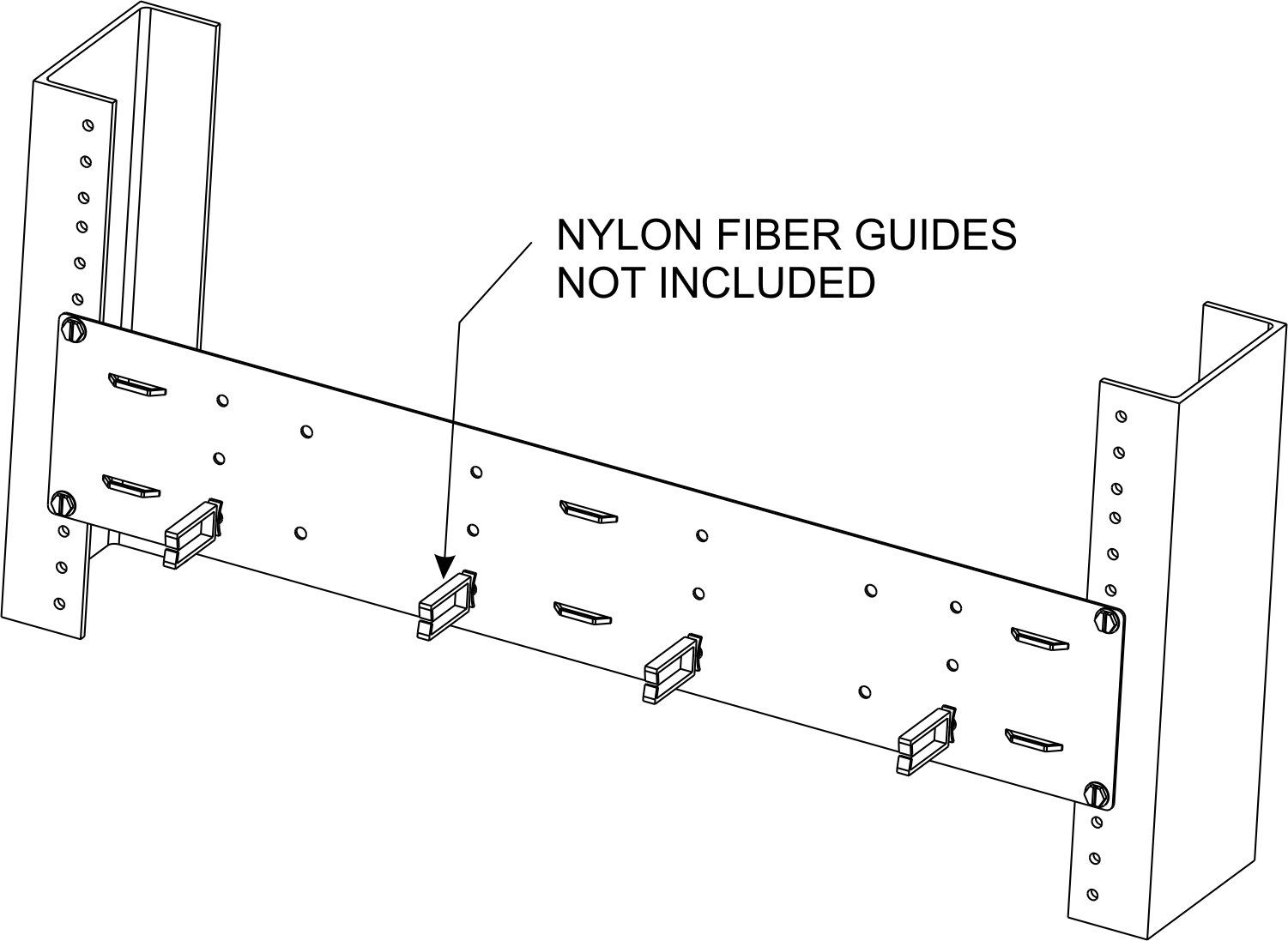

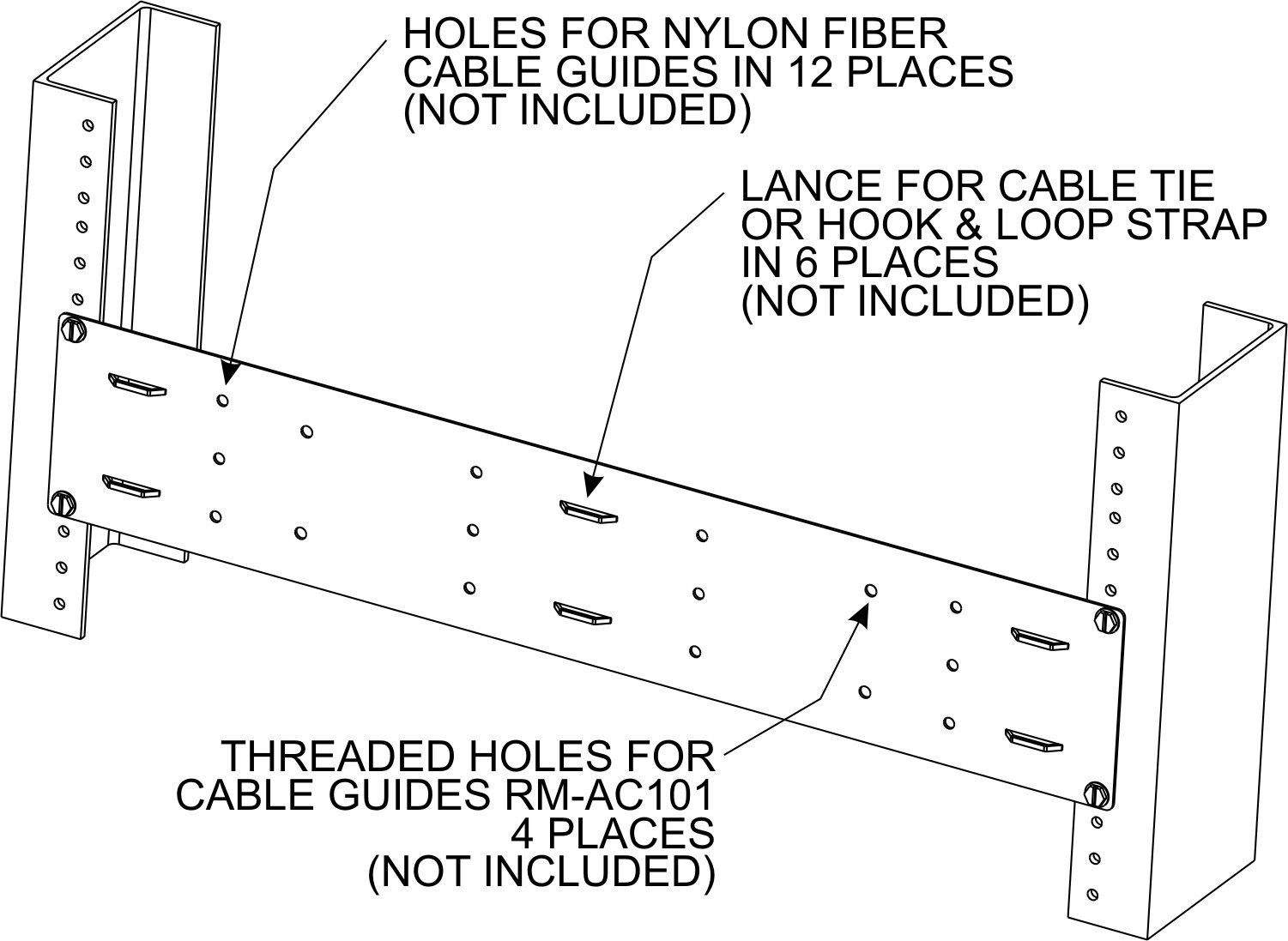

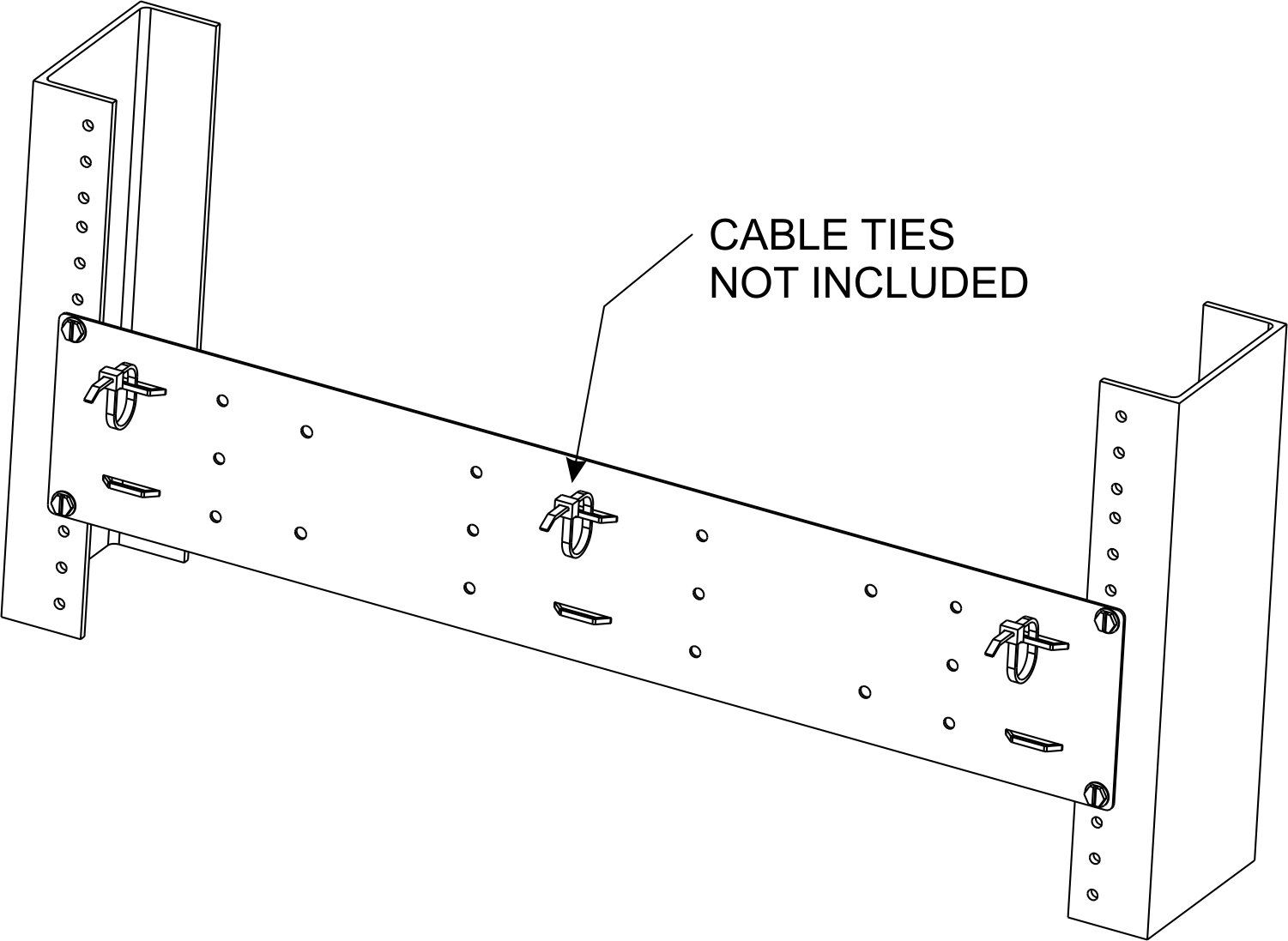

FL19-2U-200
FILLER PLATE, 2RU, 19” WITH CABLE MANAGEMENT OPTIONS
• A 2U filler plate for a 19” rack with cable management options.
• Includes 12 holes for nylon fiber guides, not included.
• Includes 6 locations for cable ties or hook and loop straps, not included.
• Includes 4 threaded holes for D-rings (RM-AC101), not included.

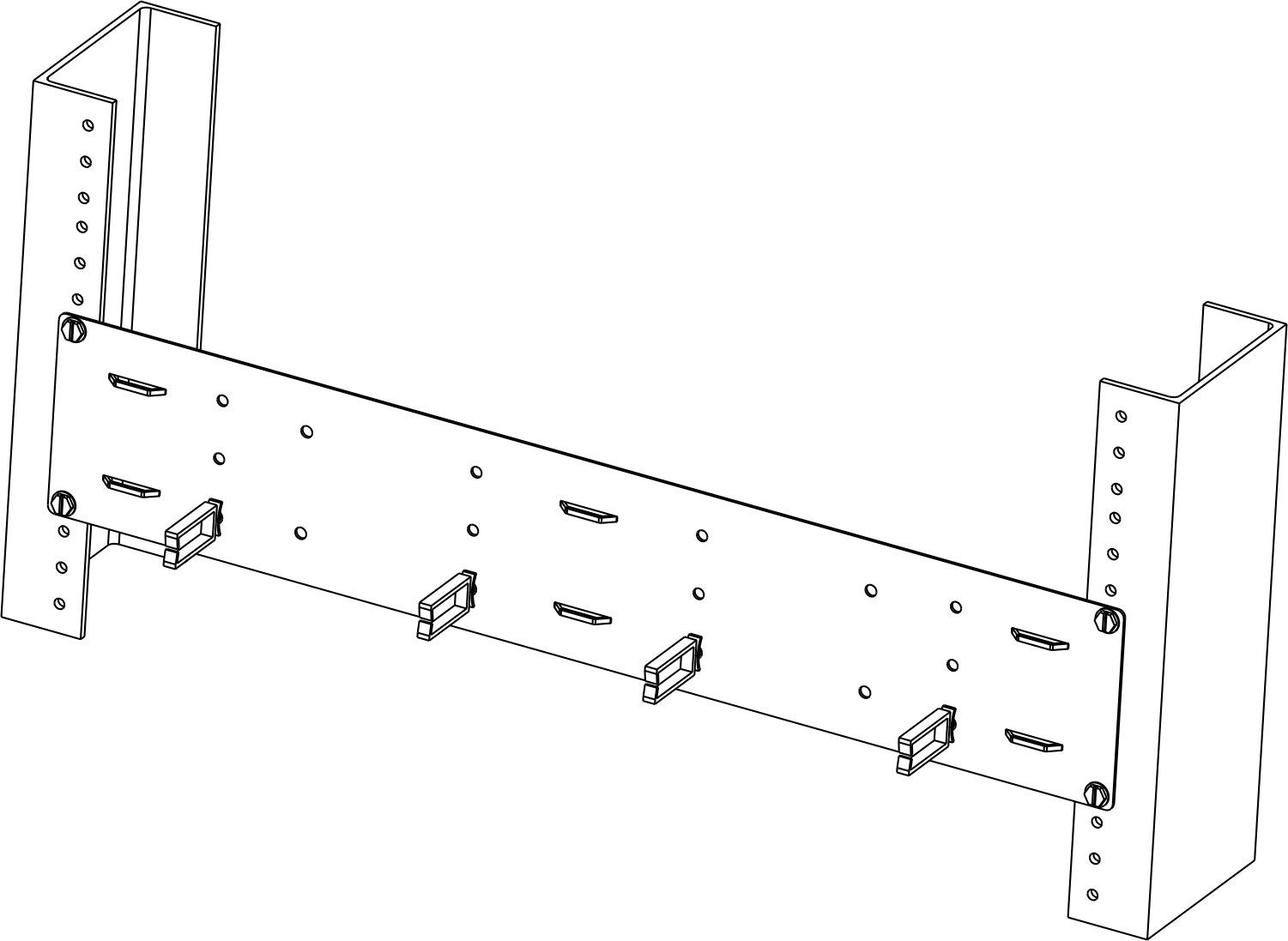

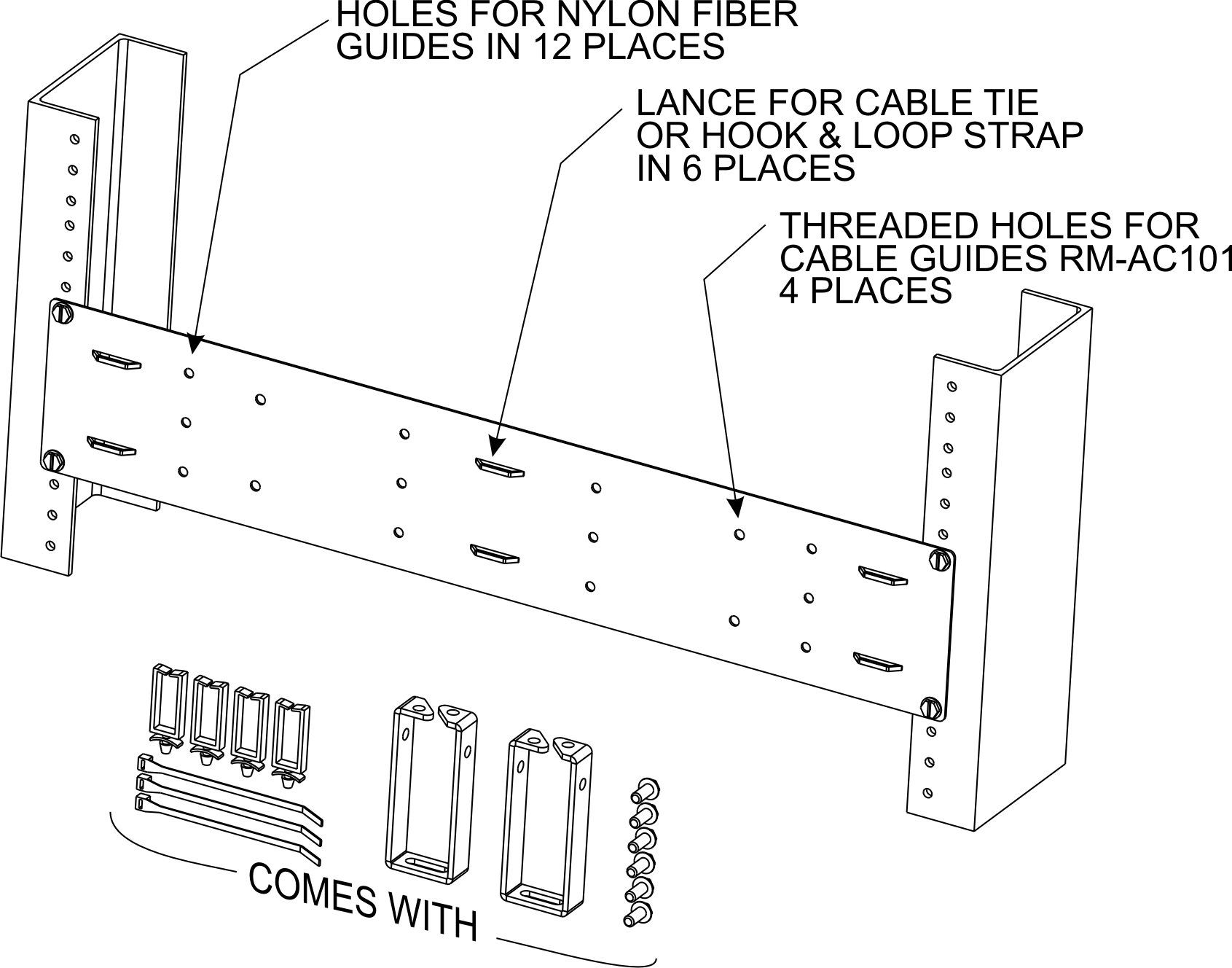

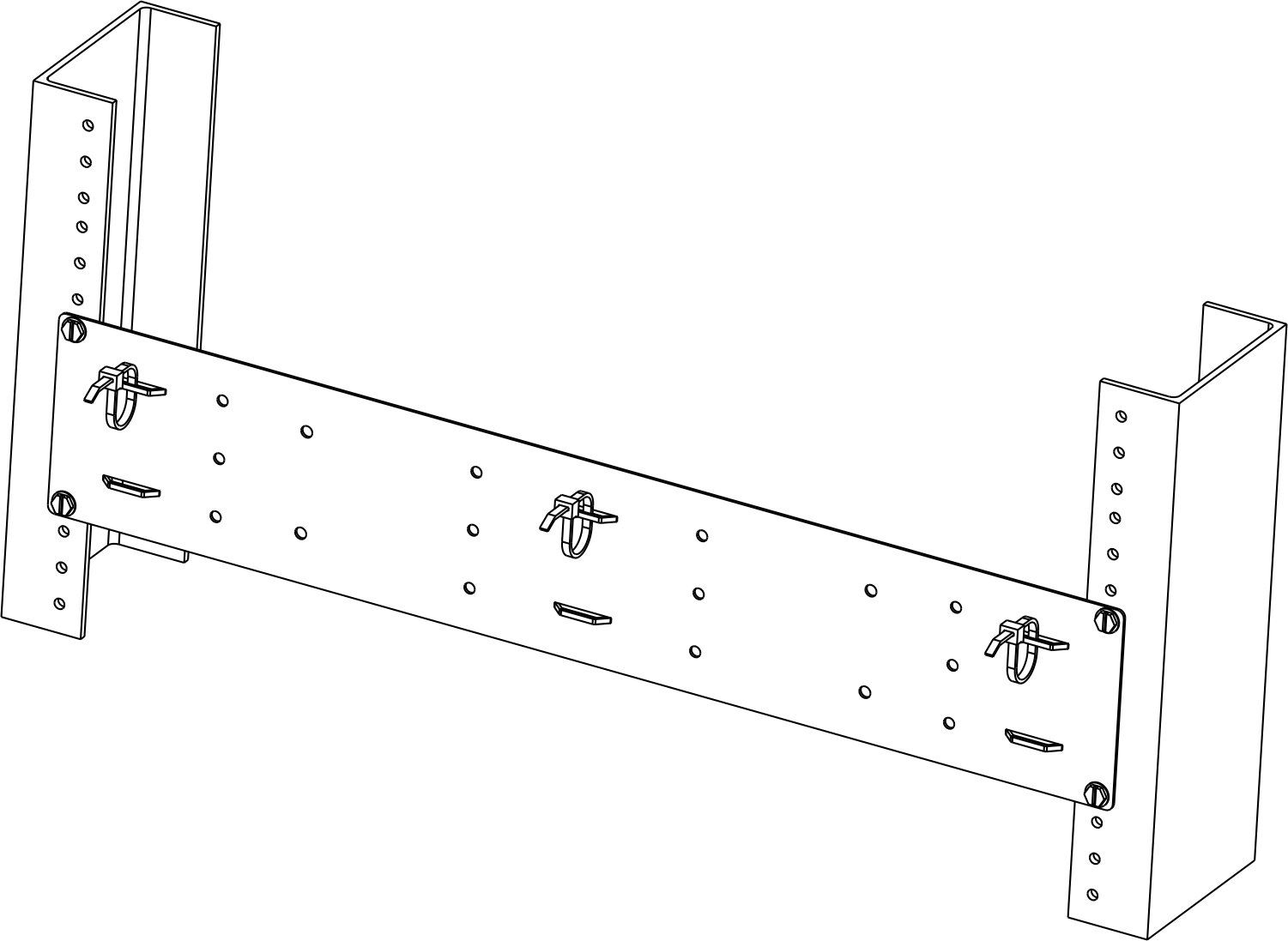

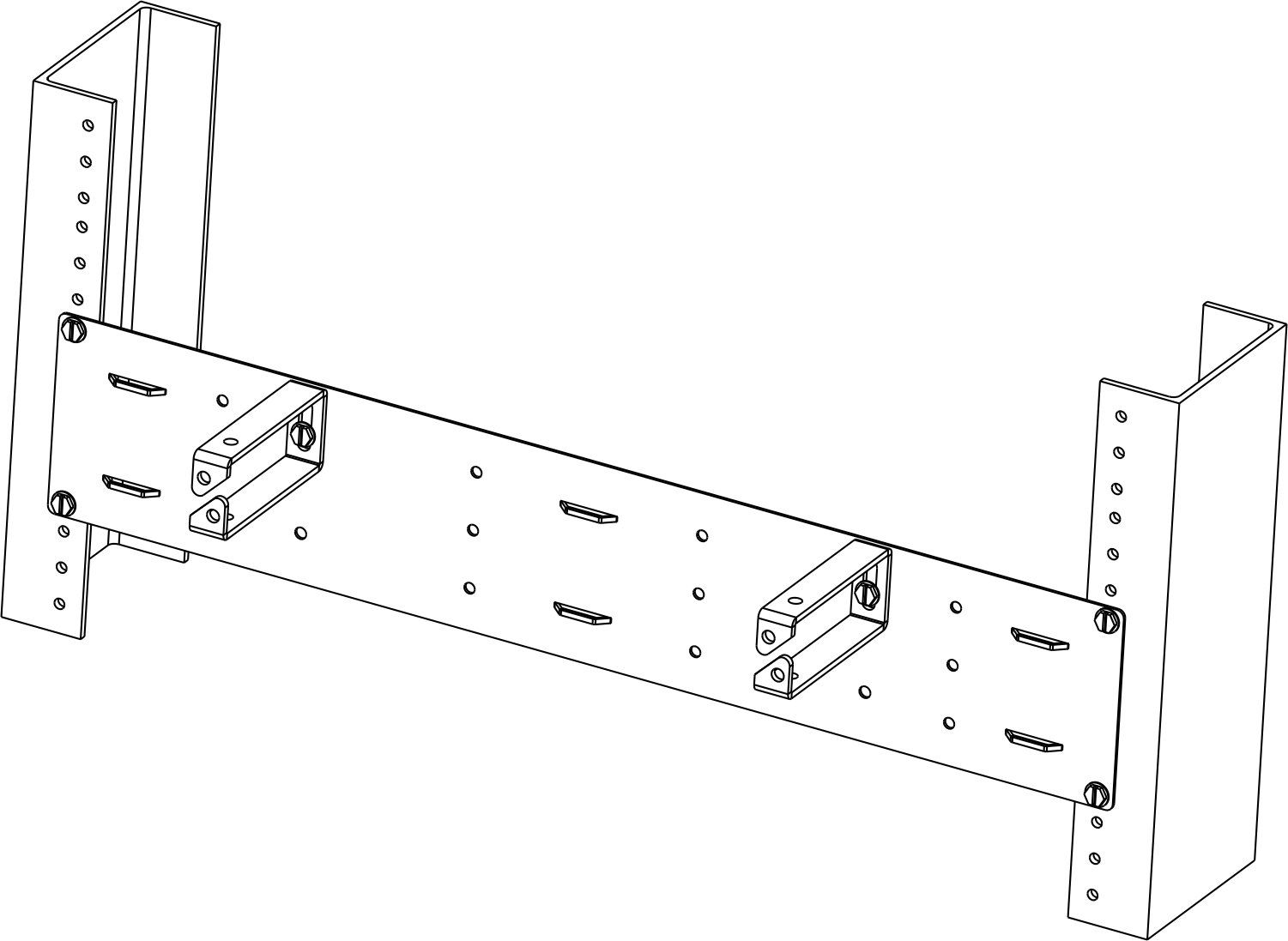

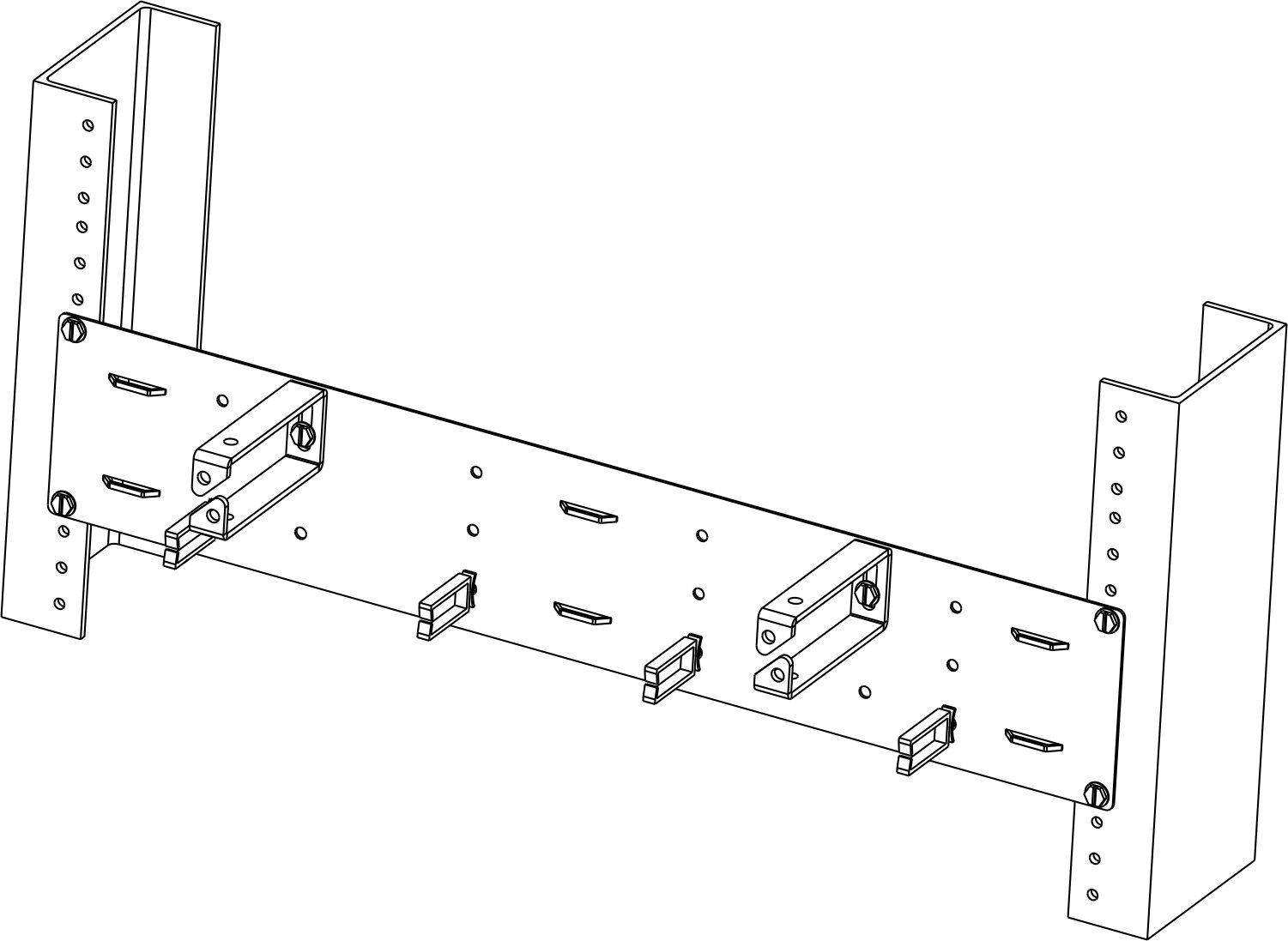

FL19-2U-210
FILLER PLATE, 2RU, 19” WITH CABLE MANAGEMENT OPTIONS AND FIBER GUIDES AND D-RINGS
• A 2U filler plate for a 19” rack with cable management components included.
• Includes 12 holes for nylon fiber guides and 4 nylon fiber guides.
• Includes 6 locations for cable ties or hook and loop straps and 3 cable ties.
• Includes 4 threaded holes D-rings (RM-AC101) and 2 RM-AC101’s.

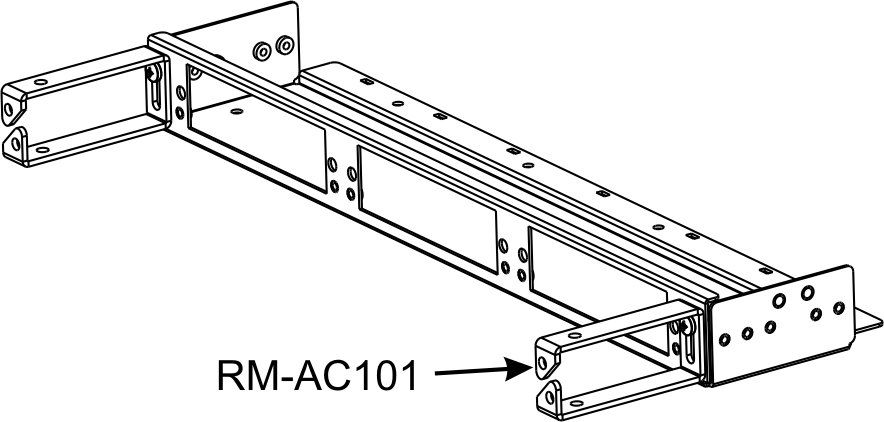

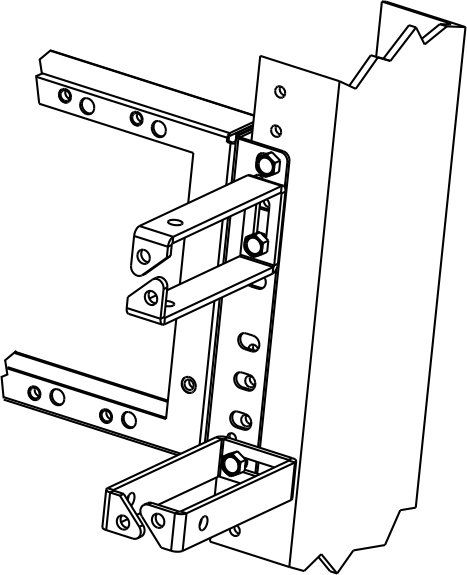

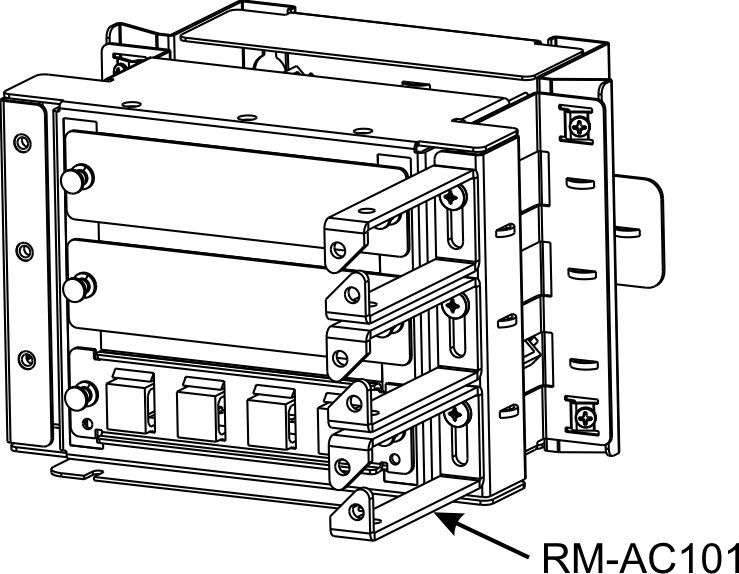

RM-AC101
UNIVERSAL D-RING
• A 1U tall D-ring for cable management.
• Universal with multiple locations and ways to mount.

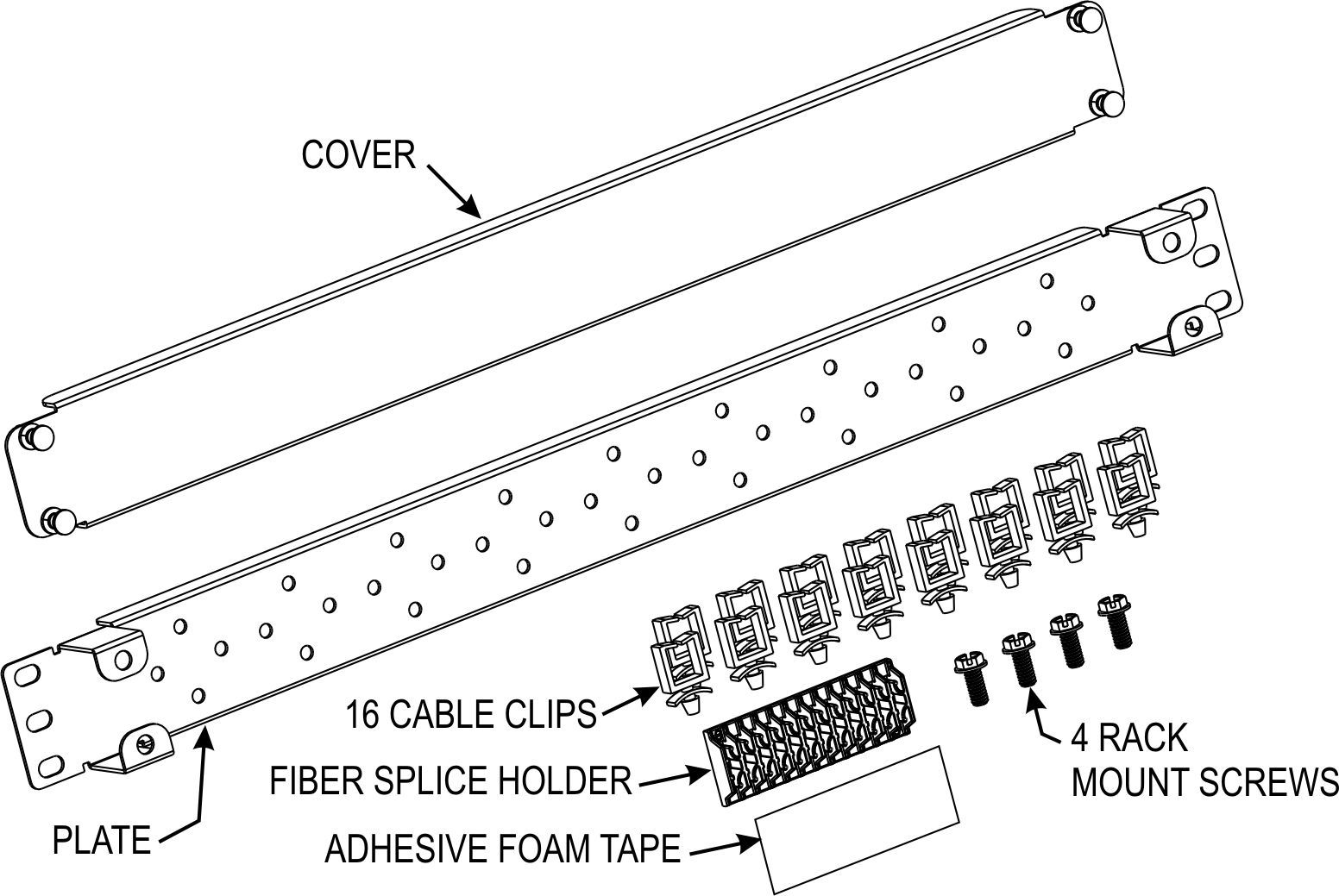

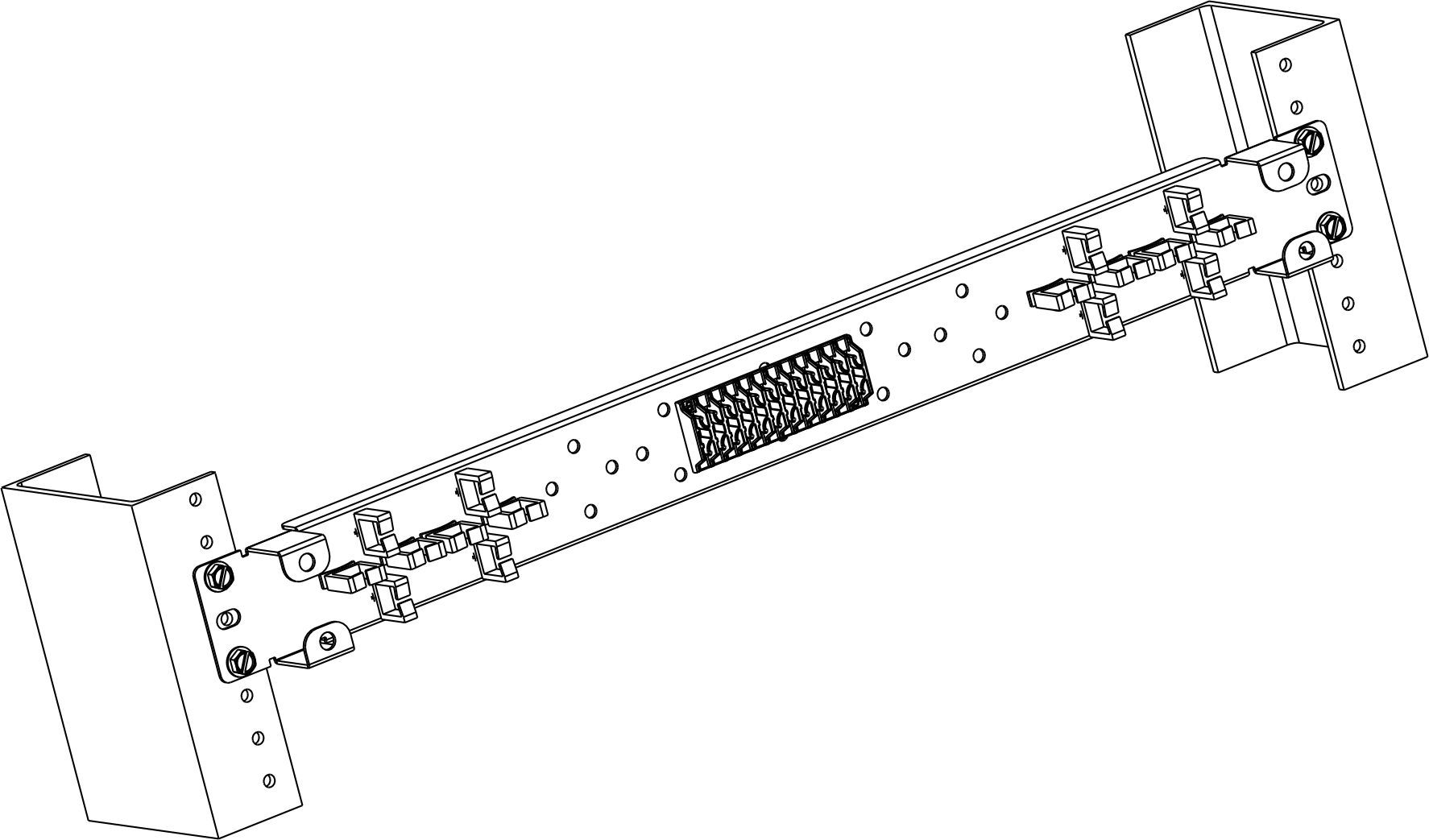

RCMP-100
RACK CABLE MANAGEMENT PLATE, 1RU
• Fits 19" racks.
• Comes with cover.
• Comes with 16 cable guides and 24 position splice tray.
• Comes with (4) 12-24 mounting screws.
• Customer can configure as needed.

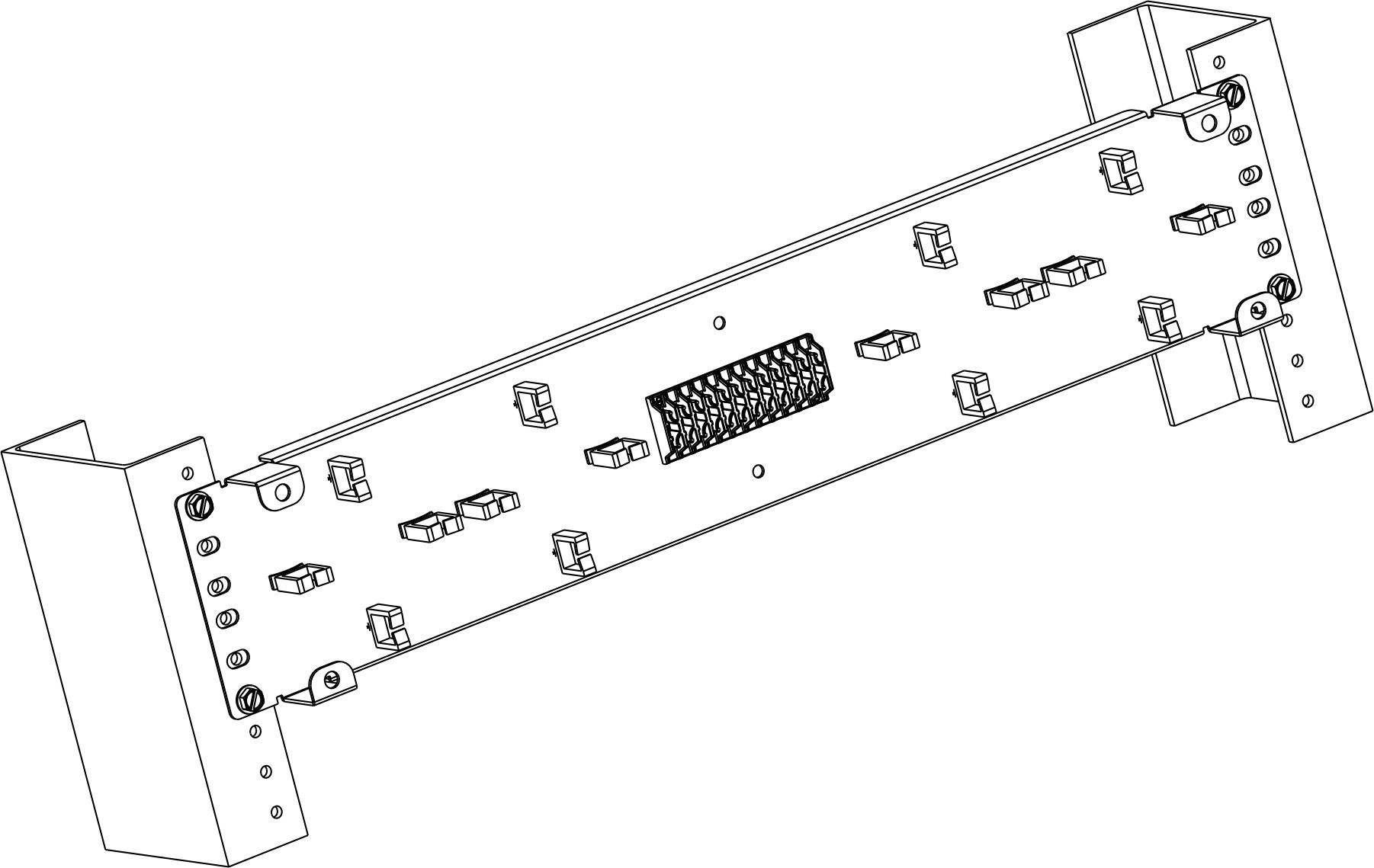

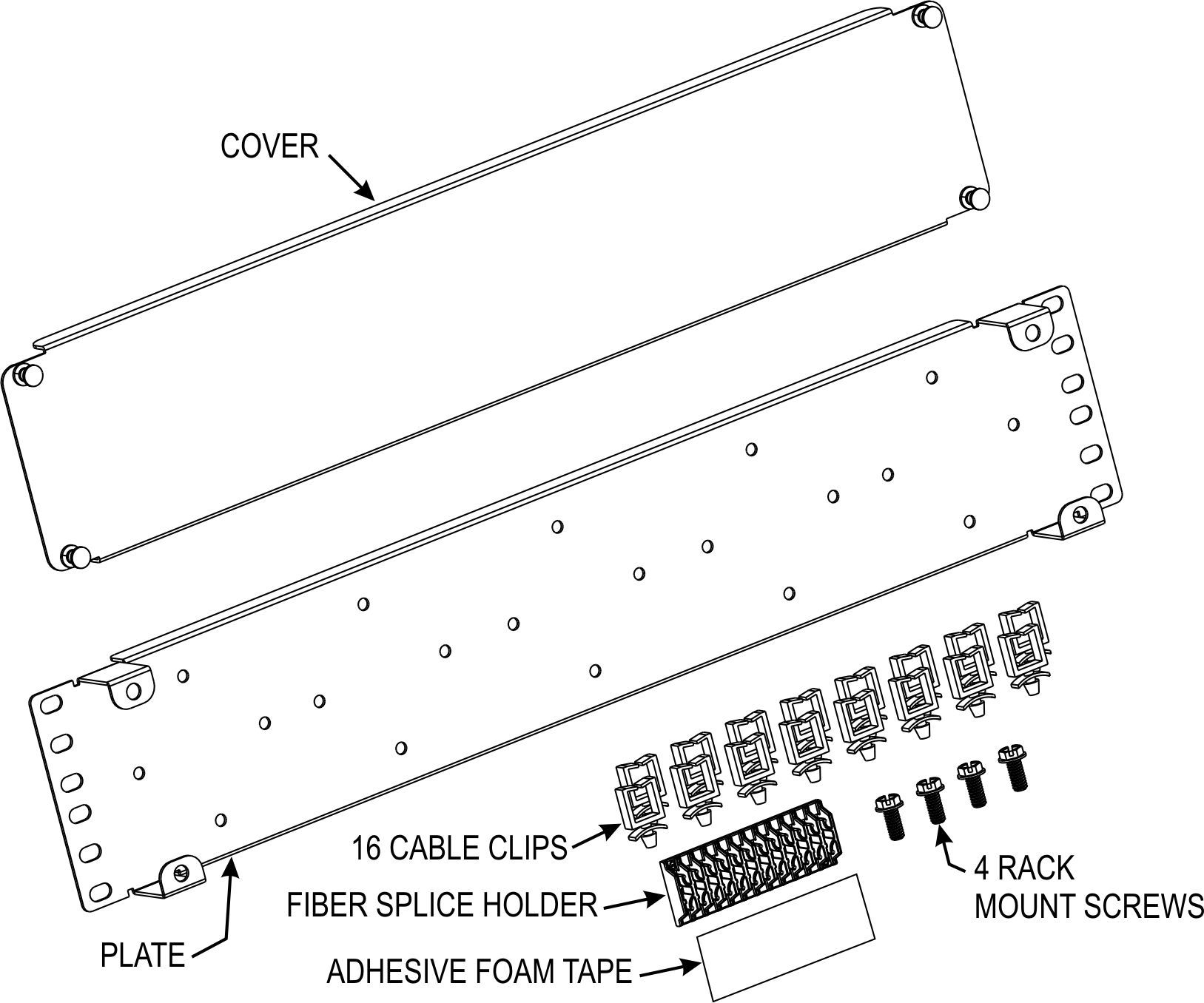

RCMP-200
RACK CABLE MANAGEMENT PLATE, 2RU
• Fits 19" racks.
• Comes with cover.
• Comes with 16 cable guides and 24 position splice tray.
• Comes with (4) 12-24 mounting screws.
• Customer can configure as needed.

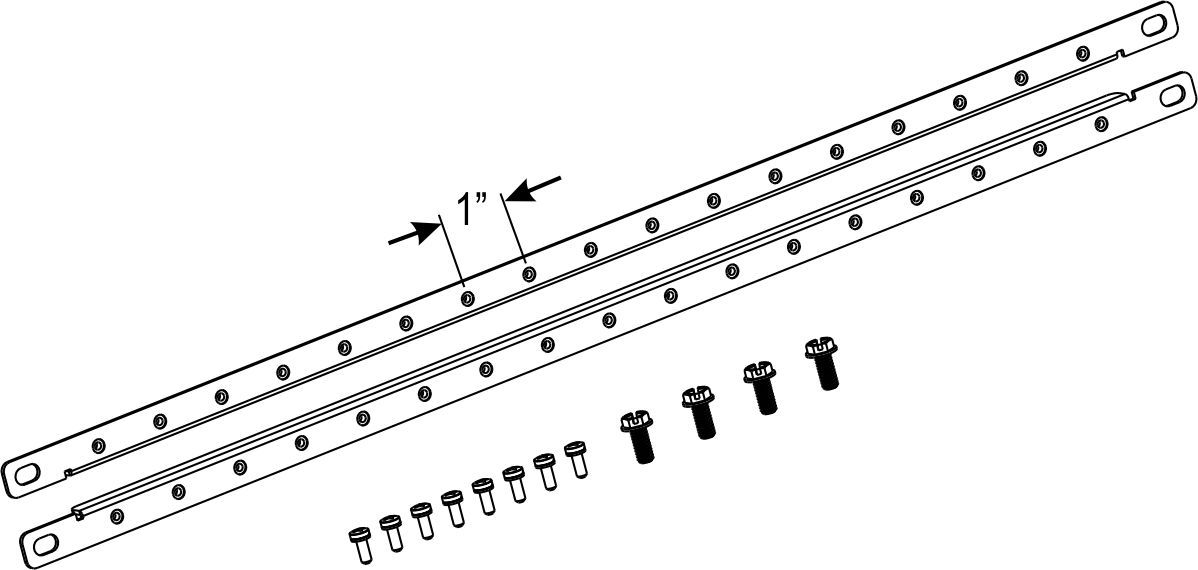

RMB19-000
MOUNTING BAR FOR 19" RACK
• Fits 19" racks.
• Standard 1" spaced 6-32 threaded holes.
• Comes with (4) 12-24 mounting screws and (8) 6-32 screws.

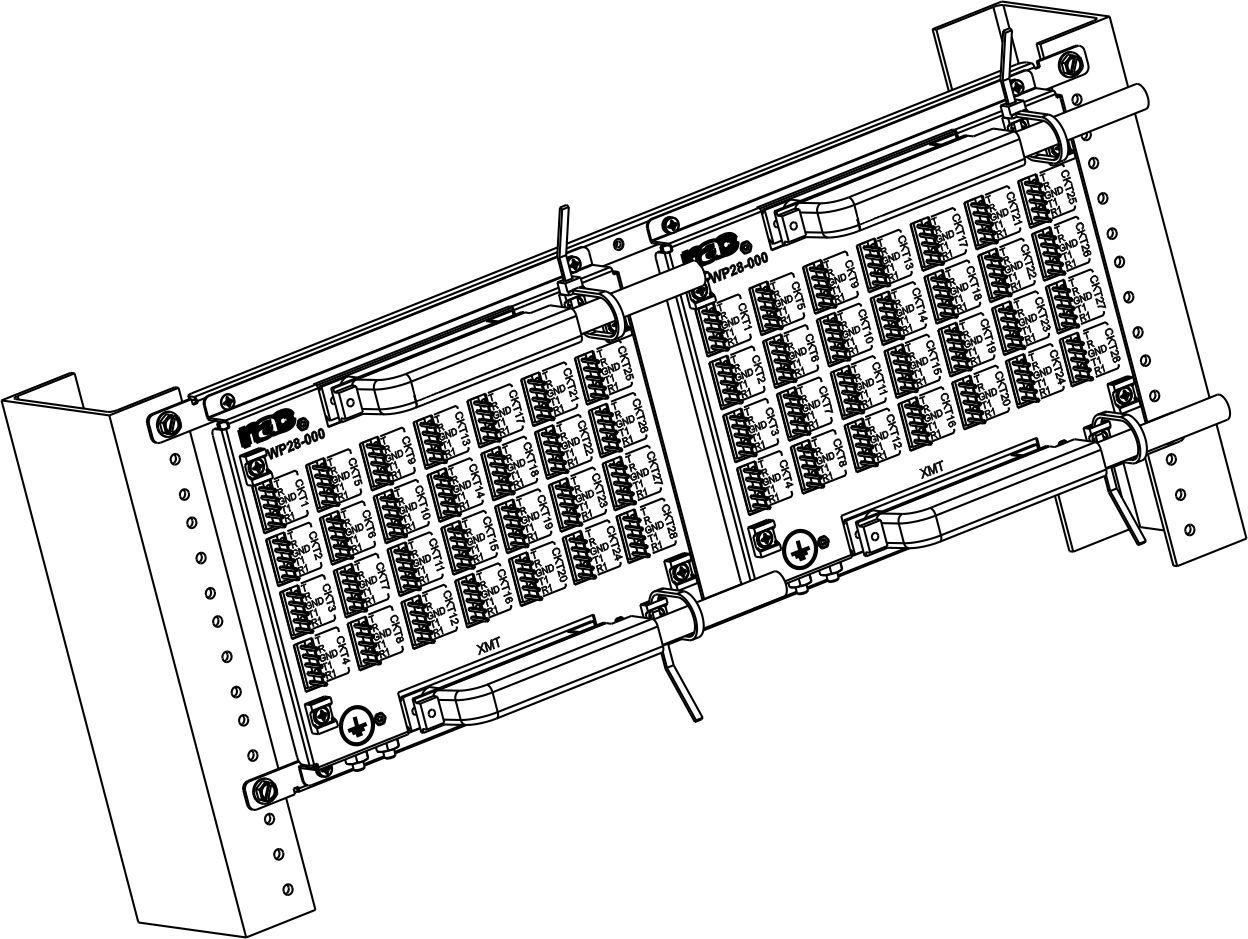

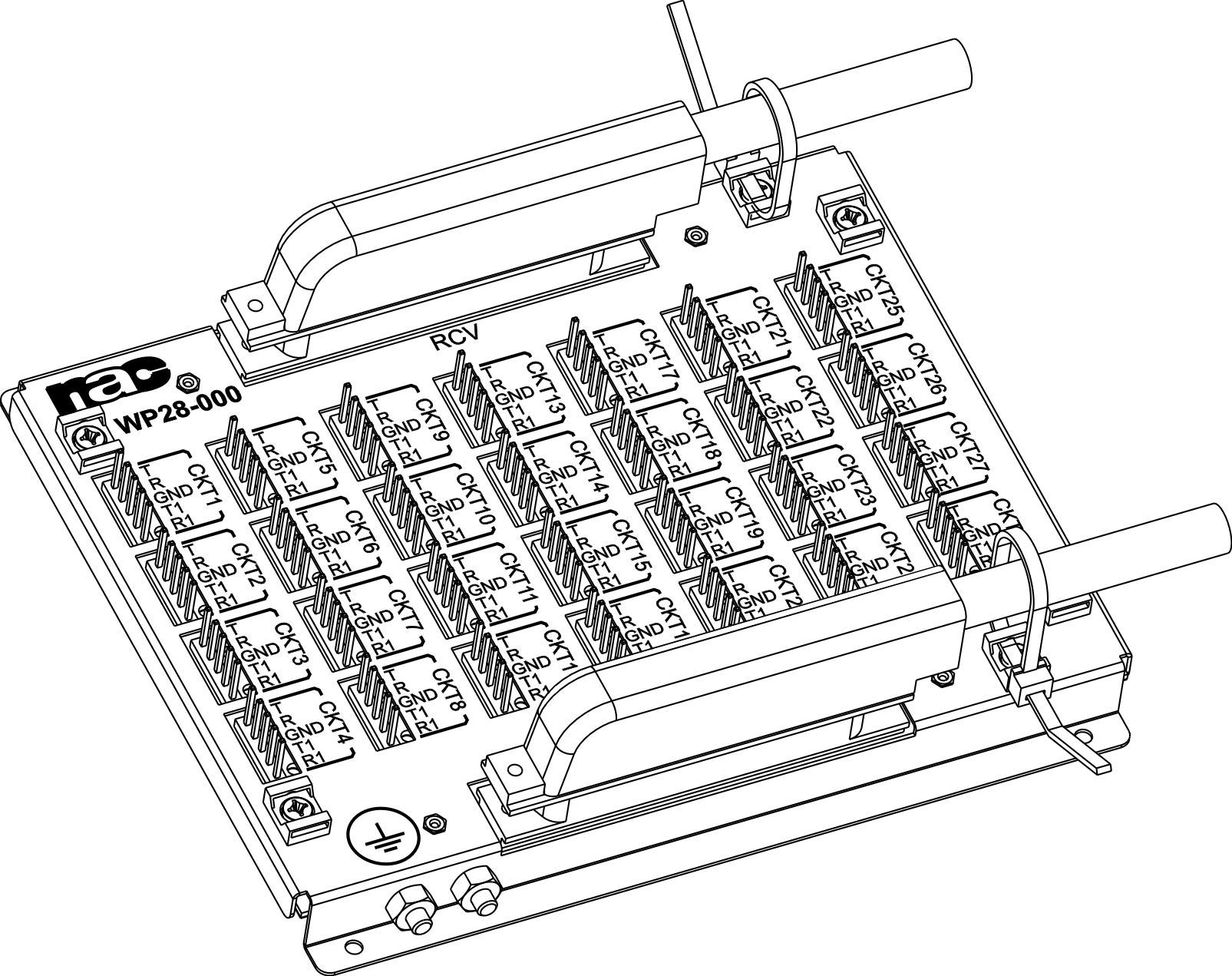

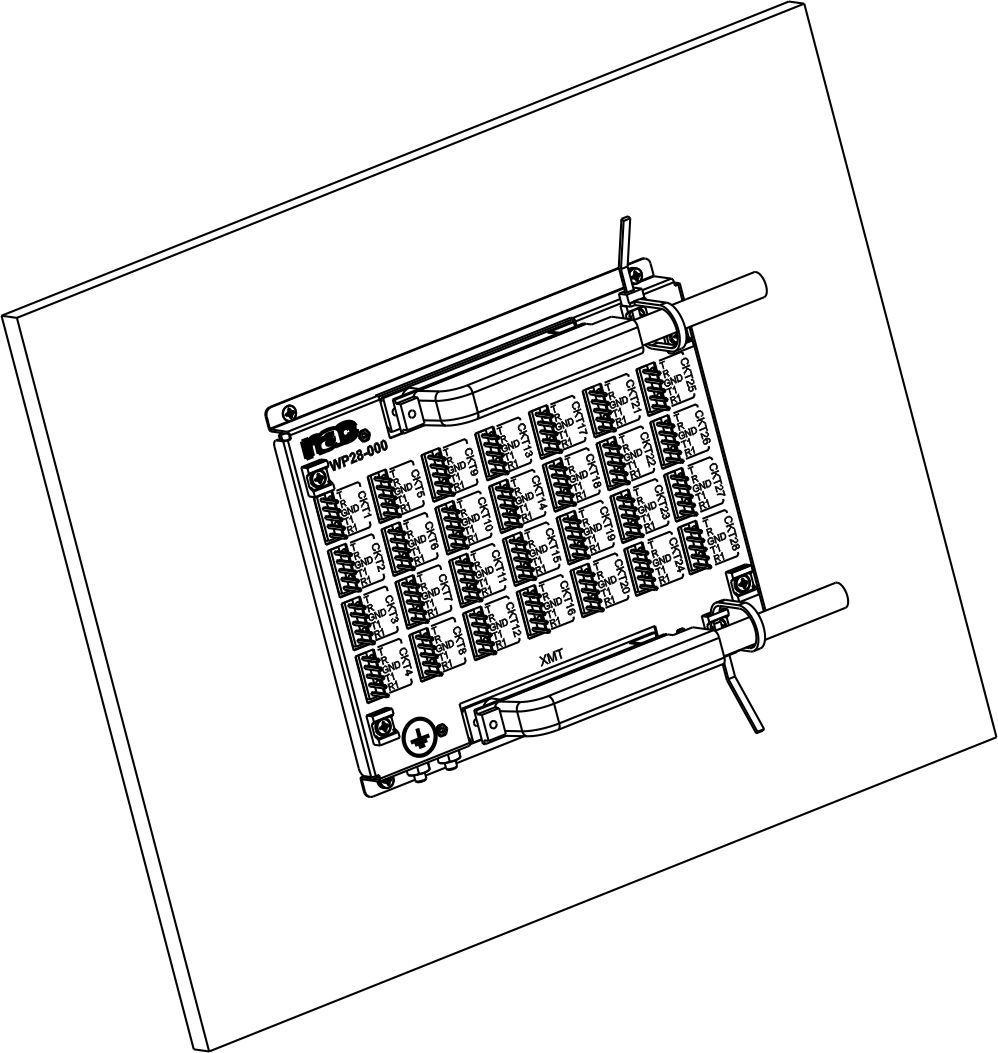

WP28-000
28 POSITION WIRE-WRAP PANEL WITH 32-PAIR CONNECTORS
• The WP28-000 breaks out 28 position to Wire-Wrap post.
• Each post has a ground pin if required.
• Panel can be wall mounted or 19" rack mounted using the RMB19-000 bars.
