Enterprise Interconnect Enclosures
Enterprise Interconnect Enclosures

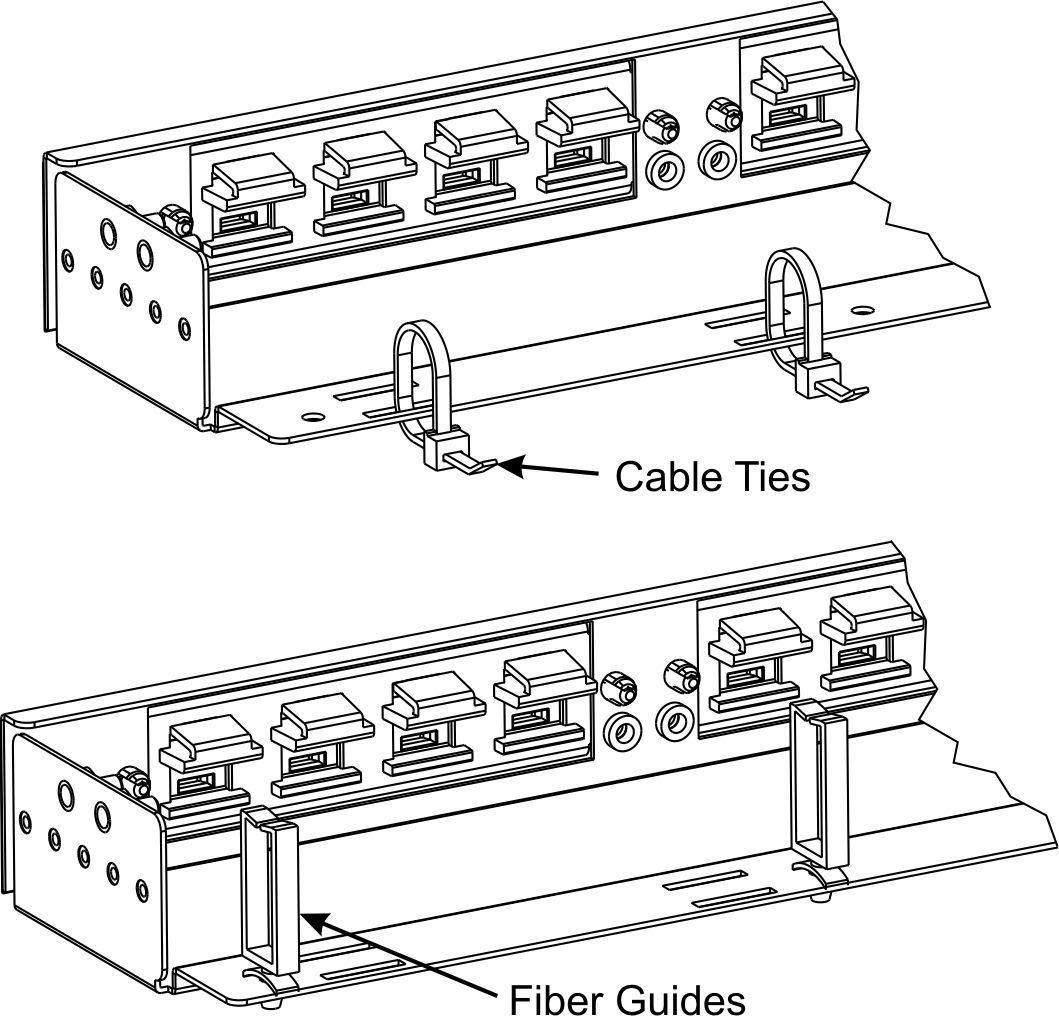

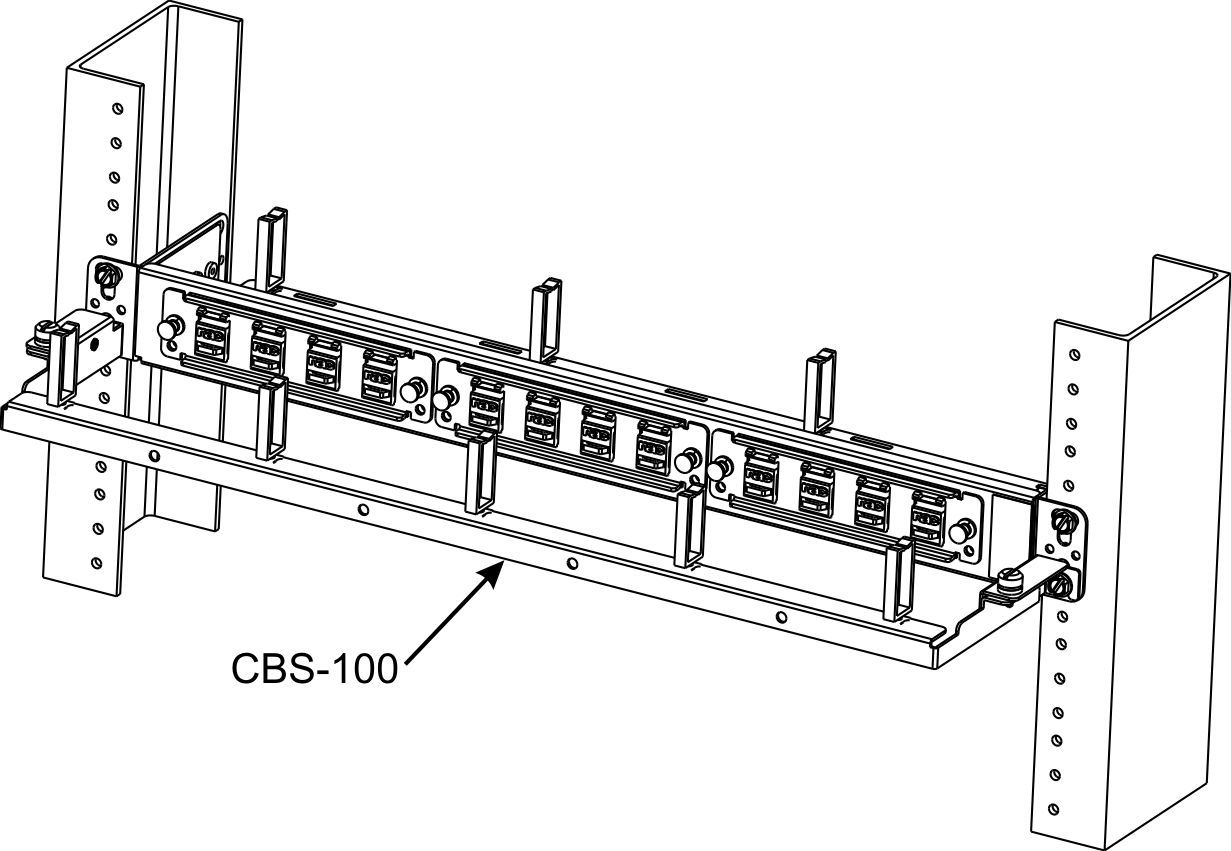

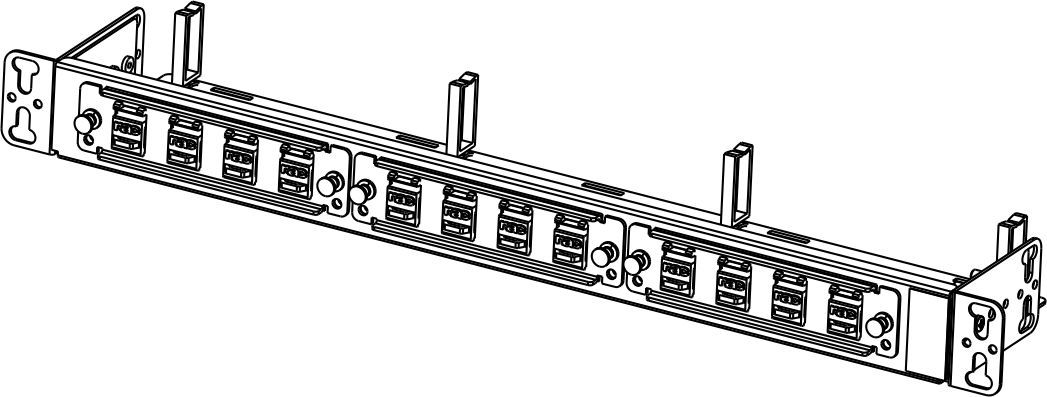

RM03-000/010/020
3-POSITION VLX/LGX PANEL, 19”/23”, 1RU TALL
• 3-position LGX™ or VLX panel, 1RU tall, rack assembly.
• 3-position LGX™ or VLX panel, 1RU tall, rack assembly.
• Made of sturdy zinc plated steel.

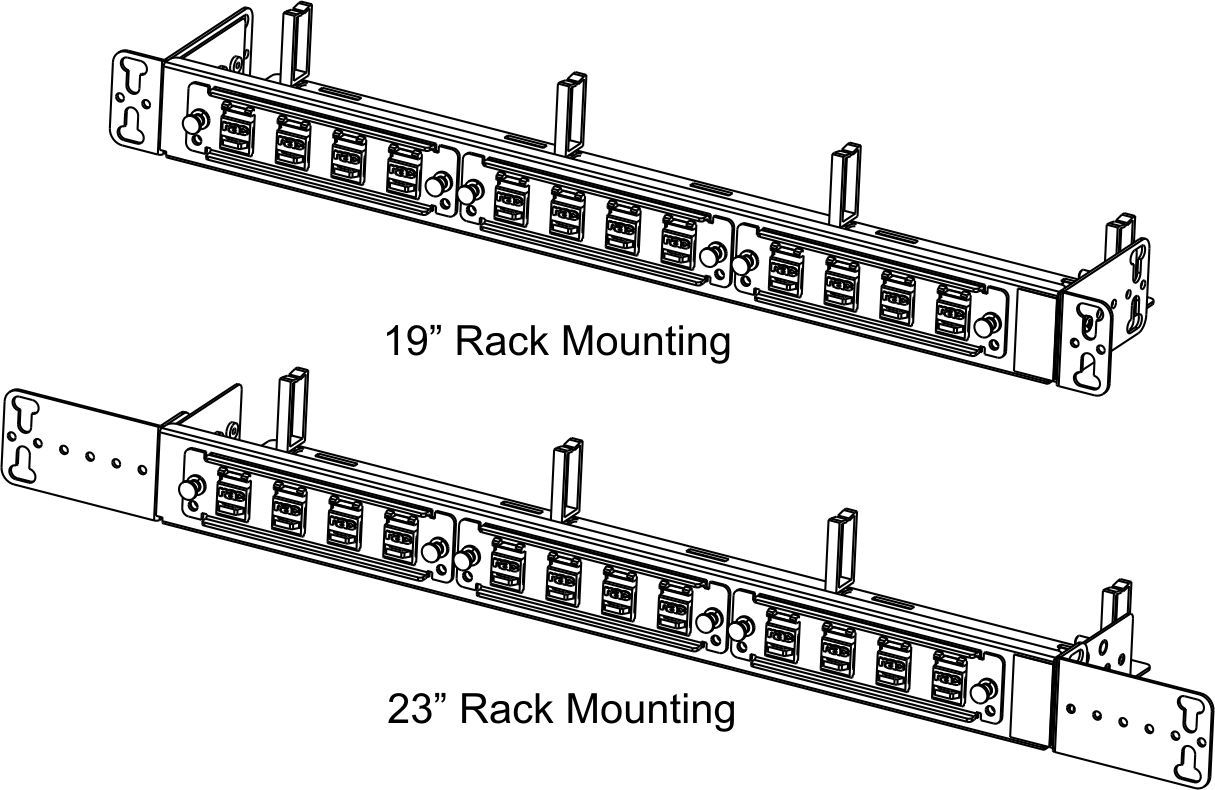

• 19”and 23”compatible.
• Supports 3 LGX™ or VLX adaptor panels or cassettes.

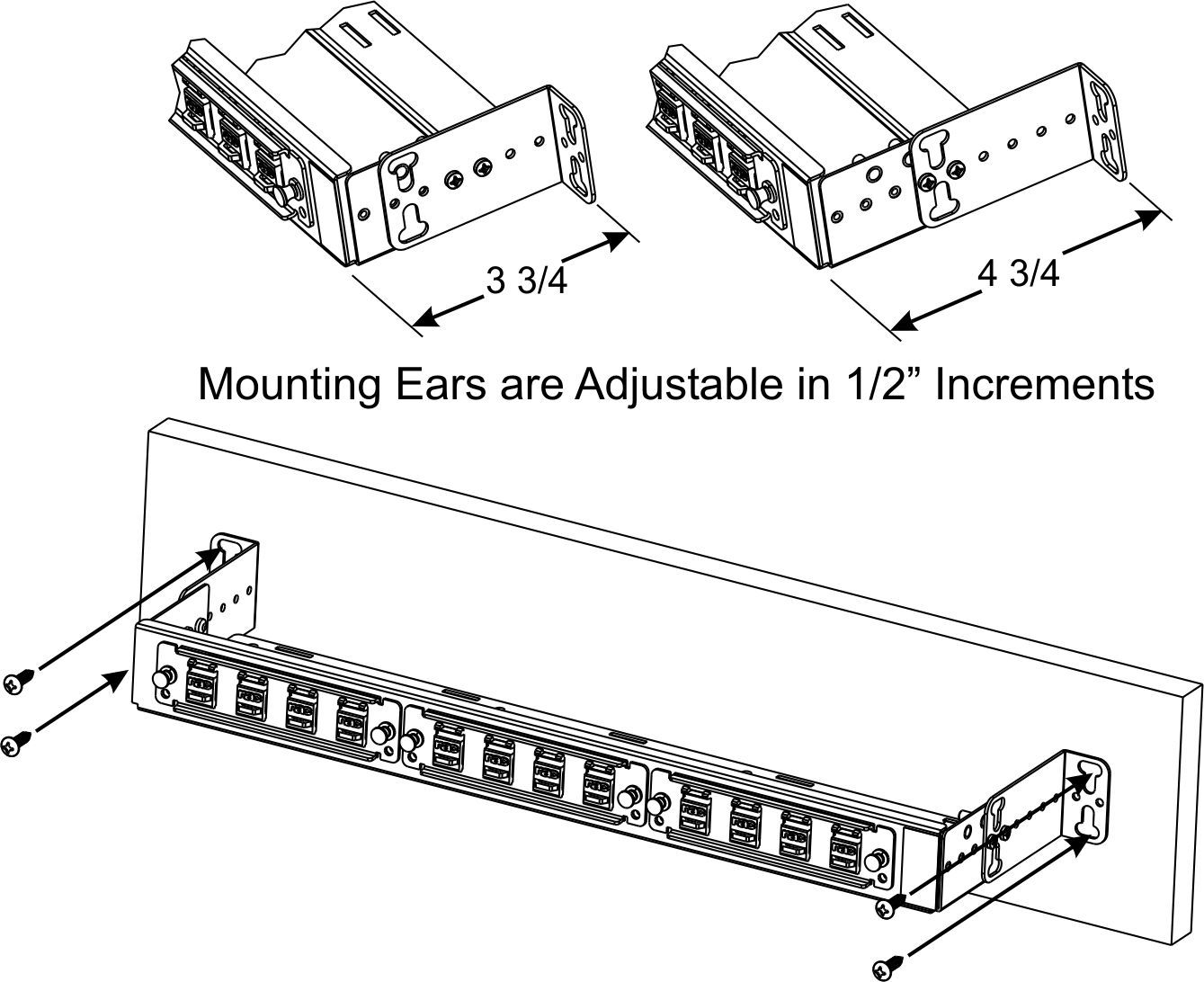

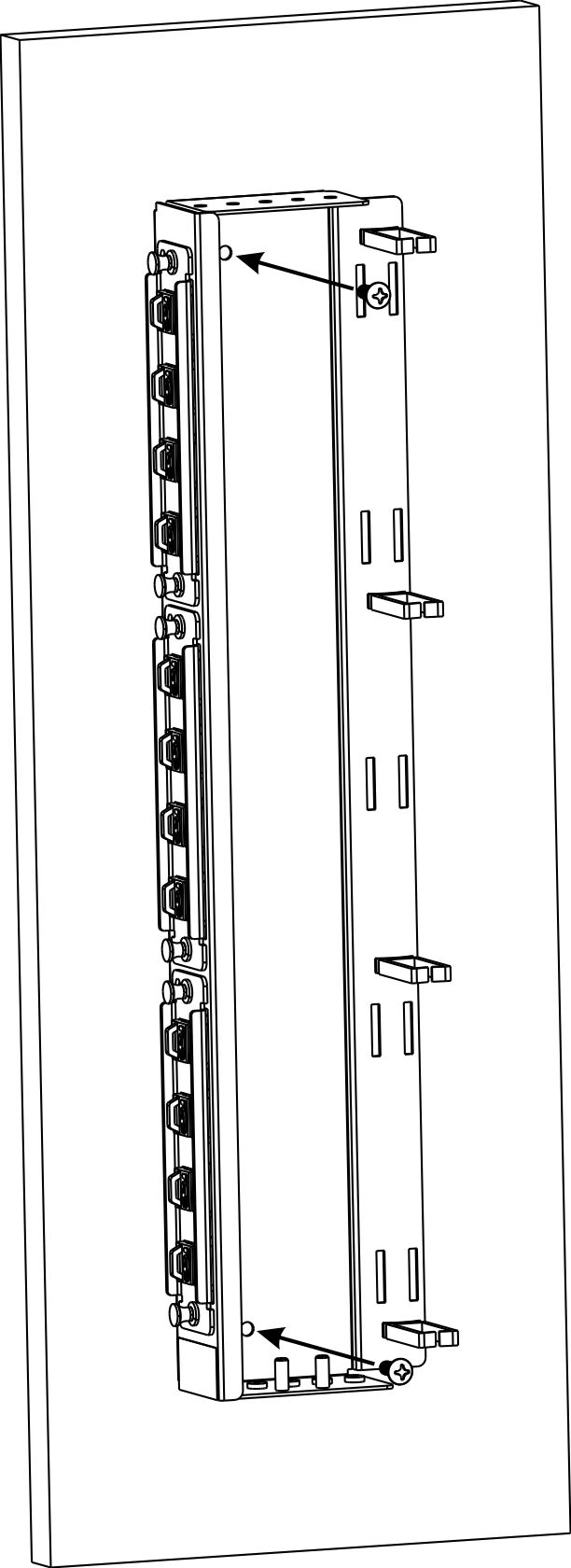

• Can be wall mounted flat or perpendicular.
• Model RM03-000 comes with no panels. RM03-010 and RM03-020 come with pre-installed panels.
• Custom assembled product can be defined.
LGX® is a registered trademark OFS FITEL, LLC

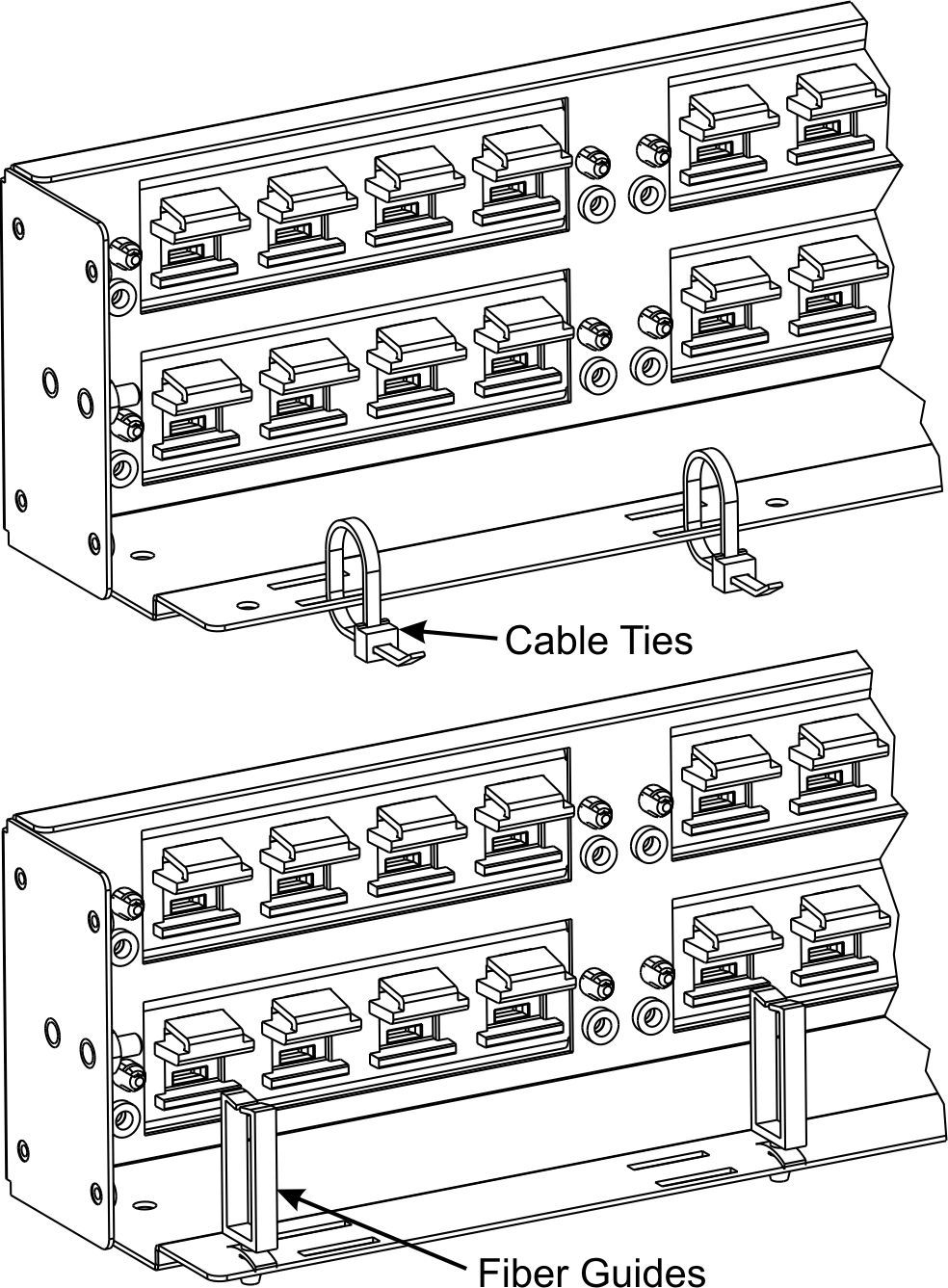

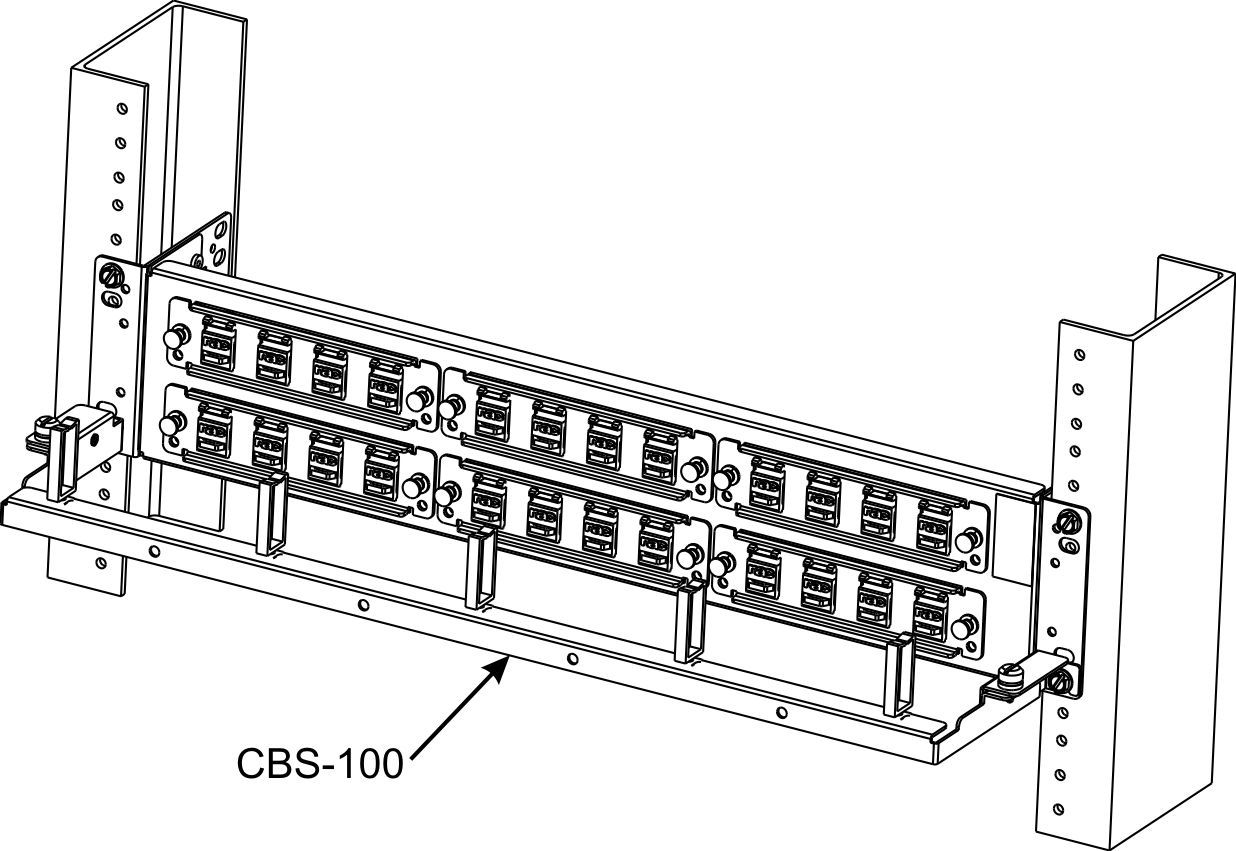

RM06-000/010/020

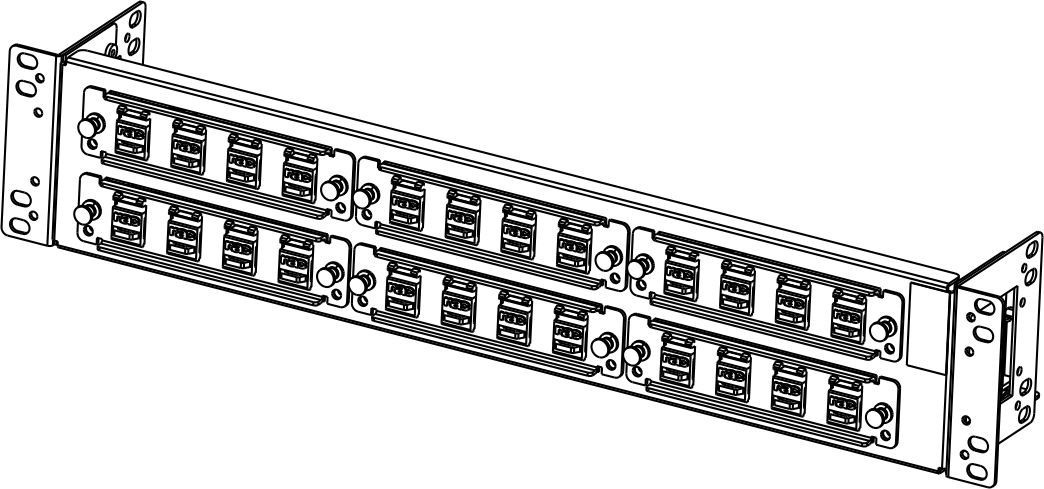

6-POSITION VLX/LGX PANEL, 19’/23”, 2RU TALL
• 6-position LGX™ or VLX panel, 2U tall, rack assembly.
• 6-position LGX™ or VLX panel, 2U tall, rack assembly.
• Made of sturdy zinc plated steel.

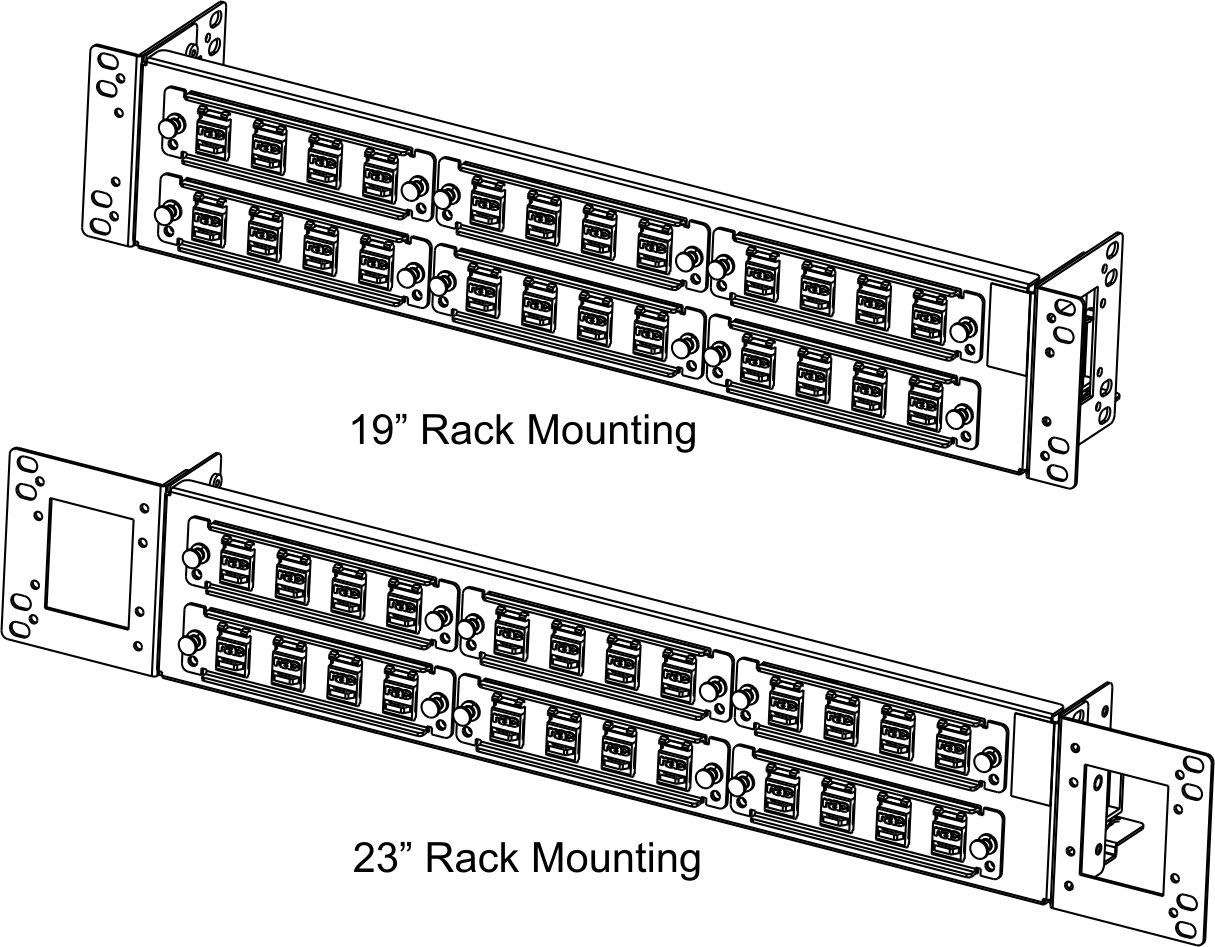

• 19”and 23”compatible.
• Supports 6 LGX™ or VLX adaptor panels or cassettes.

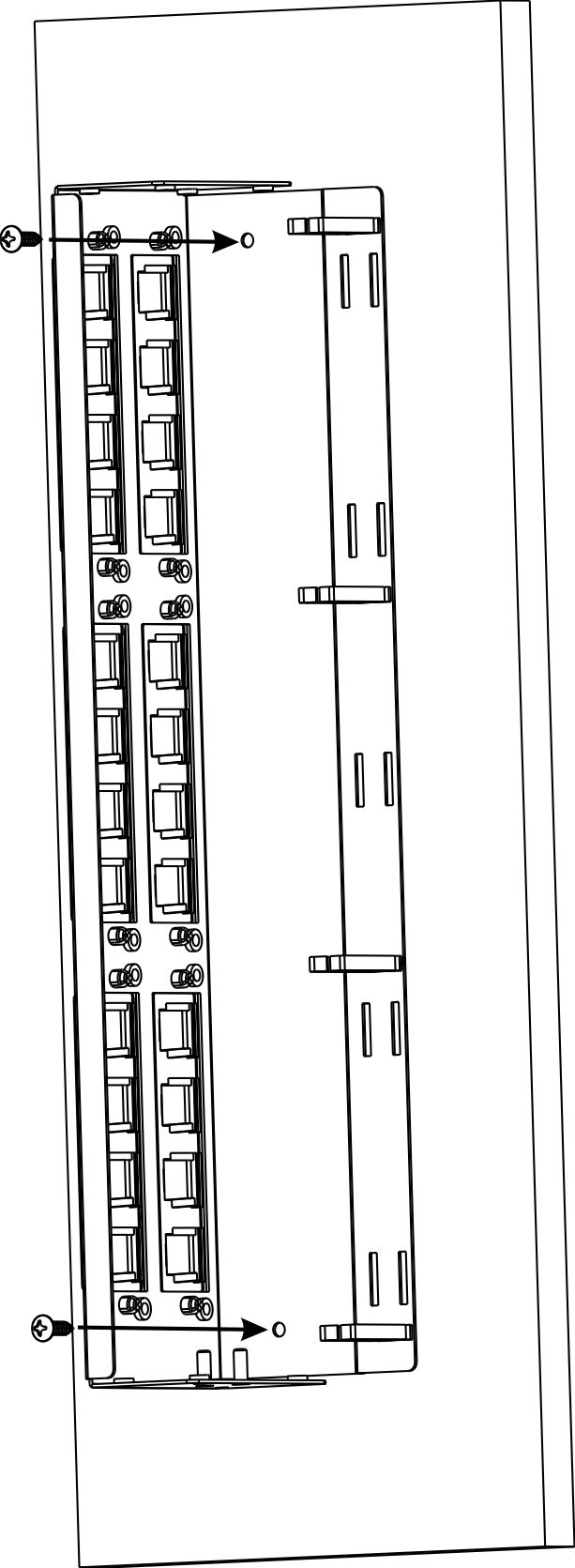

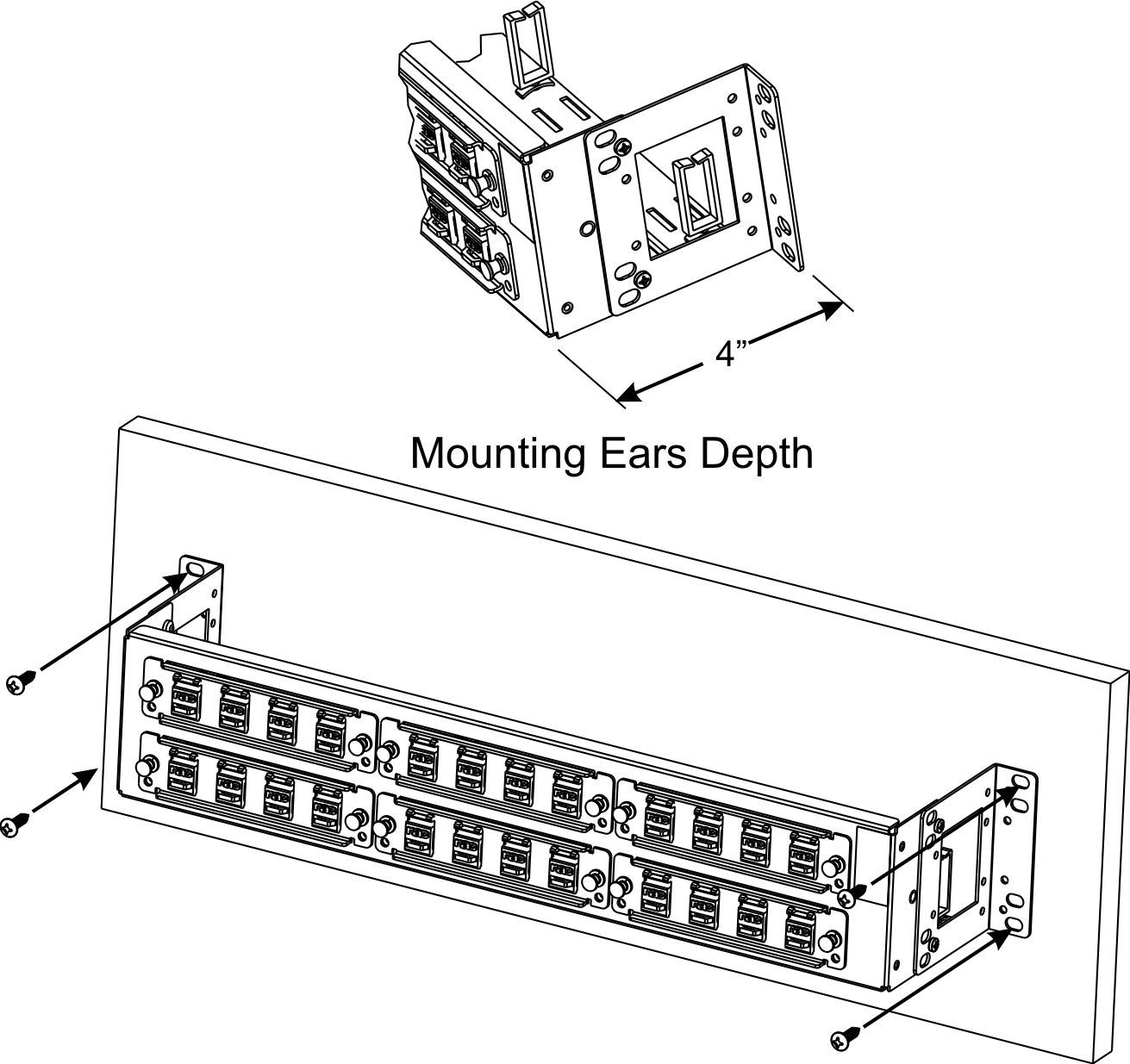

• Can be wall mounted flat or perpendicular.
• Model RM06-000 comes with no panels. RM06-010 and RM06-020 come with pre-installed panels.
• Custom assembled product can be defined.
LGX® is a registered trademark OFS FITEL, LLC

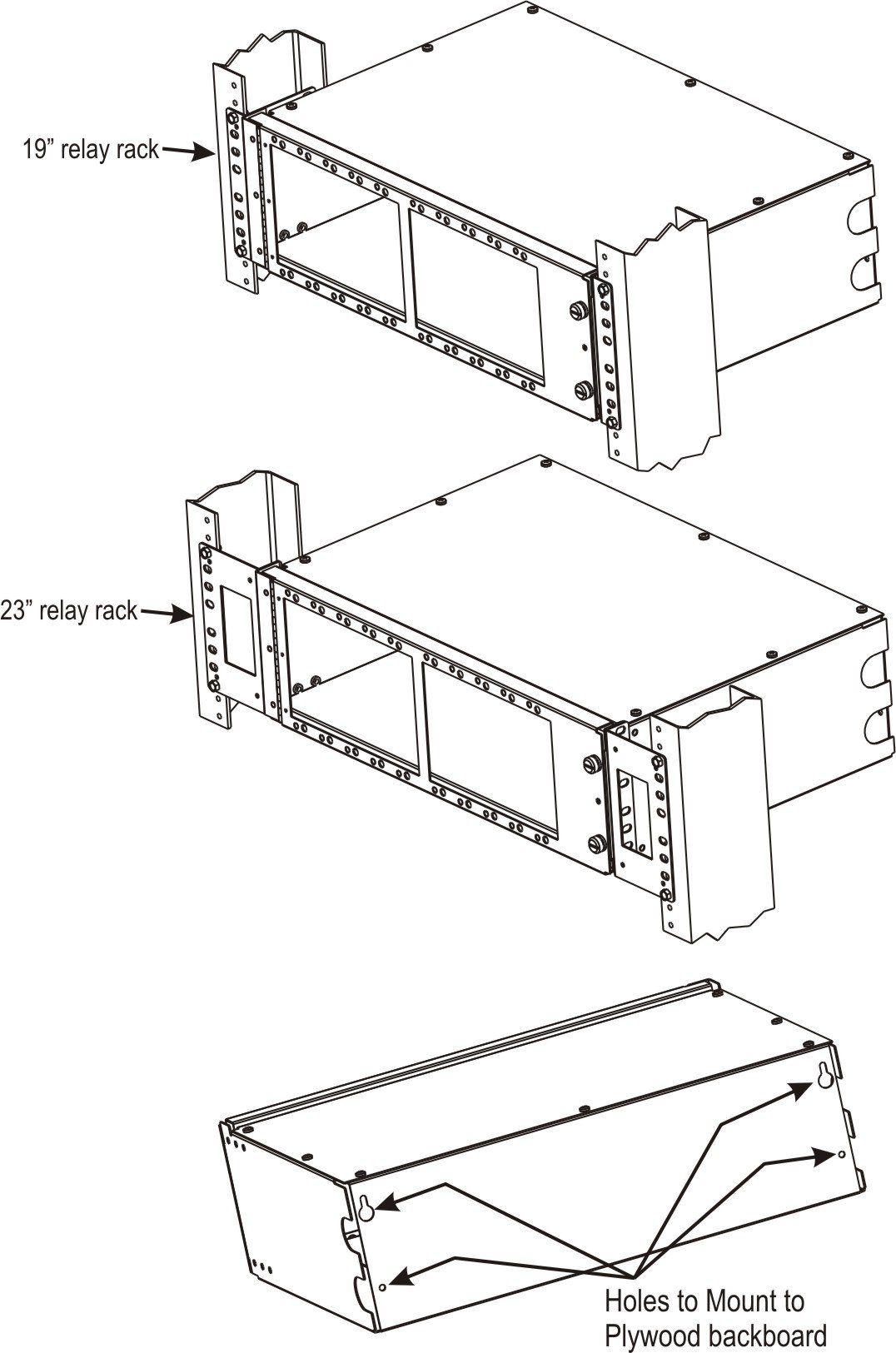

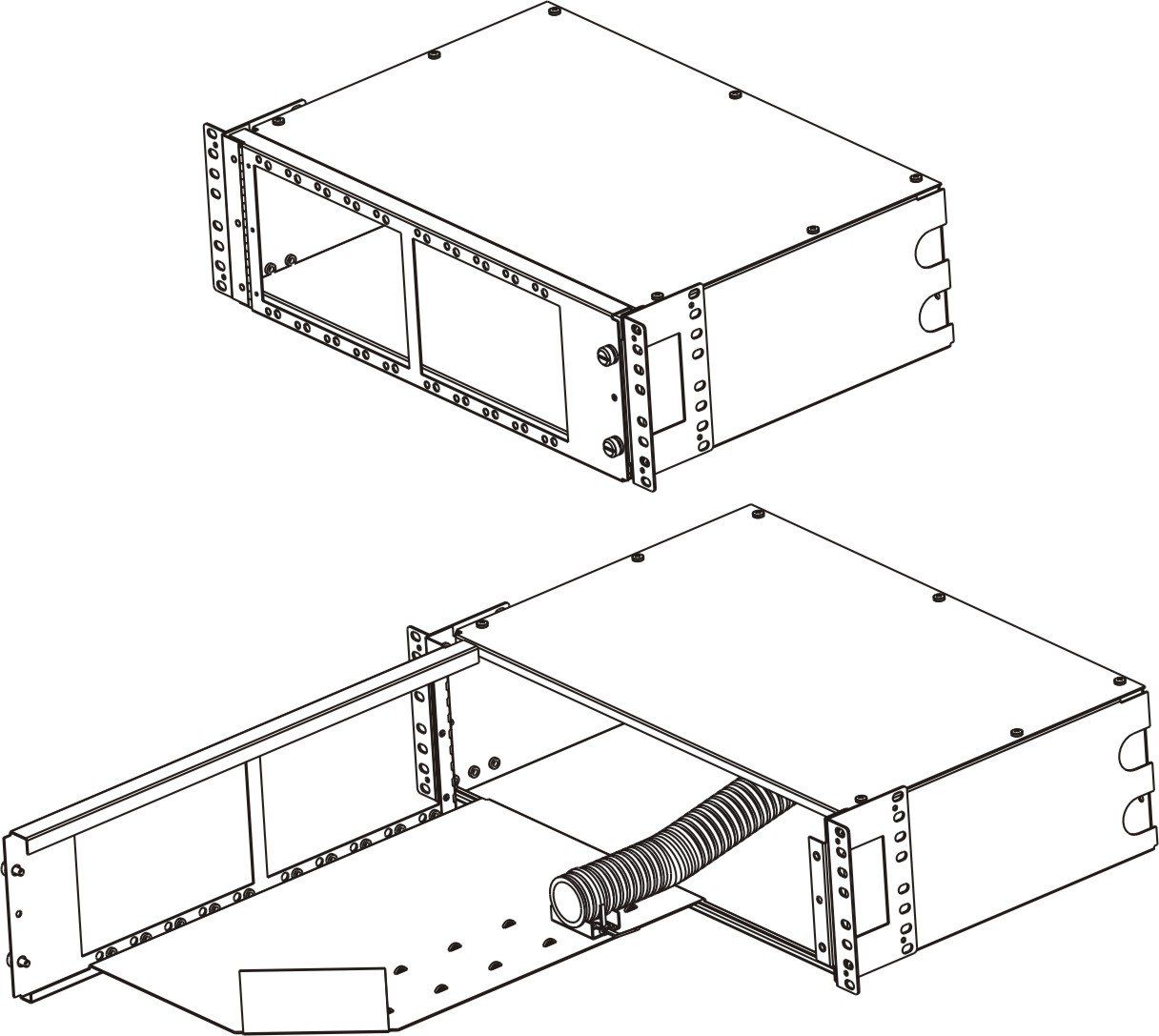

RM10-000
10-POSITION VLX/LGX PANEL, 19”/23”, 3RU TALL, SWING-OUT
• 10-position LGX™ or VLX panel, 3U tall, rack assembly.
• 10-position LGX™ or VLX panel, 3U tall, rack assembly.

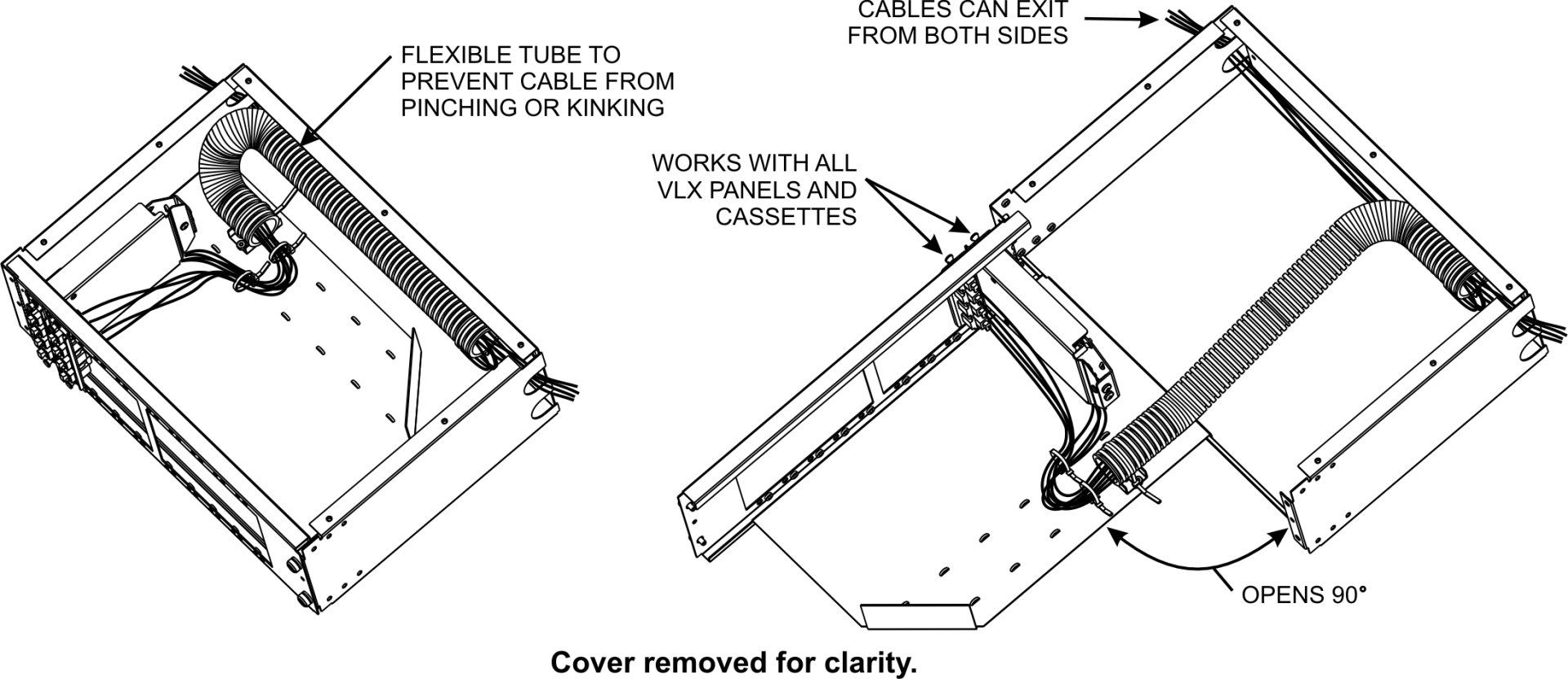

• Front swings open for installations with no rear access.
• Made of sturdy zinc plated steel.
• 19”and 23”compatible.
• Supports 10 LGX™ or VLX adaptor panels or cassettes.
• Can be wall mounted perpendicular.
• Model RM10-000 comes with no panels.
• Custom assembled product can be defined.
LGX® is a registered trademark OFS FITEL, LLC

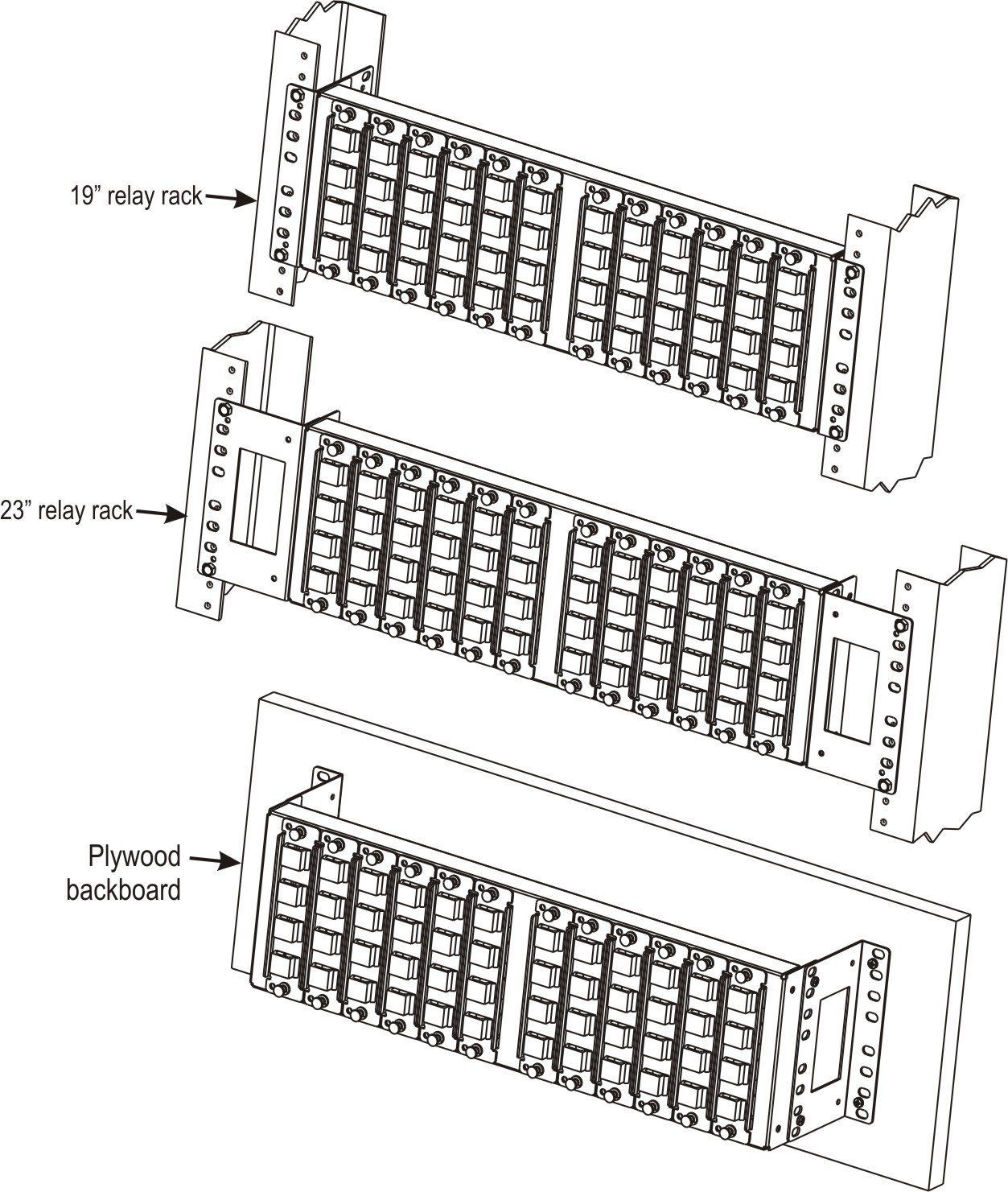

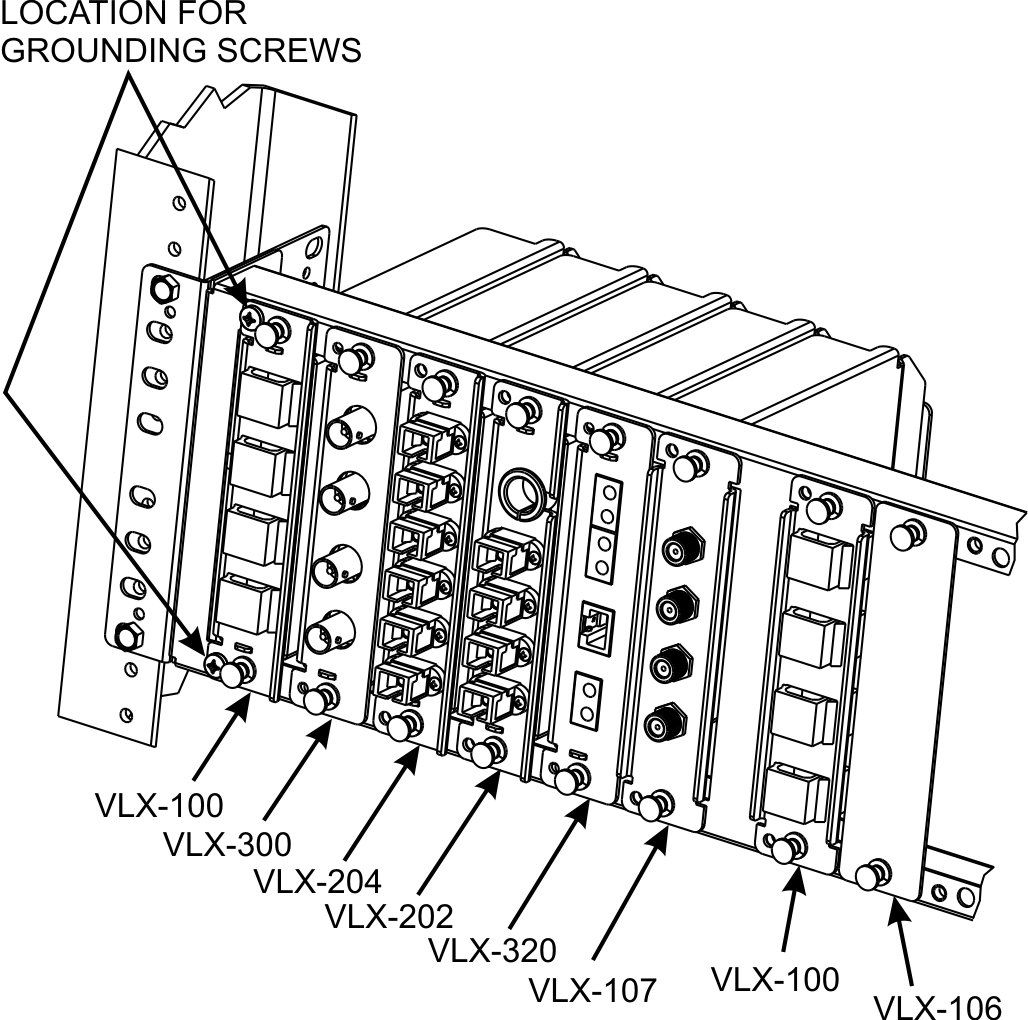

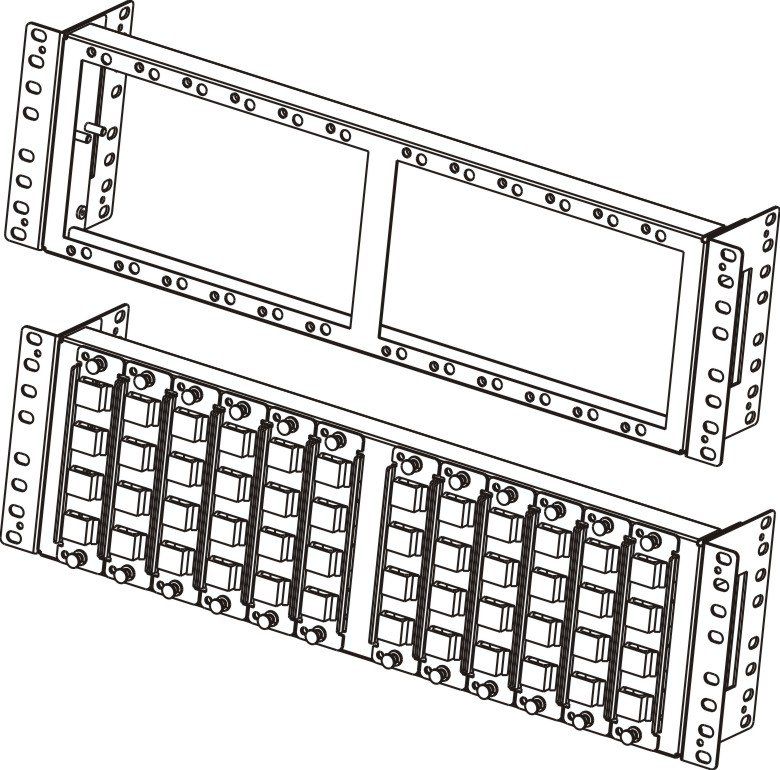

RM12-000/010/020
12-POSITION VLX/LGX PANEL, 19”/23”, 3RU TALL
• 6-position LGX™ or VLX panel, 3U tall, rack assembly.
• 6-position LGX™ or VLX panel, 3U tall, rack assembly.
• Made of sturdy zinc plated steel.
• 19”and 23”compatible.
• Supports 12 LGX™ or VLX adaptor panels or cassettes.
• Can be wall mounted perpendicular.
• Model RM12-000 comes with no panels. RM12-010 and RM12-020 come with pre-installed panels.
• Custom assembled product can be defined.
LGX® is a registered trademark OFS FITEL, LLC

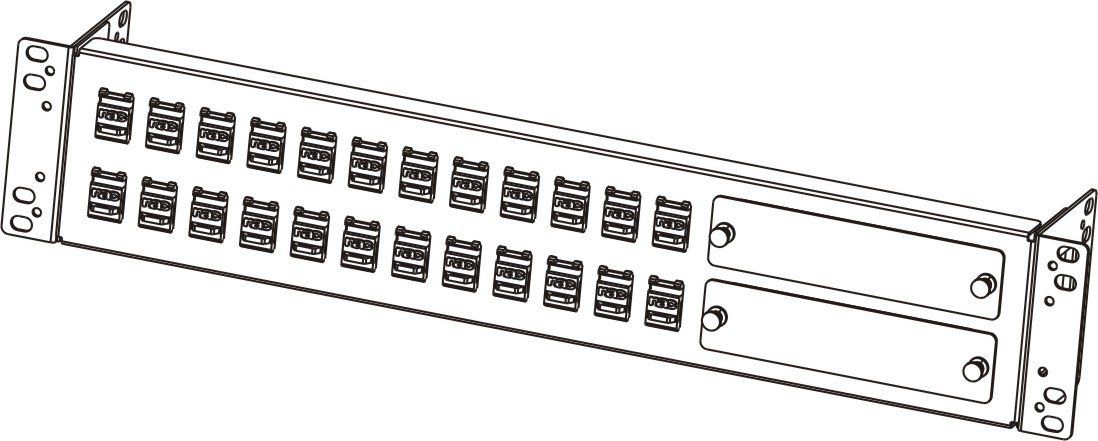

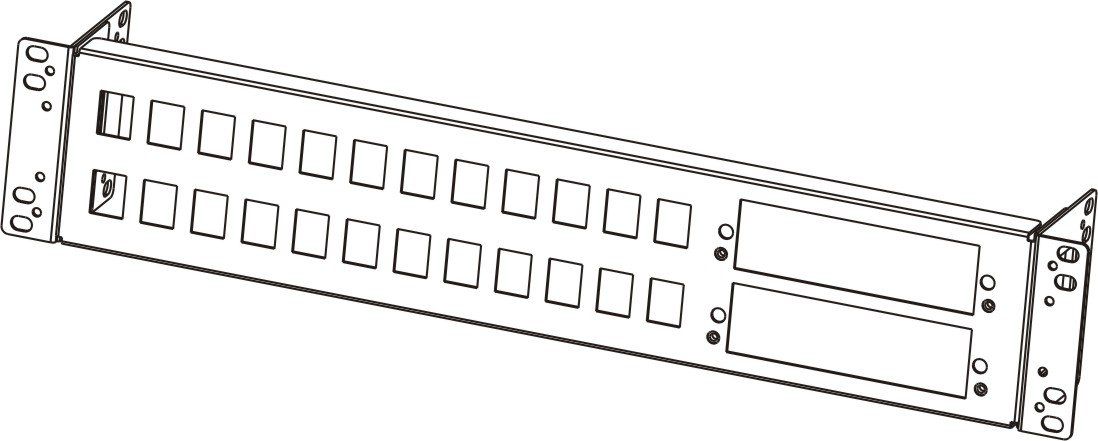

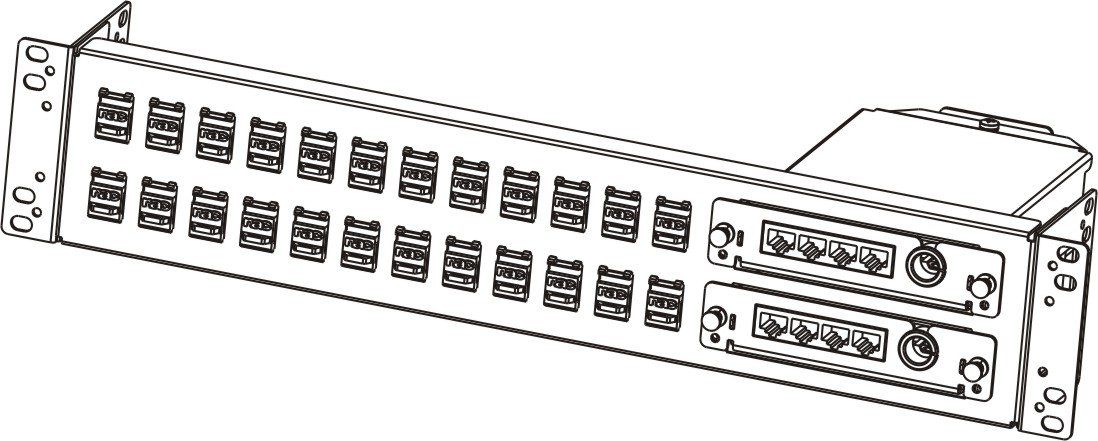

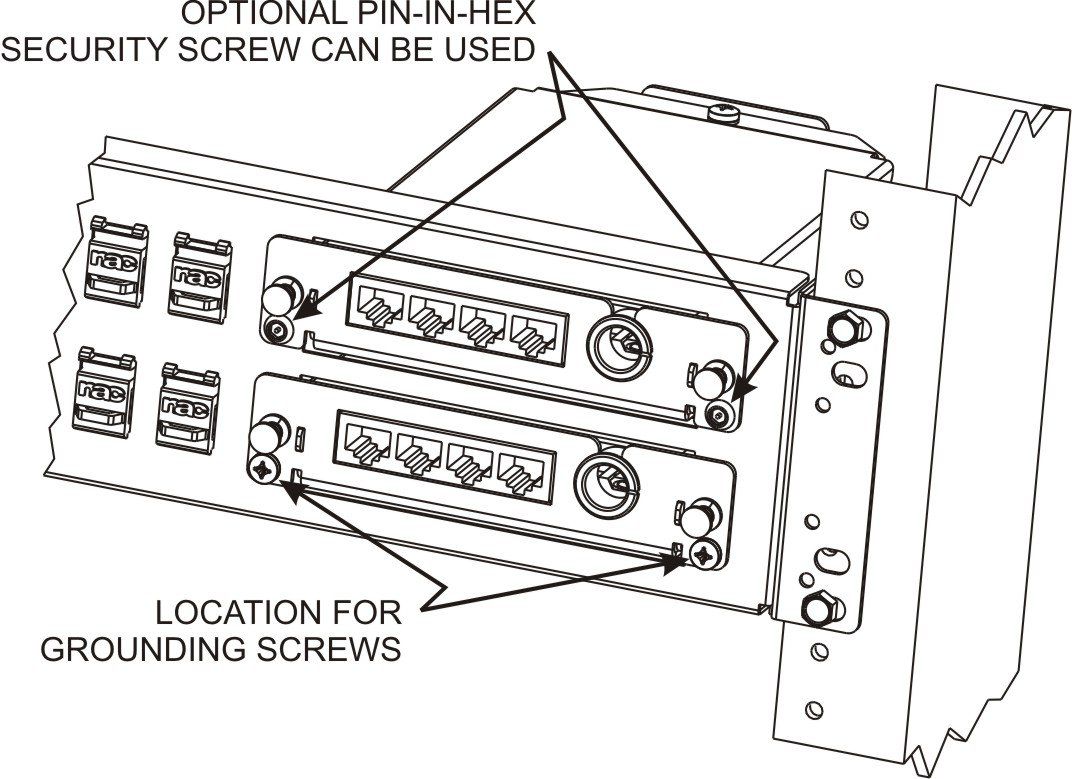

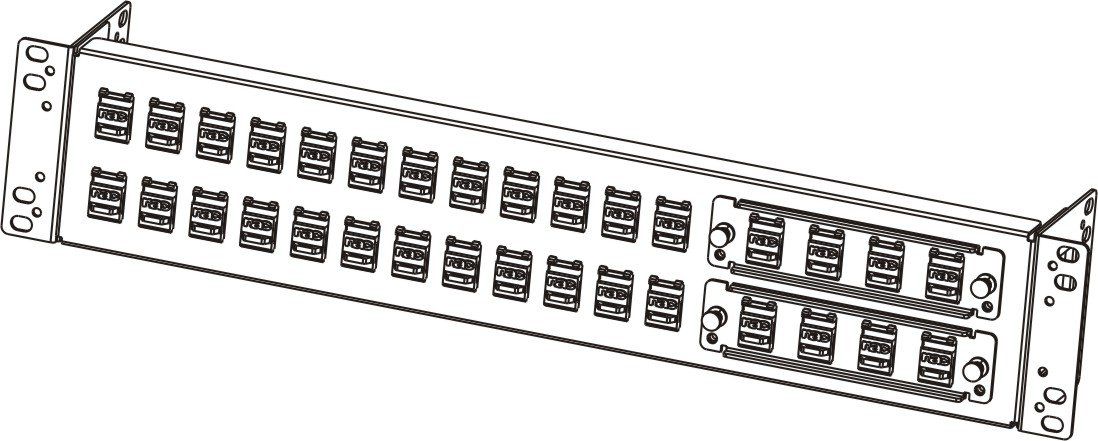

RM242-000/010/020/030
2-POSITION VLX/LGX PANEL WITH 24 KEYSTONE POSITIONS, 19”/23”, 2RU TALL
• 24-position Keystone and 2-position LGX™ or VLX panel, 2U tall, rack assembly.
• Made of sturdy zinc plated steel.

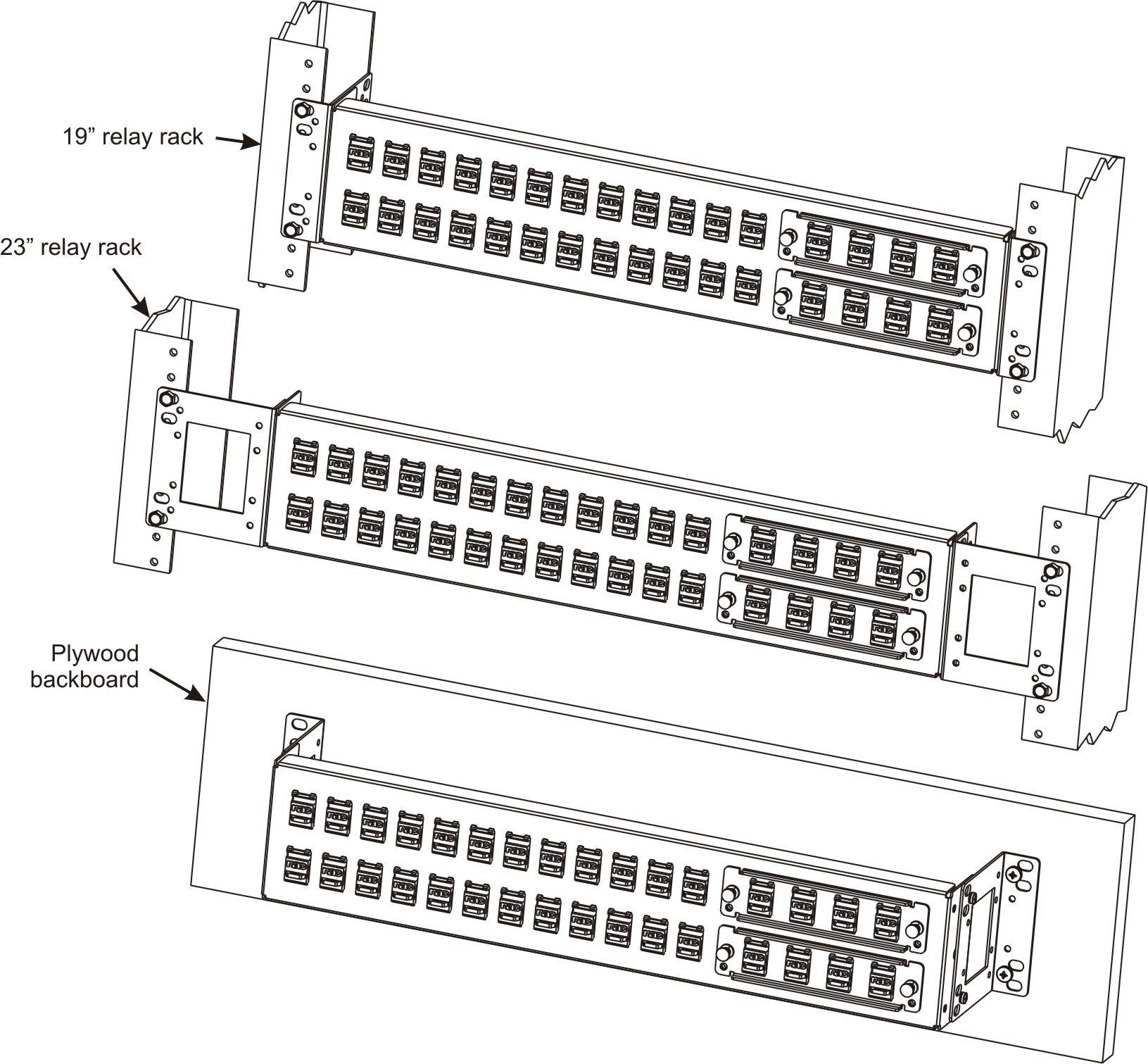

• 19”and 23”compatible.
• Supports 24 Keystone type couplers
• Supports 2 LGX™ or VLX adaptor panels or cassettes.
• Can be wall mounted perpendicular.
• Model RM242-000 comes with no panels or keystone inserts. RM242-010 comes with Keystone blanks and 2 LGX™ blanks (VLX-106). RM242-020 comes with Keystone blanks and 2 LGX™ panels filled with Keystone blanks (VLX-100). RM242 comes with Keystone blanks and 2 4-position DS1 hand-off cassettes (VLX-330).
• Custom assembled product can be defined.
LGX® is a registered trademark OFS FITEL, LLC

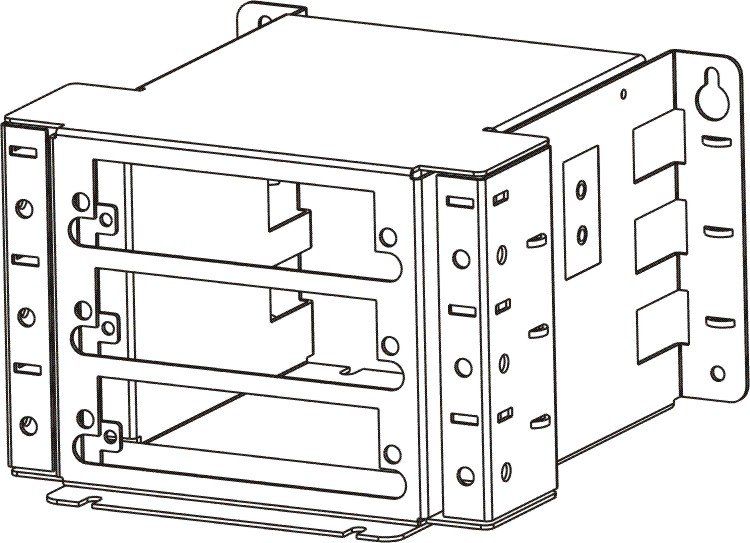

VM03-000
VLX/LGX, 3-POSITION, WALL MOUNTING

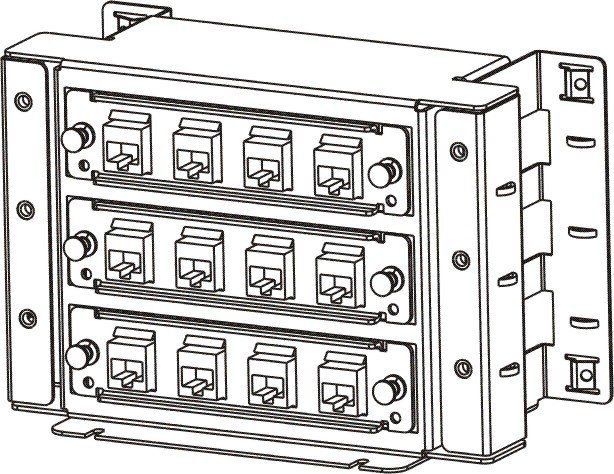

• 3-position LGX™ or VLX panel wall mount assembly.
• 3-position LGX™ or VLX panel wall mount assembly.
• Made of sturdy zinc plated steel and powder coated.
• Designed to use minimal wall space.
• Supports 3 LGX™ or VLX adaptor panels and most cassettes.

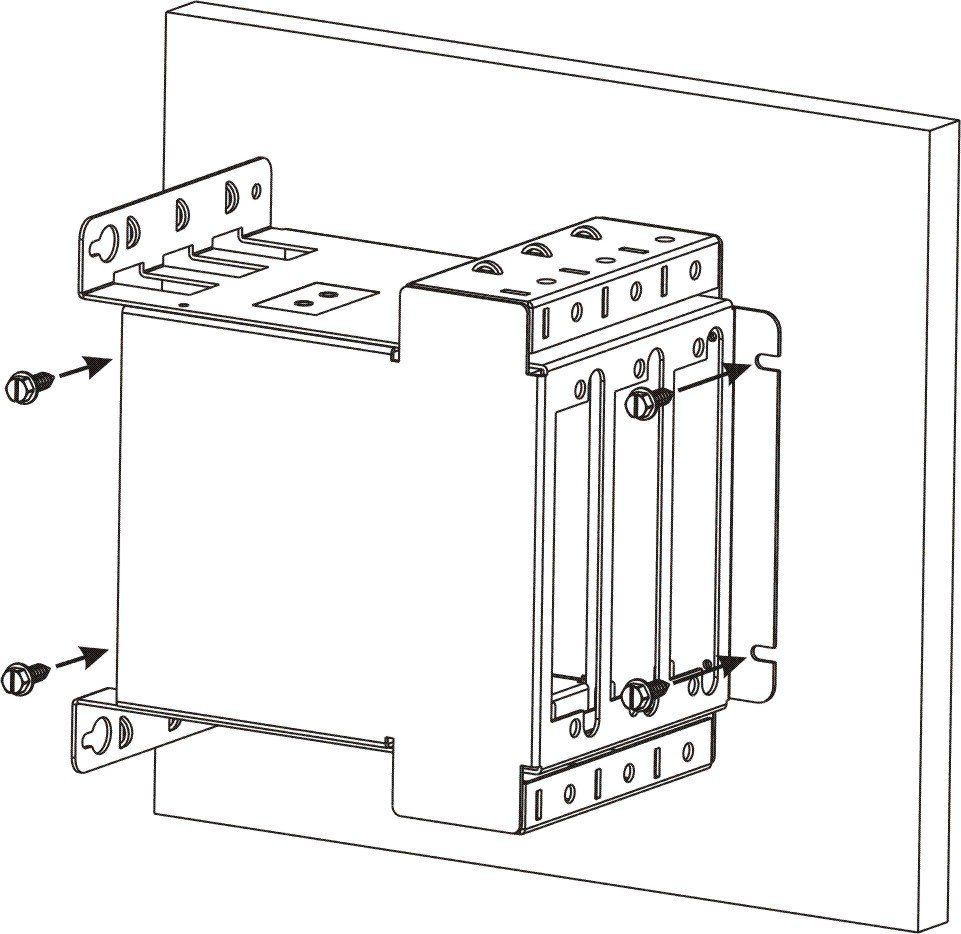

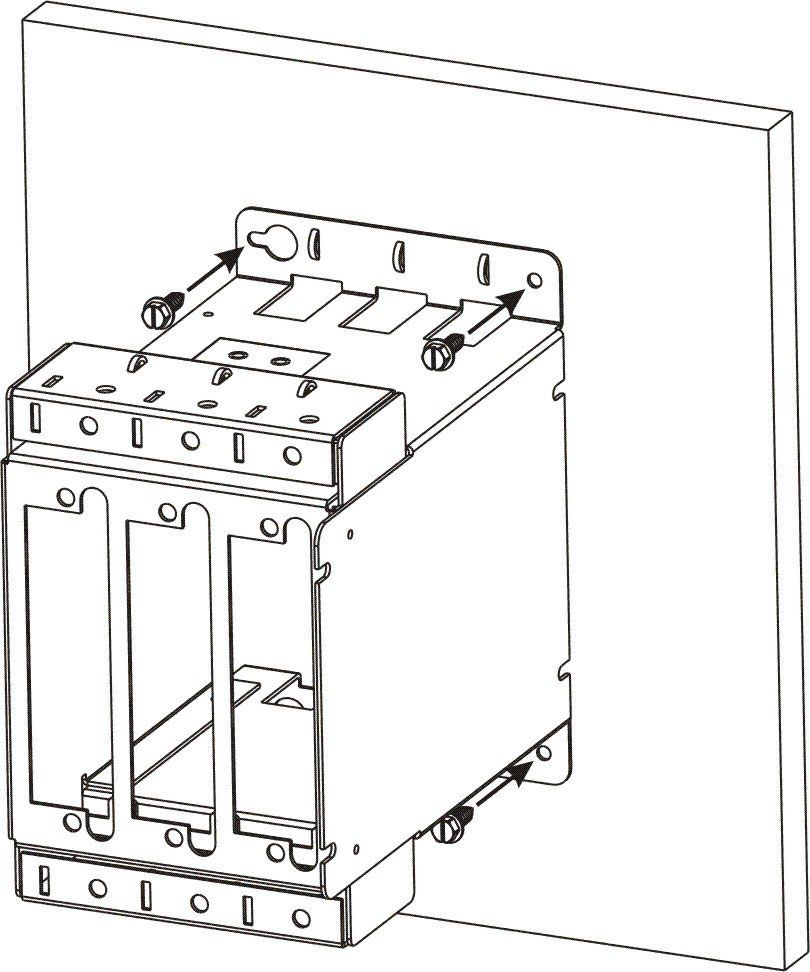

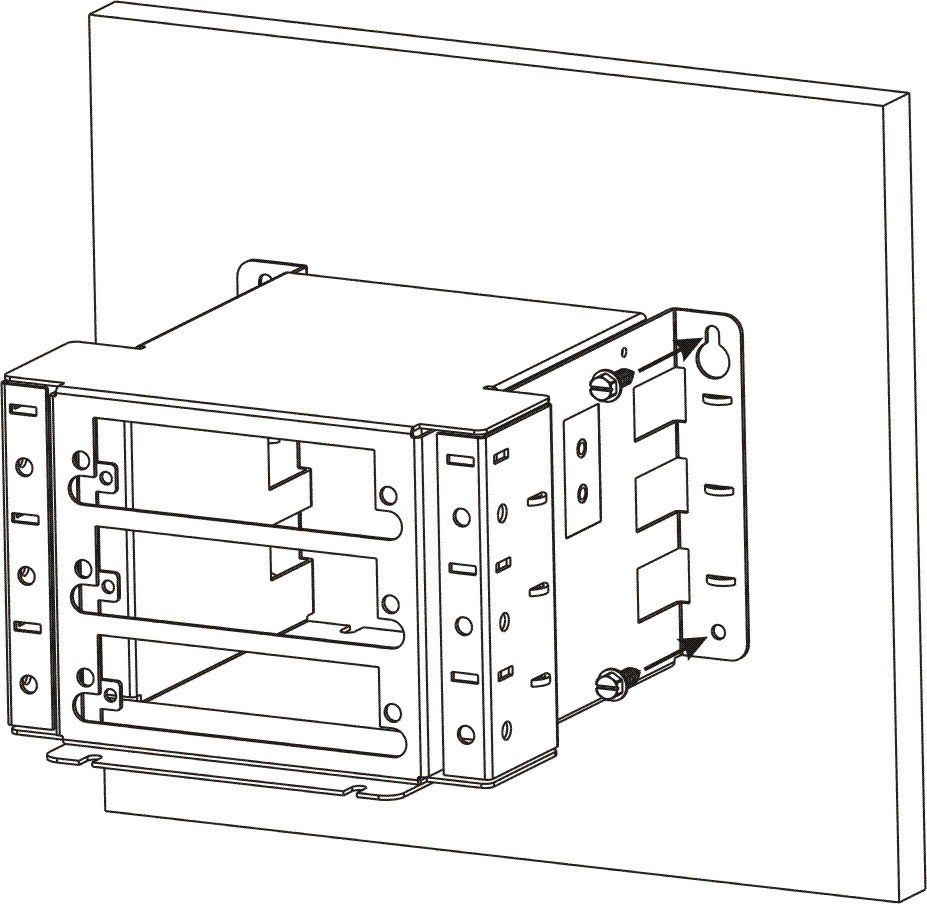

• Can be wall mounted in various ways.
• Refer to Technical Pub for additional ordering options.
• Custom assembled product can be defined
LGX® is a registered trademark OFS FITEL, LLC

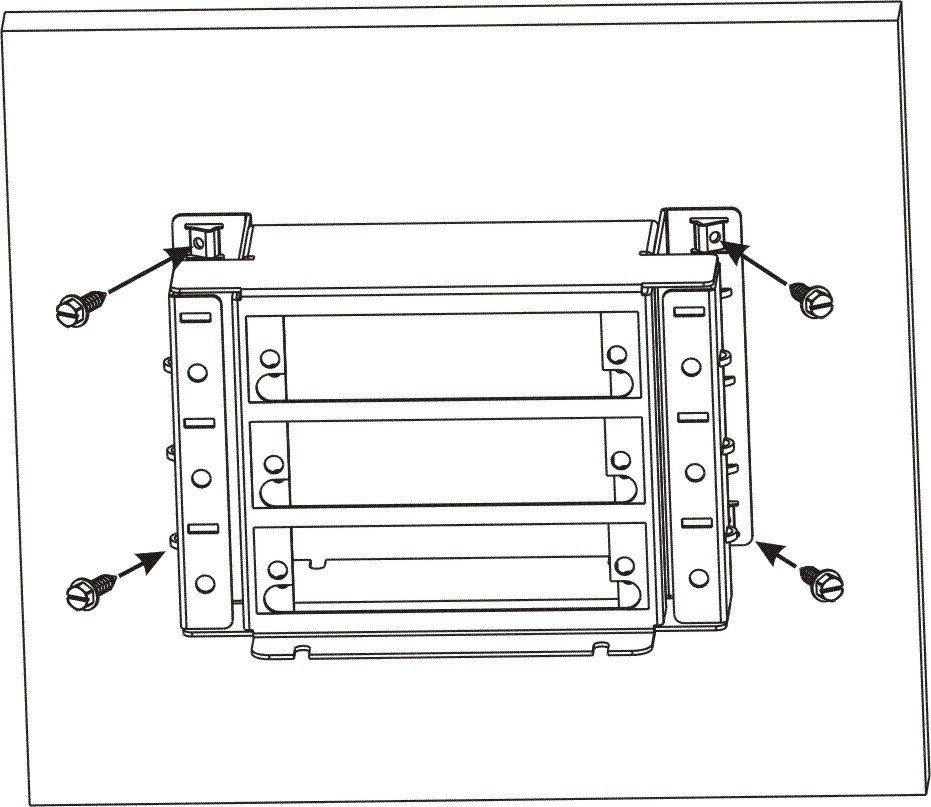

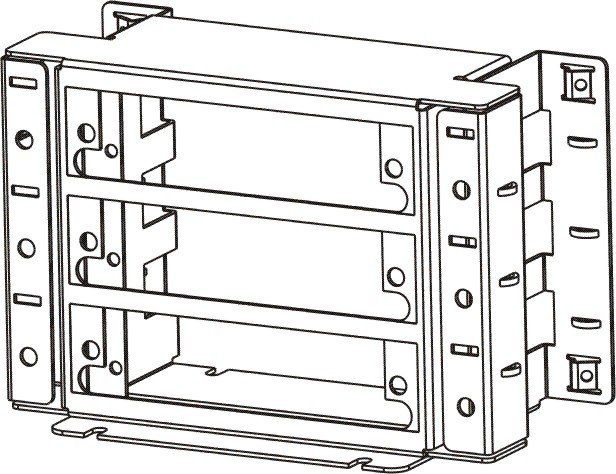

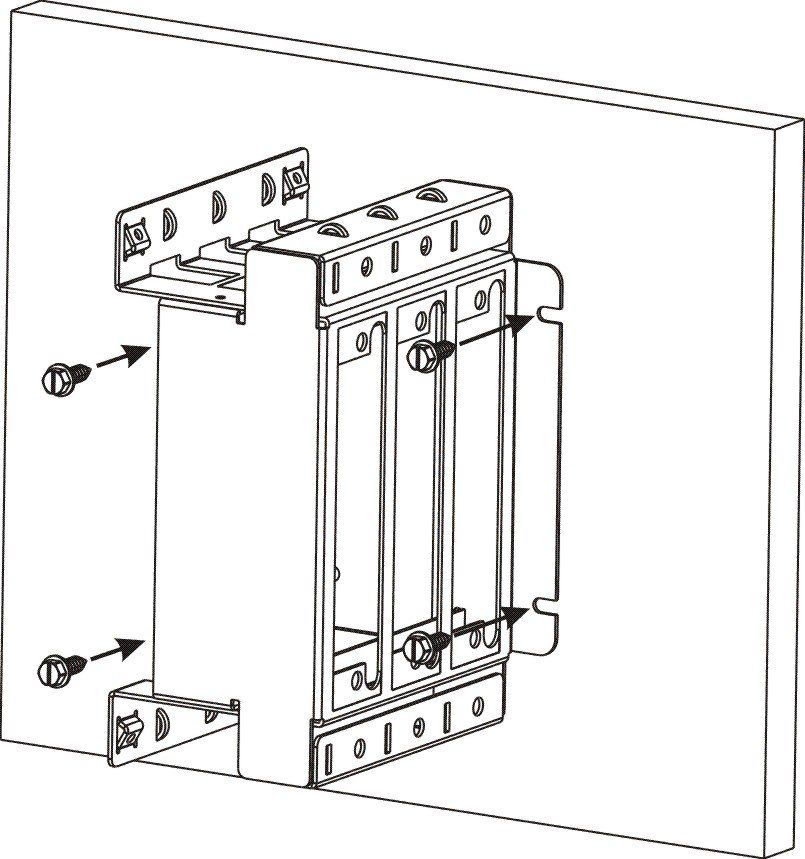

VMS03-000

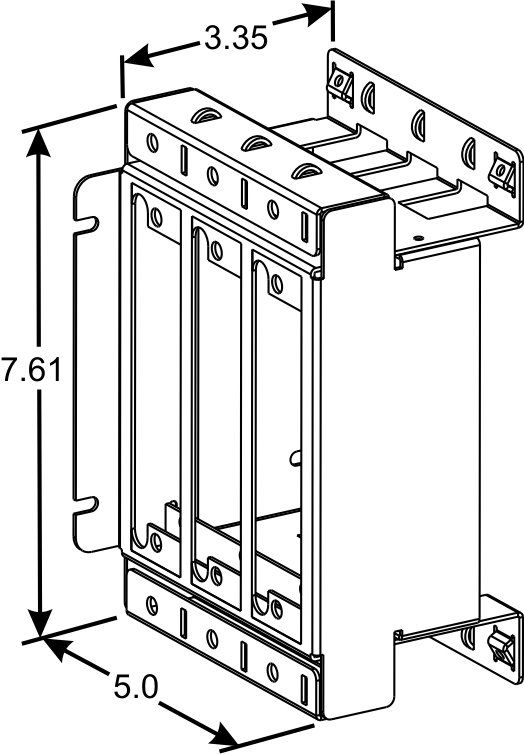

VLX/LGX, 3-POSITION SHORT, WALL MOUNTING
• 3-position LGX™ or VLX short panel wall mount assembly.
• 3-position LGX™ or VLX short panel wall mount assembly.
• Made of sturdy zinc plated steel and powder coated.
• Designed to use minimal wall space.
• Supports 3 LGX™ or VLX adaptor panels only.

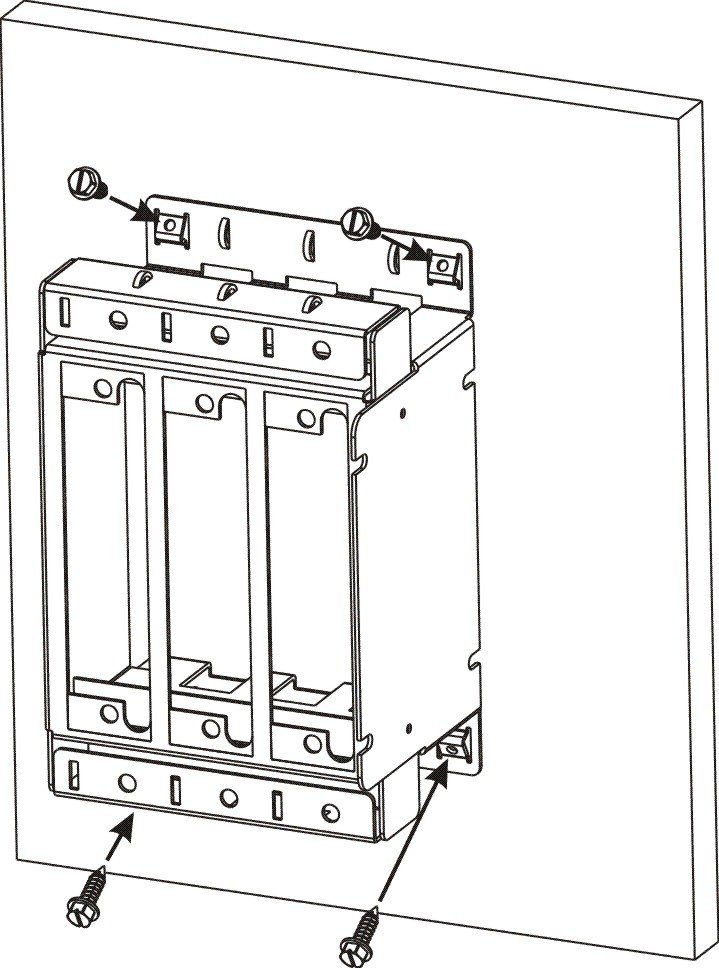

• Can be wall mounted in various ways.
• Refer to Technical Pub for additional ordering options.
• Custom assembled product can be defined
LGX® is a registered trademark OFS FITEL, LLC

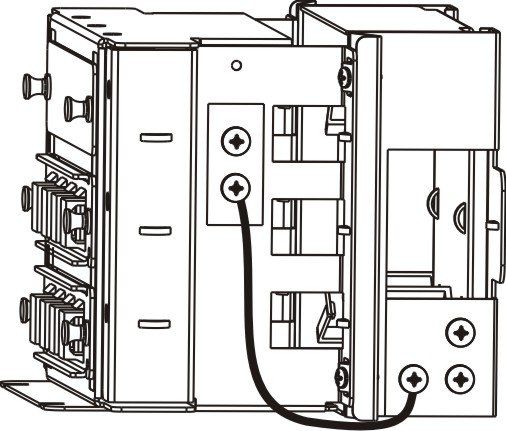

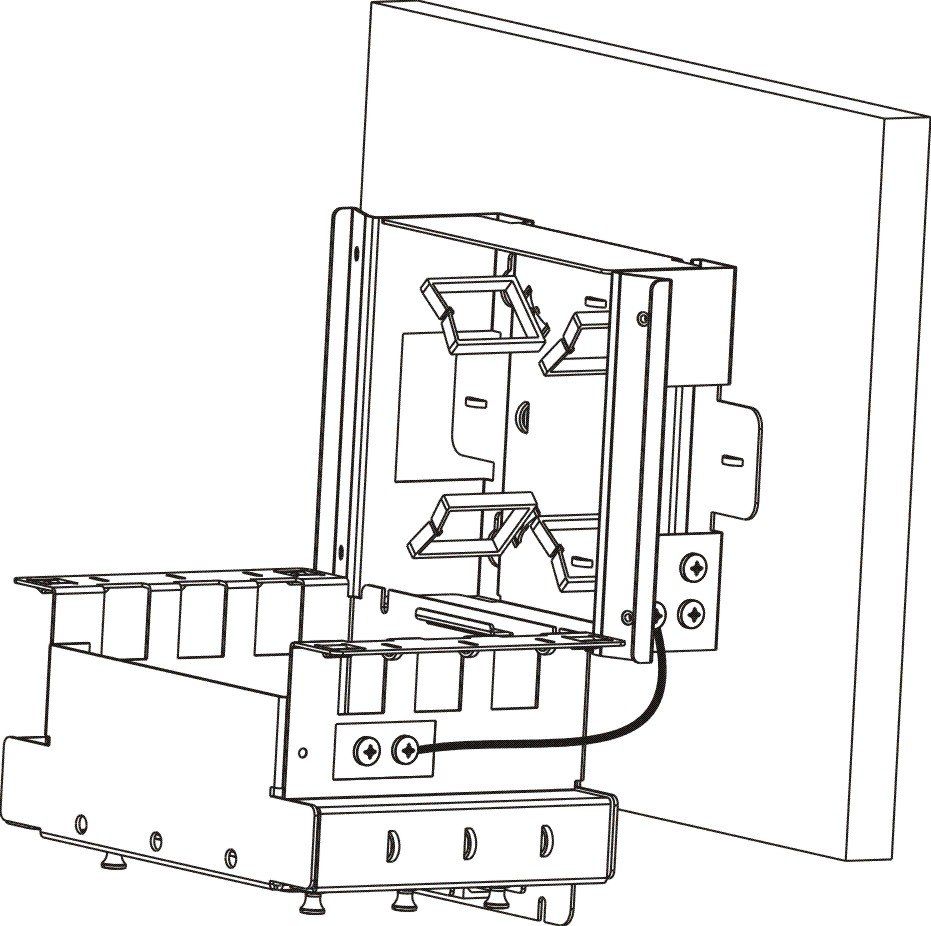

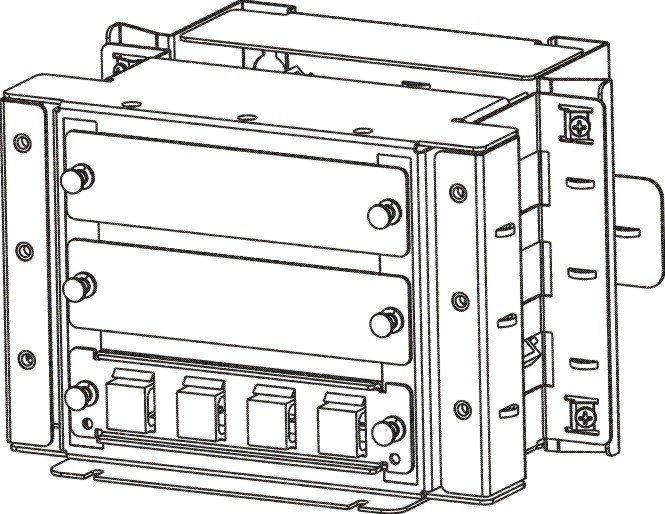

VMC03-000
VLX/LGX, 3-POSITION WITH CABLE SPOOL, WALL MOUNTING
• 3-position LGX™ or VLX short panel wall mount assembly with cable management hub.
• 3-position LGX™ or VLX short panel wall mount assembly with cable management hub.
• Made of sturdy zinc plated steel and powder coated.
• Designed to use minimal wall space.
• Supports 3 LGX™ or VLX adaptor panels only.
• Can be wall mounted in various ways.

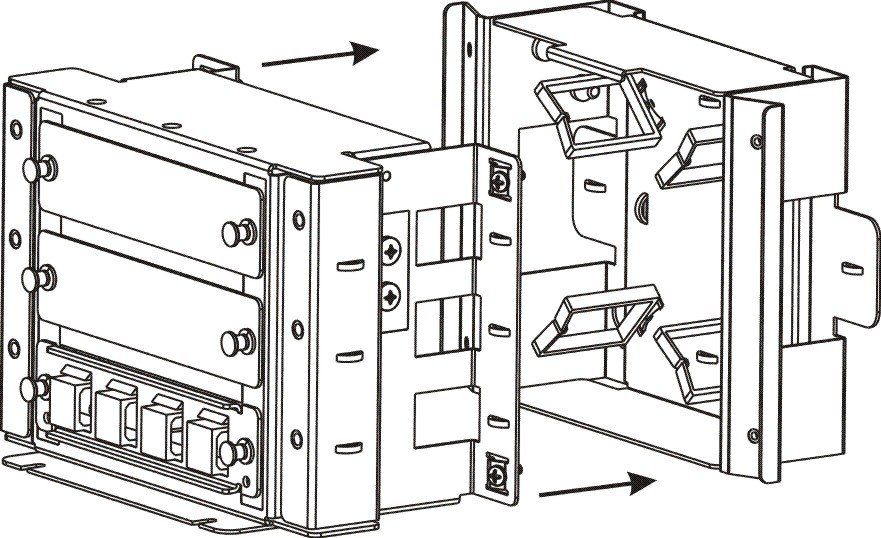

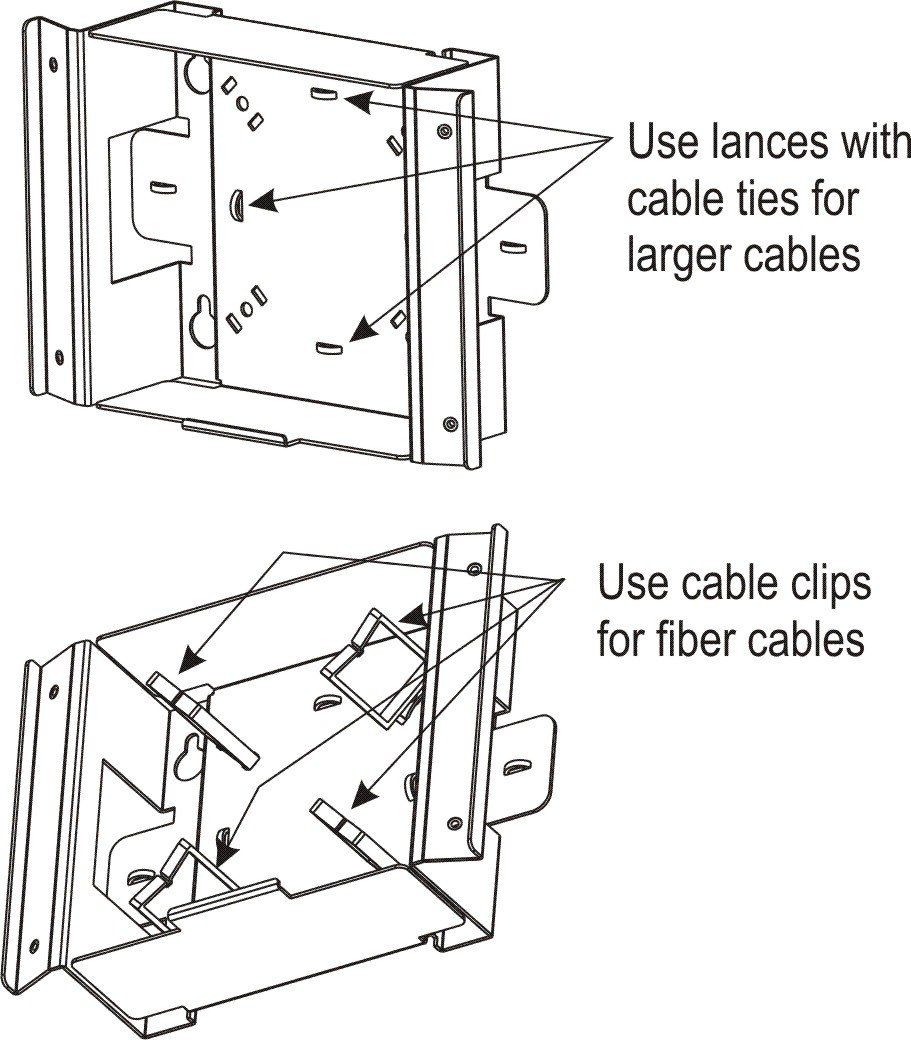

• Back half can be configured for fiber clips or with cable ties.
• Refer to Technical Pub for additional ordering options.
• Custom assembled product can be defined.
LGX® is a registered trademark OFS FITEL, LLC

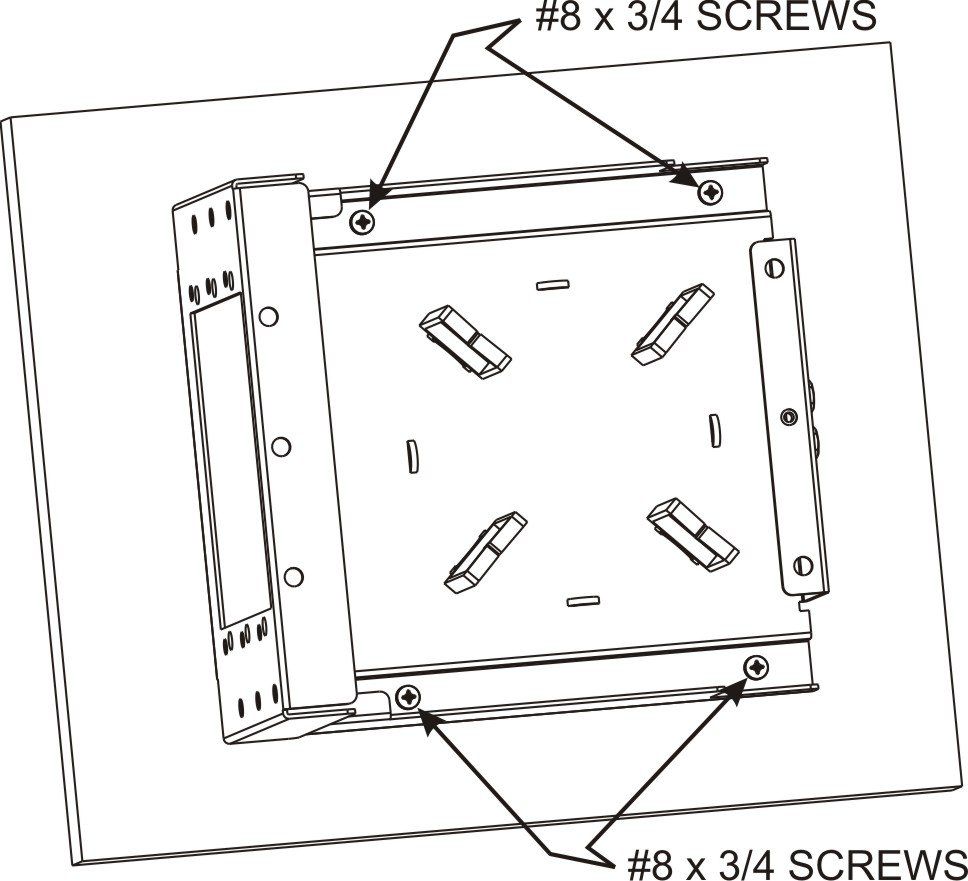

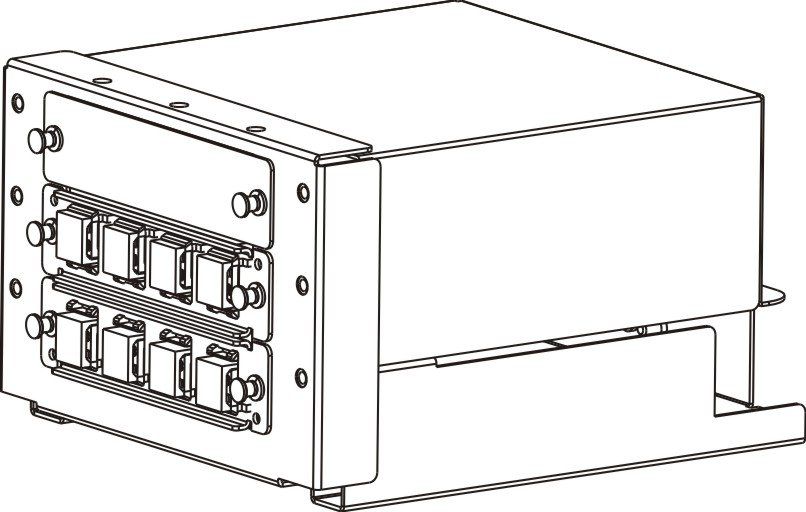

VMH03-000
VLX/LGX, 3-POSITION WITH CABLE SPOOL, HORIZONTAL WALL MOUNTING
• 3-position LGX™ or VLX panel wall mount assembly with cable management hub.
• Made of sturdy zinc plated steel and powder coated.
• Designed to use minimal wall space.

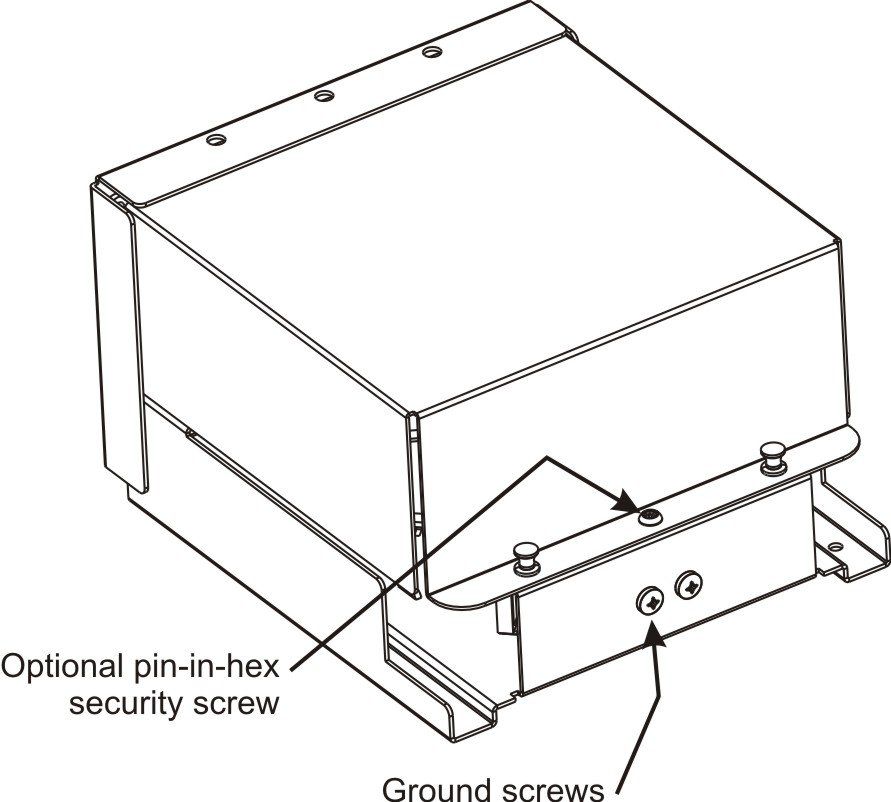

• Rear cover with tamper-resistance screw for security
• Supports 3 LGX™ or VLX adaptor panels and some cassettes.
• Can be wall mounted in various ways.

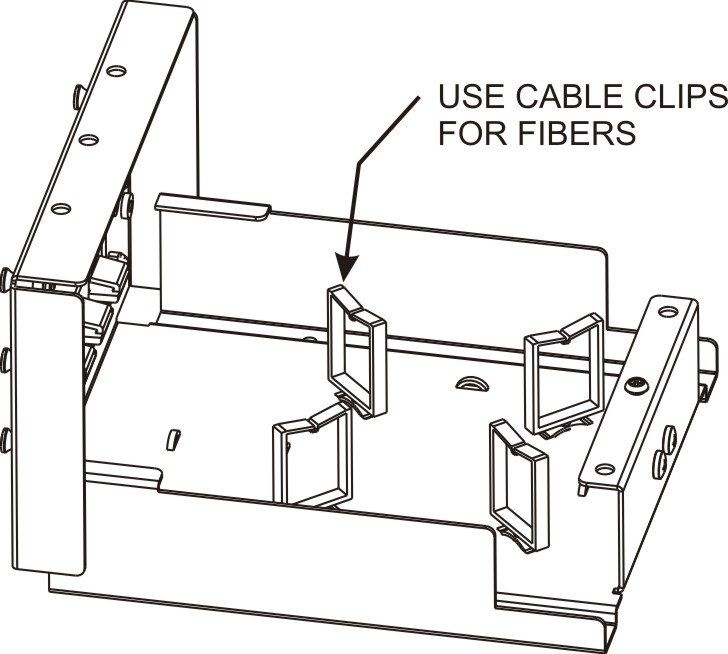

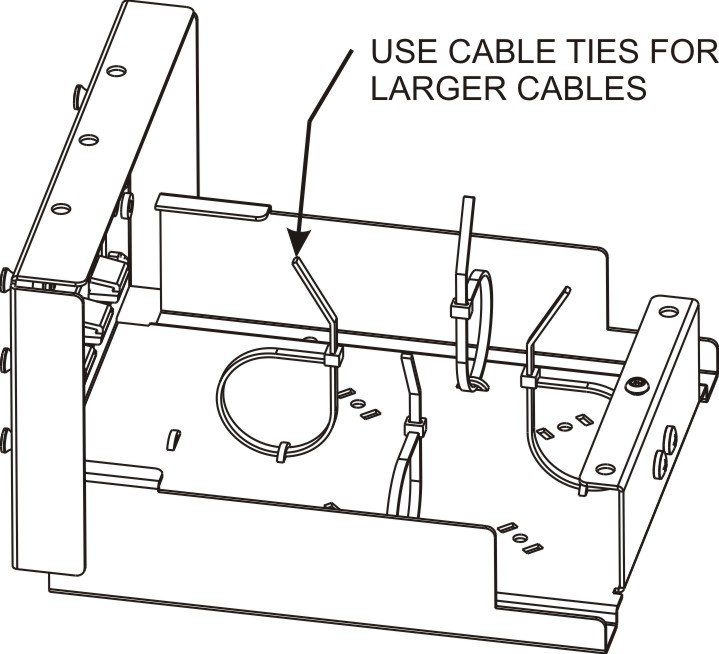

• Bottom cable management area can be configured for fiber clips or with cable ties.
• Refer to Technical Pub for additional ordering options.
• Custom assembled product can be defined.
LGX® is a registered trademark OFS FITEL, LLC

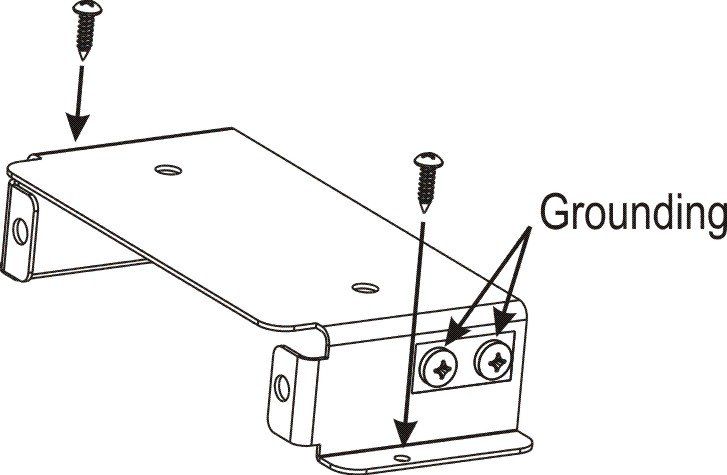

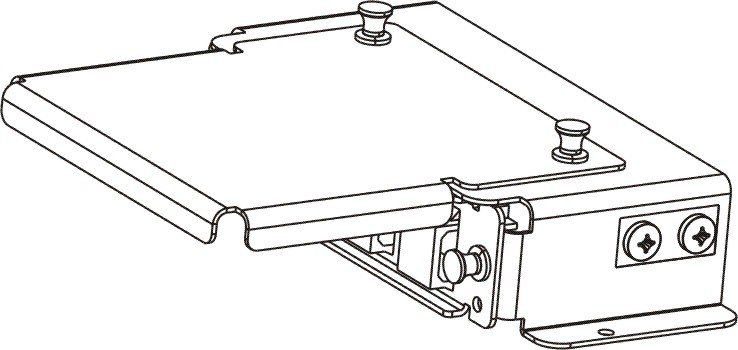

VLX-K01
VLX/LGX, 1-POSITION WITH KEYSTONE PANEL, WALL MOUNTING
• 1-position LGX™ or VLX panel wall mount assembly with VLX-100 plate and cover.
• Made of sturdy zinc plated steel and powder coated.
• Designed to use minimal wall space.
• Cover on front to protect connections
• Comes with 1 VLX-100 plate
• Can be wall mounted in various ways.
• Refer to Technical Pub for additional ordering options.
• Custom assembled product can be defined.
LGX® is a registered trademark OFS FITEL, LLC

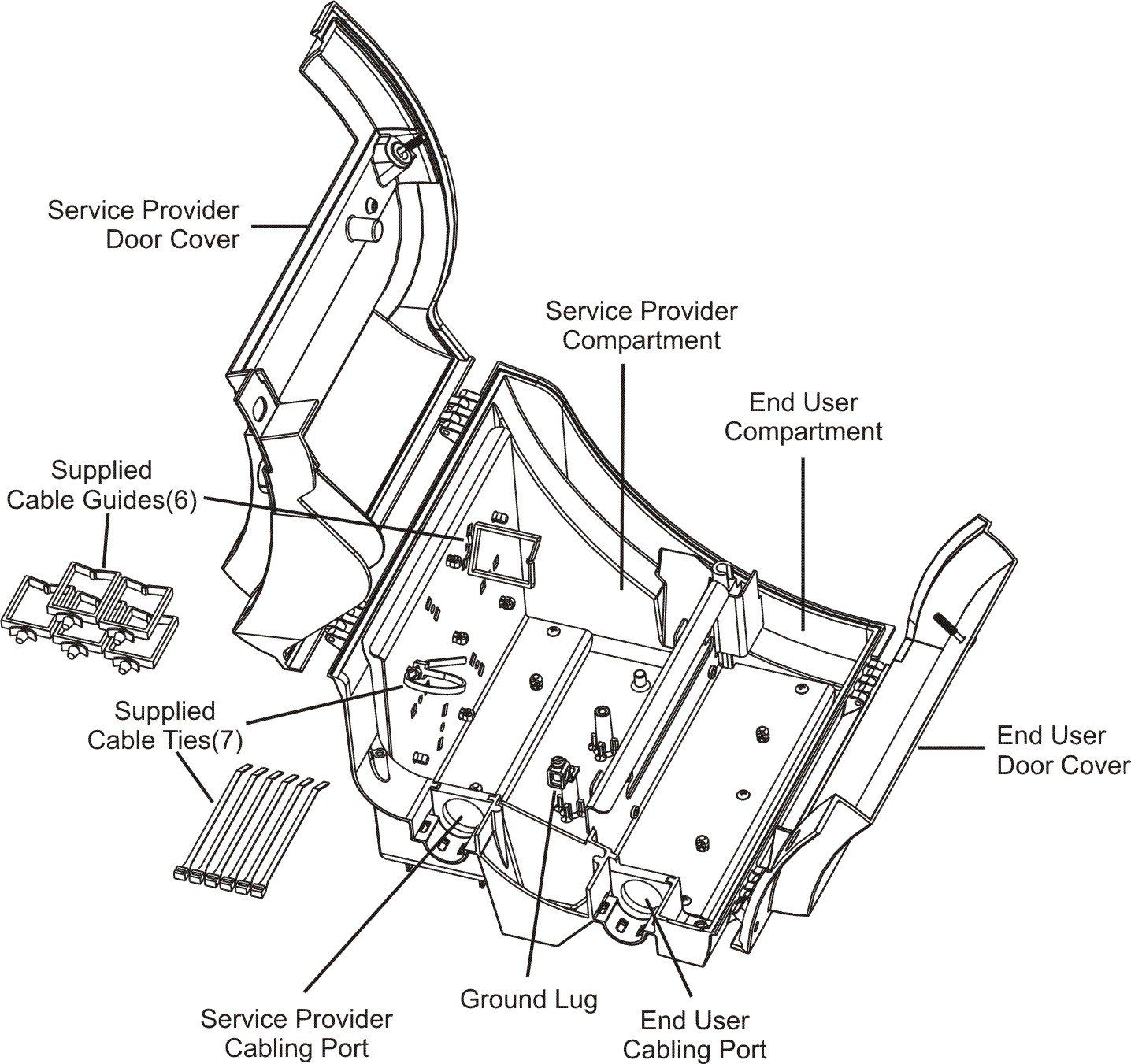

EM02-400

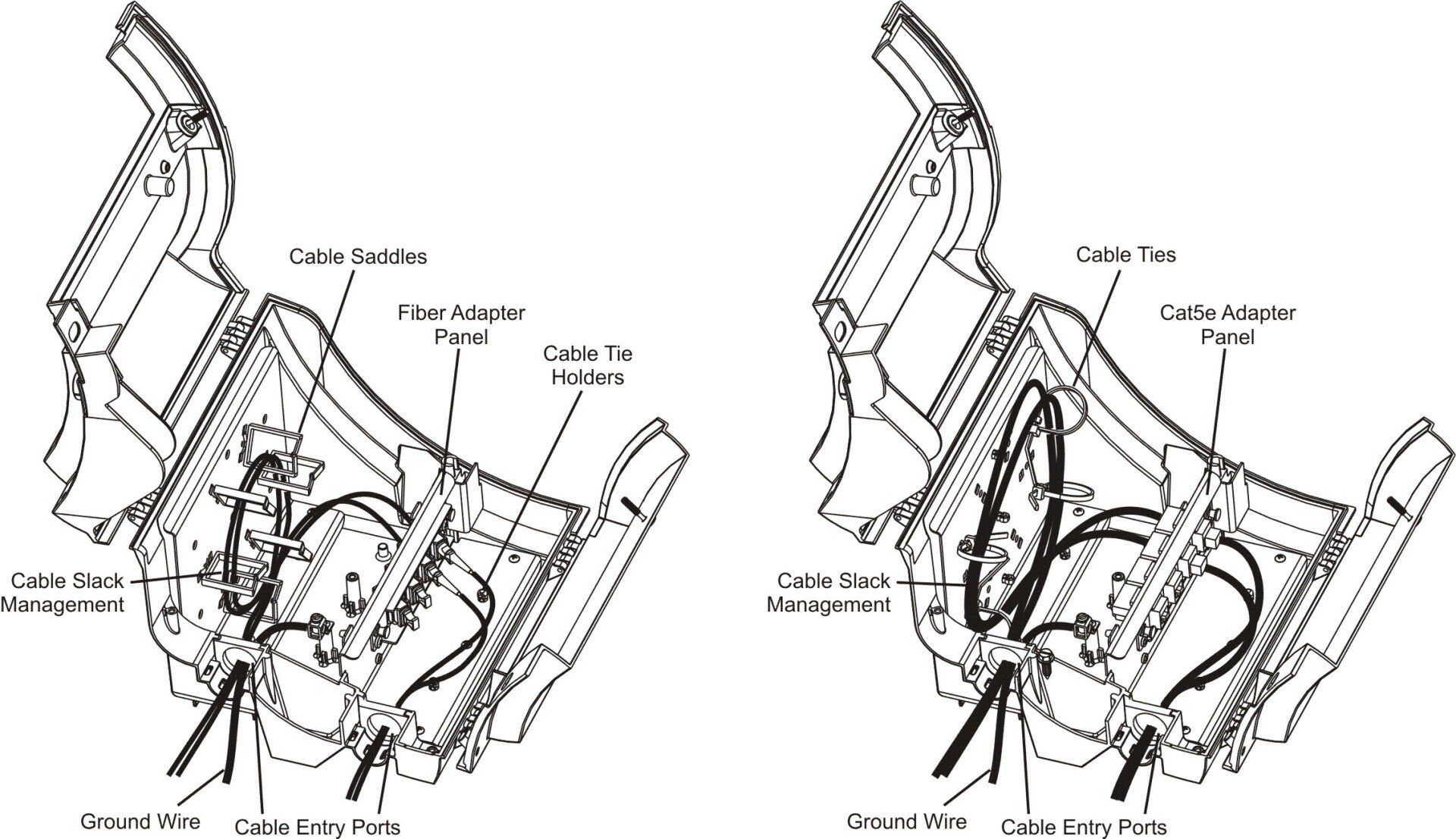

VLX/LGX, 1 POSITION OUTDOOR ENCLOSURE
• 1-position LGX™ or VLX panel outside environment enclosure.
• 1-position LGX™ or VLX panel outside environment enclosure.
• Made of painted cast aluminum.

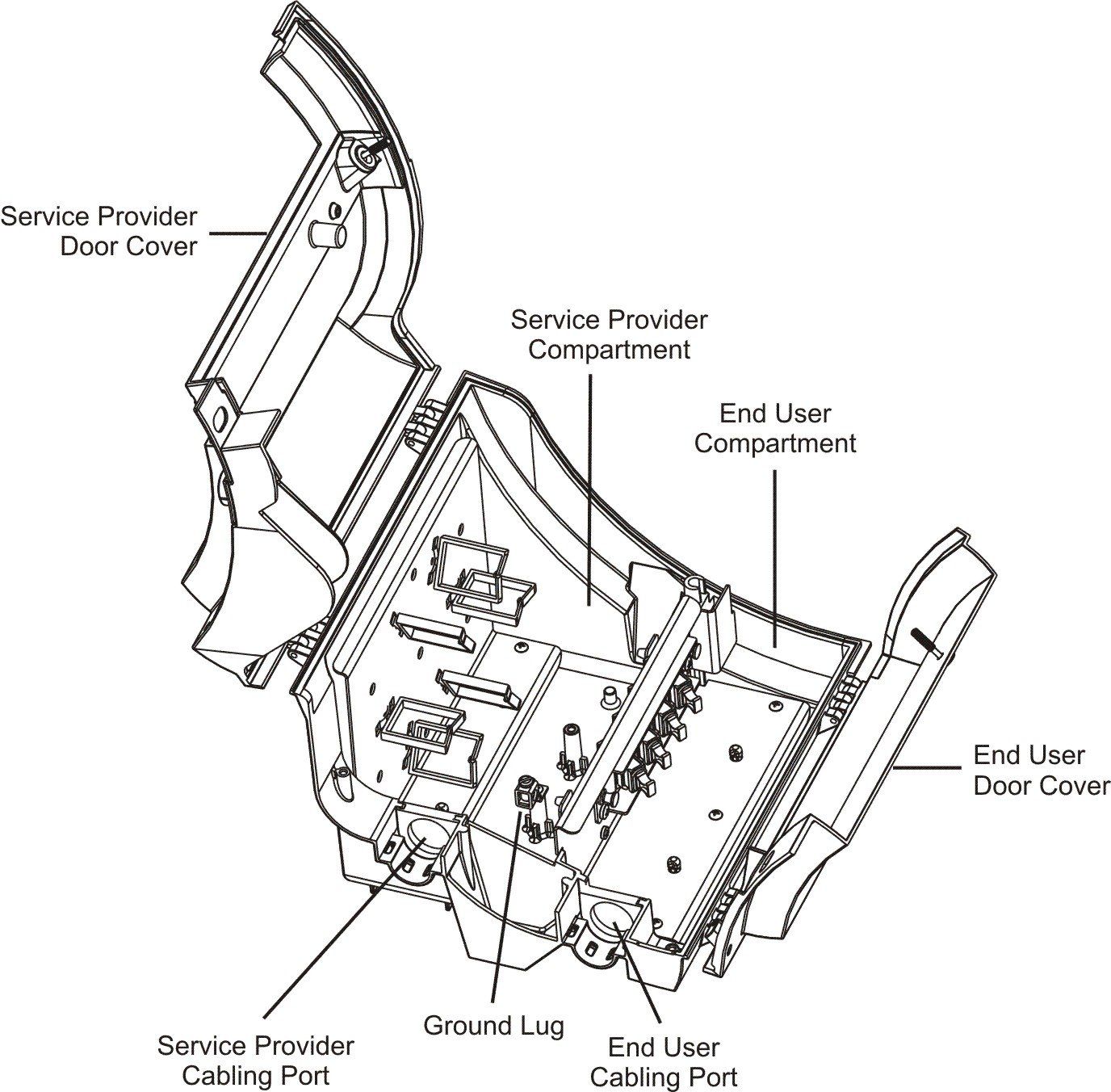

• Separate and secure compartments with access door for customer.
• Service provider compartment designed to support cables or fiber.
• Can be wall mounted or pole mounted using EM02-AC101 bracket.
• Refer to Technical Pub for additional ordering options.
LGX® is a registered trademark OFS FITEL, LLC

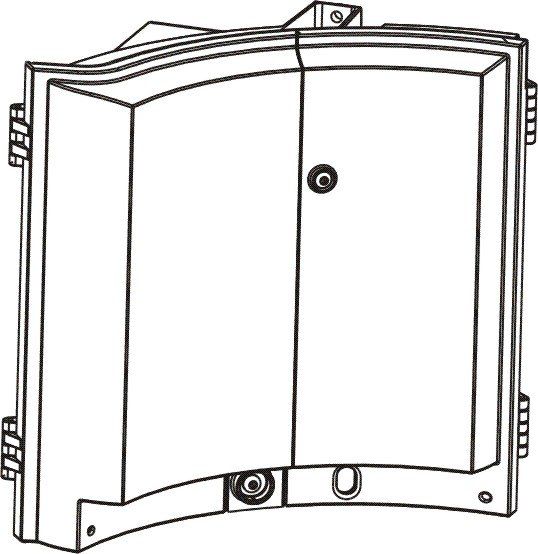

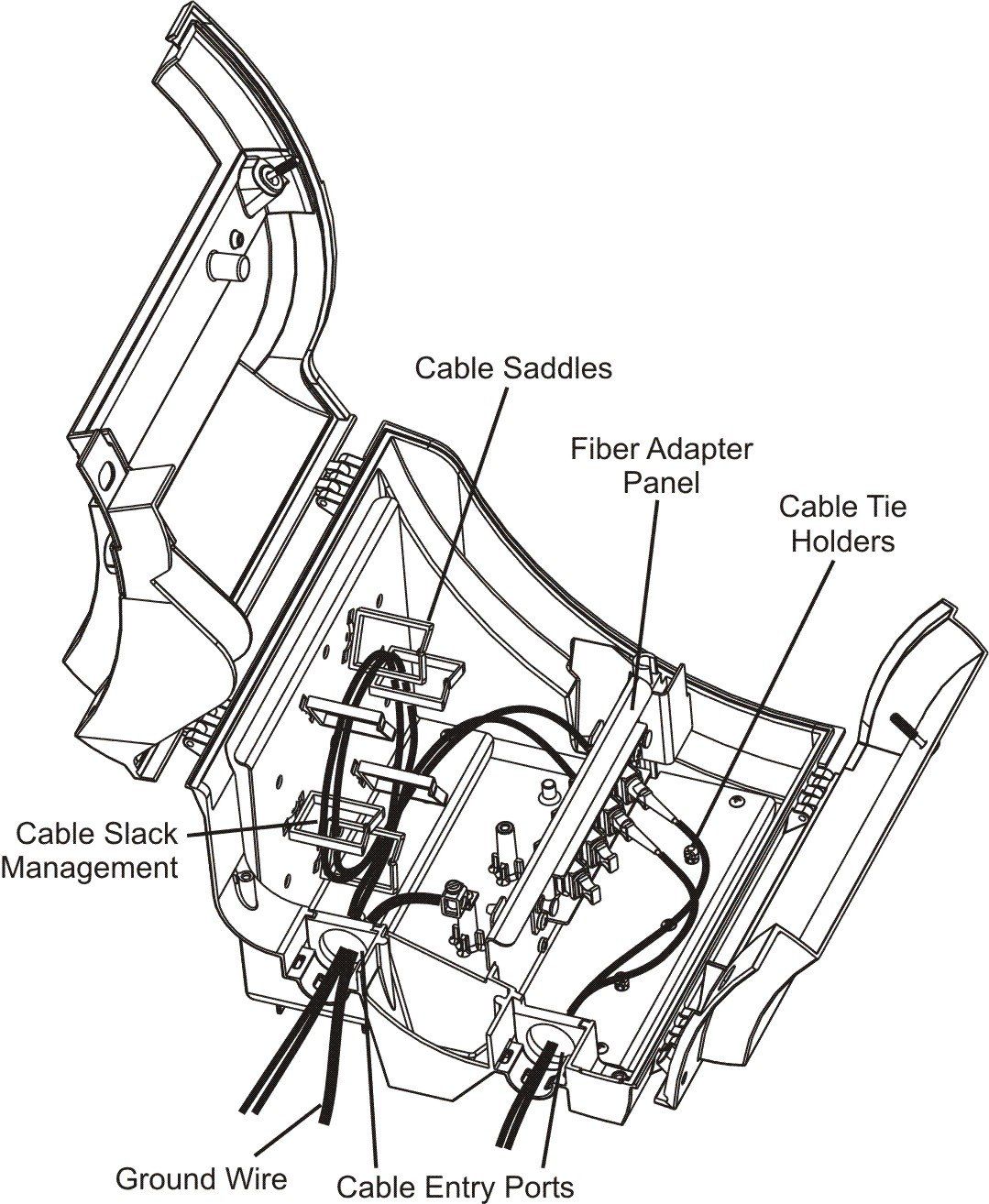

EM02-401
VLX/LGX, 1 POSITION OUTDOOR ENCLOSURE, PANEL WITH 4 FIBER COUPLERS
• 1-position LGX™ or VLX panel outside environment enclosure with VLX-101 panel.
• Made of painted cast aluminum.
• A VLX-101 panel with 4-fiber couplers installed.
• Separate and secure compartments with access door for customer.
• Service provider compartment designed to support cables or fiber.
• Can be wall mounted or pole mounted using EM02-AC101 bracket.
• Refer to Technical Pub for additional ordering options.
LGX® is a registered trademark OFS FITEL, LLC

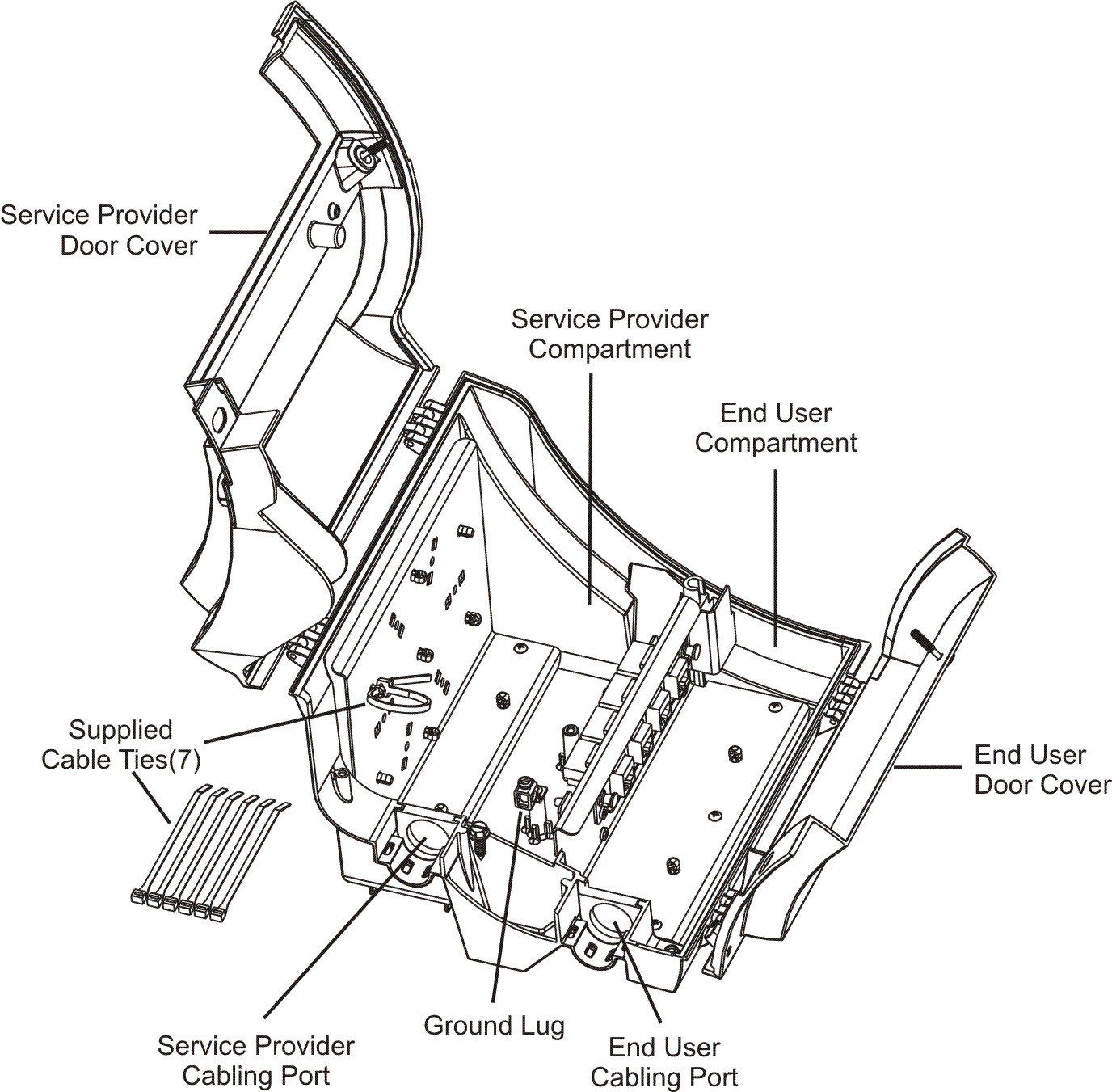

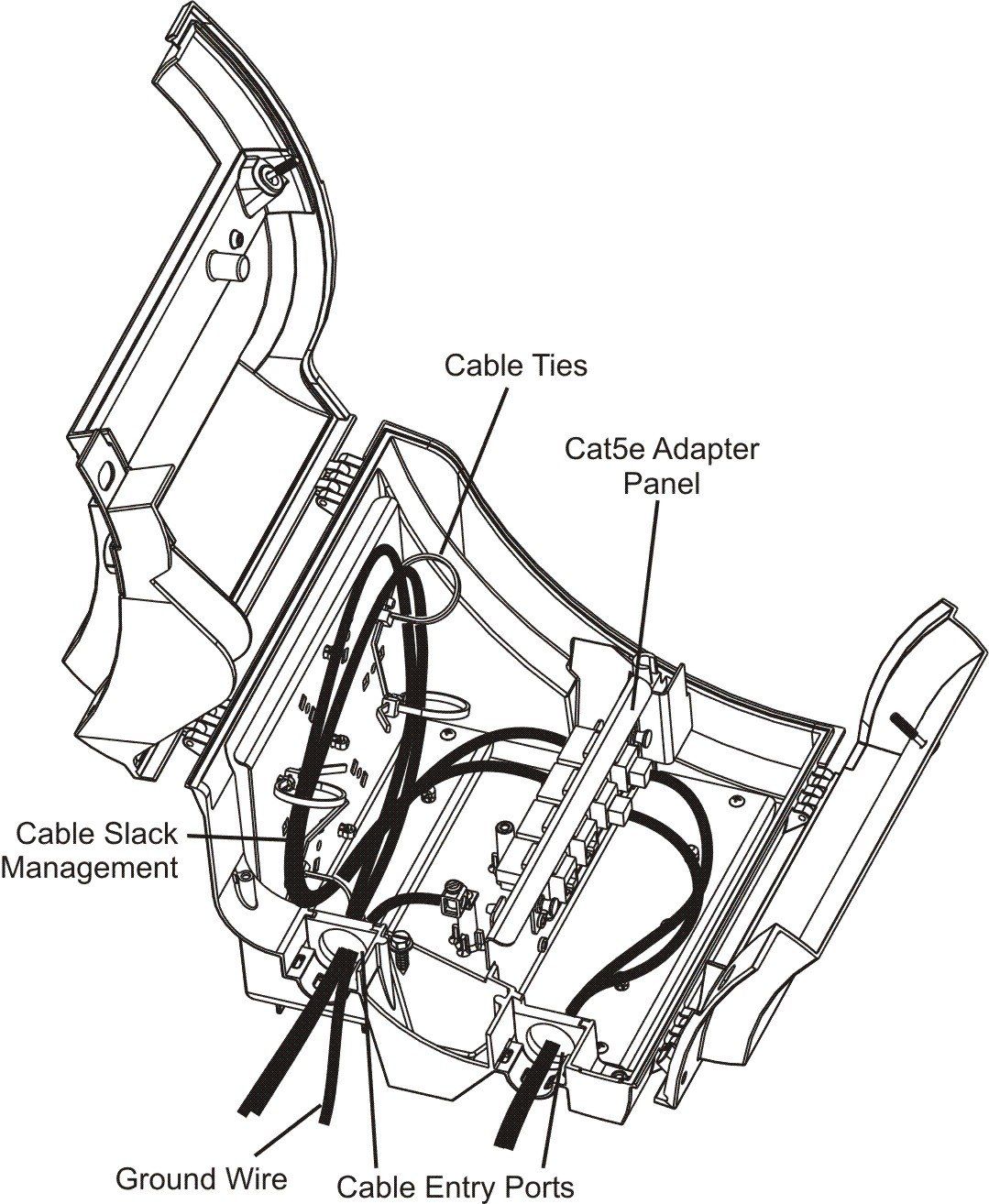

EM02-402
VLX/LGX, 1-POSITION OUTDOOR ENCLOSURE, PANEL WITH 4 CAT6 KEYSTONE COUPLERS
• 1-position LGX™ or VLX panel outside environment enclosure with VLX-102 panel.
• 1-position LGX™ or VLX panel outside environment enclosure with VLX-102 panel.
• Made of painted cast aluminum.
• A VLX-102 panel with 4 Cat6 Keystone couplers installed.
• Separate and secure compartments with access door for customer.
• Service provider compartment designed to support cables or fiber.
• Can be wall mounted or pole mounted using EM02-AC101 bracket.
• Refer to Technical Pub for additional ordering options.
LGX® is a registered trademark OFS FITEL, LLC
NAC is an ISO recognized company, a leader in quality, reliability, manufacturing and engineering.
